Indoor Optical Fiber Cables with Central Strength

Application
These optical fiber cables are designed to data transmission in ship and specially in cruise ship where low smoke, halogen free and flame retardant cables are required to increase safety on board, suitable for flexible installation on and below deck of commercial ships without constant exposure to oil, grease and other lubricants.

Standards
 IEC 60092-350/351/352/353/359/370/376
 IEC 60332-1-2
 IEC 60332-3-22
 IEC 60754-1/2
 IEC 61034

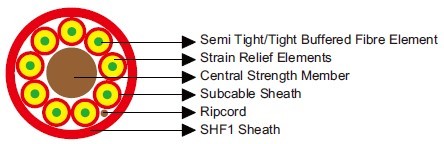

Construction
 Optical Fiber: Semi tight buffered or tight buffer.
 Strain Relief Elements: Aramid.
 Subcable Sheath: Halogen-free, flame-retardant compound.
 Central Strength Member
 Outer Sheath: SHF1.

Fiber Specification

		G50/125		G62.5/125		E9/125
Geometry/Mechanical Properties
Core Diameter	µm	50 ± 2.5		62.5 ± 3
Mode Field Diameter (at 1310 nm)	µm					9.2 ± 0.4
Cladding Diameter	µm	125 ± 2		125 ± 1		125 ± 2
Coating Diameter	µm	245 ± 10		245 ± 5		245 ± 10
Core Non-circularity	%	< 5		< 5
Cladding Non-circularity	%	< 1		< 1		< 1
Core/Clad Concentricity Error	µm	< 1.5		< 1.5		< 0.8
Eccentricity of Coating	µm	< 10		< 10		< 10
Screen Test		≥100 kpsi		≥100 kpsi		≥100 kpsi
Transmission Properties		OM2		OM1		OS1
Wavelength	nm	850	1300	850	1300	1310	1550
Attenuation Max.	dB/km	2.7	0.8	3.2	0.9	0.36	0.22
Bandwidth Min.	MHz. km	500	1000	250	600
Effective Group of Refraction		1.483	1.478	1.497	1.493	1.4695	1.4701
Numerical Aperture		0.200 ± 0.015		0.275 ± 0.015
Dispersion Coefﬁcient Max.	ps/nm.km					3.5	18
Zero Dispersion Wavelength	nm						1300 –1322
Dispersion Slope	ps/nm² .km						≤0.092
Cutoff Wavelength (cabled)	nm						≤1250
Polarization Mode Dispersion	ps/km1/2						≤0.1

Mechanical and Thermal Properties
Bending Radius for Fixed Installations: 15×OD
Temperature Range: -5℃ ~ +70℃

Dimensions and Weight

Part No.	No. of Optical Fibers	Nominal Overall Diameter mm	Nominal Weight kg/km
MLN-MTA-X-2-H-F-H-CD/VT-A	2	7.5	45
MLN-MTA-X-4-H-F-H-CD/VT-A	4	7.5	50
MLN-MTA-X-6-H-F-H-CD/VT-A	6	9.0	75
MLN-MTA-X-8-H-F-H-CD/VT-A	8	11.0	110
MLN-MTA-X-10-H-F-H-CD/VT-A	10	13.0	160
MLN-MTA-X-12-H-F-H-CD/VT-A	12	14.5	182
MLN-MTB-X-16-H-F-H-CD/VT-A	16	14.0	160
MLN-MTB-X-18-H-F-H-CD/VT-A	18	14.5	175
MLN-MTB-X-20-H-F-H-CD/VT-A	20	16.0	225
MLN-MTB-X-24-H-F-H-CD/VT-A	24	17.5	245
MLN-MTB-X-26-H-F-H-CD/VT-A	26	18.0	260

Note: X: Fiber type (0=Fiber and copper conductors in cable 4=50/125 multi-mode fiber (OM3); 5=50/125 multi-mode fiber (OM2); 6=50/125 multi-mode fiber (OM1); 7=NZDS SM fiber per G.656.; 8=NZDS SM fiber per G.655.; 9=Standard SM fiber per G.652.D)
