Cat 6 U/FTP 23AWG
Application
These Cat6 U/FTP cables are manufactured in accordance with IEC 61156-5 requirements,
can support all Class E applications like Ethernet, Fast Ethernet, Gigabit Ethernet, suitable for
basic voice and data installations up to 250MHz.
Standards
EN 50288
ISO 11801
IEC 61156-5
IEC 60332-1
IEC 60754-1/2
IEC 61034

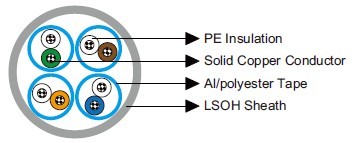

Construction
Conductors: Solid bare copper conductor.
Insulation: PE.
Twinning: Two coloured insulated conductors twisted together to form a pair.
Individual Screen: Al/polyester tape.
Outer Sheath: LSOH.
Core Identification
Pair 1: White, Blue
Pair 2: White, Orange
Pair 3: White, Green
Pair 4: White, Brown
Electrical Properties
Maximum Loop Resistance |
Ω/km |
145 |
Maximum Resistance Unbalance |
|
2% |
Minimum Insulation Resistance |
MΩ.km |
1000 |
Nominal Capacitance @800Hz |
nF/km |
45 |
Maximum Capacitance Unbalance (pair to ground) |
pF/km |
800 |
Characteristic Impedance @1-100MHz |
Ω |
100 ± 5 |
Nominal Velocity of Propagation |
|
0.75c |
Maximum Propagation Delay |
ns/100 m |
500 |
Maximum Delay Skew |
ns/100 m |
20 |
Maximum Transfer Impedance @1MHz |
mΩ /m |
50 |
Maximum Transfer Impedance @10MHz |
mΩ /m |
100 |
Maximum Transfer Impedance @30MHz |
mΩ /m |
200 |
Minimum Coupling Attenuation |
dB |
55 |
Nominal Transmission Characteristics @20℃
F |
Attenuation |
NEXT |
PS-NEXT |
ACR |
PS-ACR |
ELFEXT |
PS-ELFEXT |
Return Loss |
MHz |
dB/100m |
dB |
dB |
dB/100m |
dB/100m |
dB/100m |
dB/100m |
dB |
1 |
2.0 |
90 |
87 |
88 |
85 |
85 |
82 |
|
4 |
3.6 |
90 |
87 |
86 |
83 |
85 |
82 |
27 |
10 |
5.7 |
90 |
87 |
84 |
81 |
79 |
76 |
30 |
16 |
7.2 |
90 |
87 |
83 |
80 |
75 |
72 |
30 |
20 |
8.1 |
90 |
87 |
82 |
79 |
73 |
70 |
30 |
31.25 |
10.2 |
90 |
87 |
80 |
77 |
69 |
66 |
30 |
62.50 |
14.7 |
90 |
87 |
75 |
72 |
63 |
60 |
30 |
100 |
18.9 |
90 |
87 |
71 |
68 |
59 |
56 |
30 |
155 |
24.0 |
88 |
85 |
64 |
61 |
55 |
52 |
26 |
200 |
27.0 |
88 |
85 |
61 |
58 |
53 |
50 |
25 |
250 |
31.4 |
86 |
83 |
55 |
52 |
51 |
48 |
25 |
300 |
34.8 |
86 |
83 |
51 |
48 |
49 |
46 |
23 |
400 |
38.1 |
86 |
83 |
48 |
45 |
44 |
41 |
23 |
Mechanical and Thermal Properties
Bending Radius: 8×OD (during installation); 4×OD (fixed installed)
Temperature Range: -20℃ ~ +60℃
Dimensions and Weight
Part No. |
Construction
No. of elements×No. of cores in element×Cross
section(mm²) |
Nominal Insulation Thickness mm |
Nominal Sheath Thickness mm |
Nominal Overall
Diameter mm |
Nominal Weight kg/km |
MLN-U/FTPCAT64P23 |
4×2×23AWG |
0.23 |
0.63 |
7.5 |
61 |
|
