Applications :
- These cables are fire resistant, flame retardant, low smoke, halogen free and mud resistant, used for instrumentation, communication, control and alarm systems.
Standards :
-
IEC 60092-376 |
IEC 60092-351 |
IEC 60092-359 |
IEC 60332-1 |
IEC 60332-3-22 |
IEC 60754-1,2 |
IEC 61034-1,2 |
NEK 606:2004 |
IEC 60331-21 |
|

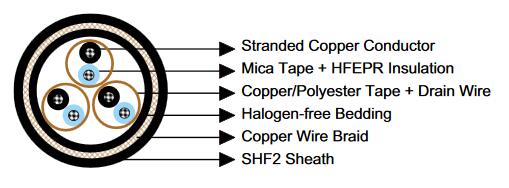

Construction :
- Conductors : Circular tinned annealed stranded copper wire to IEC 60228 class 2.
- Insulation : Mica tape + Halogen free EPR compound.
- Twinning : Colour coded cores twisted together.
- Collective Shielding : Pairs/triples are layed up and collectively screened by copper backed polyester tape in contact with a stranded tinned copper drain wire. Pairs/triples are numbered with numbered tape or by numbers printed directly on the insulated conductors.
- Bedding : Halogen free compound.
- Armour : Tinned copper wire braid.
- Outer Sheath : Halogen free thermosetting compound, SHF2 (for TYPE S4). Halogen free MUD resistant thermosetting compound, SHF MUD (for TYPE S4/S8), coloured grey (blue for intrinsically safe).
Electrical Characteristics :
-
Nominal Cross Section Area |
mm² |
0.75 |
1.0 |
1.5 |
2.5 |
Nominal Conductor Diameter |
mm |
1.1 |
1.3 |
1.6 |
2.0 |
Maximum Resistant@20℃ |
Ω/km |
26.3 |
19.3 |
12.9 |
8.02 |
Mutual Capacitance |
nF/km |
75 |
80 |
85 |
95 |
Nominal Inductance@1KHz |
MH/km |
0.727 |
0.686 |
0.667 |
0.623 |
Maximum L/R@1KHz |
μH/Ω |
20 |
25 |
35 |
55 |
Operating Voltage |
V |
250 |
250 |
250 |
250 |
Mechanical and Thermal Properties :
- Bending Radius : 8×OD (during installation); 6×OD (fixed installed).
- Temperature Range : -20℃ ~ +90℃.
Dimensions and Weight :
Construction No. of elements×No. of cores in element×Cross section
(mm²) |
Nominal Insulation Thickness
mm |
Nominal Sheath Thickness
mm |
Nominal Overall Diameter
mm |
Nominal Weight
kg/km |
Inner |
Outer |
1×2×0.75 |
0.6 |
1.1 |
1.2 |
12.1 |
230 |
2×2×0.75 |
0.6 |
1.1 |
1.3 |
16.4 |
340 |
3×2×0.75 |
0.6 |
1.1 |
1.4 |
17.2 |
495 |
4×2×0.75 |
0.6 |
1.1 |
1.4 |
18.2 |
555 |
5×2×0.75 |
0.6 |
1.1 |
1.5 |
19.8 |
640 |
6×2×0.75 |
0.6 |
1.1 |
1.5 |
21.2 |
725 |
7×2×0.75 |
0.6 |
1.1 |
1.5 |
21.2 |
740 |
8×2×0.75 |
0.6 |
1.1 |
1.6 |
23.1 |
805 |
9×2×0.75 |
0.6 |
1.1 |
1.6 |
24.3 |
880 |
10×2×0.75 |
0.6 |
1.1 |
1.7 |
25.6 |
900 |
12×2×0.75 |
0.6 |
1.1 |
1.7 |
26.2 |
950 |
14×2×0.75 |
0.6 |
1.1 |
1.7 |
27.3 |
1035 |
15×2×0.75 |
0.6 |
1.1 |
1.8 |
29.2 |
1130 |
16×2×0.75 |
0.6 |
1.1 |
1.8 |
29.7 |
1175 |
18×2×0.75 |
0.6 |
1.1 |
1.9 |
31.3 |
1275 |
19×2×0.75 |
0.6 |
1.1 |
1.9 |
31.6 |
1315 |
20×2×0.75 |
0.6 |
1.2 |
2.0 |
33.3 |
1475 |
21×2×0.75 |
0.6 |
1.2 |
2.0 |
34.1 |
1530 |
23×2×0.75 |
0.6 |
1.2 |
2.0 |
34.6 |
1635 |
24×2×0.75 |
0.6 |
1.2 |
2.1 |
36.8 |
1730 |
27×2×0.75 |
0.6 |
1.2 |
2.1 |
37.5 |
1850 |
30×2×0.75 |
0.6 |
1.2 |
2.2 |
38.9 |
1965 |
33×2×0.75 |
0.6 |
1.2 |
2.2 |
40.3 |
2155 |
37×2×0.75 |
0.6 |
1.2 |
2.3 |
41.7 |
2325 |
1×3×0.75 |
0.6 |
1.1 |
1.2 |
12.6 |
255 |
2×3×0.75 |
0.6 |
1.1 |
1.4 |
17.7 |
545 |
3×3×0.75 |
0.6 |
1.1 |
1.4 |
18.3 |
585 |
4×3×0.75 |
0.6 |
1.1 |
1.5 |
19.7 |
670 |
5×3×0.75 |
0.6 |
1.1 |
1.5 |
21.2 |
770 |
6×3×0.75 |
0.6 |
1.1 |
1.6 |
23.5 |
900 |
7×3×0.75 |
0.6 |
1.1 |
1.6 |
23.5 |
935 |
8×3×0.75 |
0.6 |
1.1 |
1.7 |
25.2 |
1015 |
9×3×0.75 |
0.6 |
1.1 |
1.7 |
26.7 |
1135 |
10×3×0.75 |
0.6 |
1.1 |
1.8 |
28.7 |
1140 |
12×3×0.75 |
0.6 |
1.1 |
1.8 |
29.6 |
1230 |
14×3×0.75 |
0.6 |
1.1 |
1.9 |
31.0 |
1375 |
15×3×0.75 |
0.6 |
1.1 |
1.9 |
31.9 |
1455 |
16×3×0.75 |
0.6 |
1.2 |
2.0 |
33.3 |
1545 |
18×3×0.75 |
0.6 |
1.2 |
2.0 |
34.8 |
1690 |
19×3×0.75 |
0.6 |
1.2 |
2.0 |
35.1 |
1750 |
20×3×0.75 |
0.6 |
1.2 |
2.1 |
36.6 |
1985 |
21×3×0.75 |
0.6 |
1.2 |
2.1 |
37.3 |
2055 |
23×3×0.75 |
0.6 |
1.2 |
2.2 |
38.8 |
2215 |
24×3×0.75 |
0.6 |
1.2 |
2.2 |
39.5 |
2245 |
27×3×0.75 |
0.6 |
1.2 |
2.3 |
41.5 |
2435 |
30×3×0.75 |
0.6 |
1.2 |
2.3 |
43.3 |
2645 |
32×3×0.75 |
0.6 |
1.4 |
2.4 |
44.9 |
2840 |
1×2×1.0 |
0.6 |
1.1 |
1.2 |
12.5 |
245 |
2×2×1.0 |
0.6 |
1.1 |
1.4 |
17.2 |
375 |
3×2×1.0 |
0.6 |
1.1 |
1.4 |
17.9 |
550 |
4×2×1.0 |
0.6 |
1.1 |
1.4 |
19.0 |
615 |
5×2×1.0 |
0.6 |
1.1 |
1.5 |
20.6 |
710 |
6×2×1.0 |
0.6 |
1.1 |
1.6 |
22.4 |
820 |
7×2×1.0 |
0.6 |
1.1 |
1.6 |
22.4 |
845 |
8×2×1.0 |
0.6 |
1.1 |
1.6 |
24.1 |
905 |
9×2×1.0 |
0.6 |
1.1 |
1.7 |
25.7 |
995 |
10×2×1.0 |
0.6 |
1.1 |
1.7 |
26.8 |
1035 |
12×2×1.0 |
0.6 |
1.1 |
1.7 |
27.4 |
1095 |
14×2×1.0 |
0.6 |
1.1 |
1.8 |
28.9 |
1195 |
15×2×1.0 |
0.6 |
1.1 |
1.9 |
30.9 |
1305 |
16×2×1.0 |
0.6 |
1.1 |
1.9 |
31.4 |
1355 |
18×2×1.0 |
0.6 |
1.2 |
2.0 |
33.4 |
1500 |
19×2×1.0 |
0.6 |
1.2 |
2.0 |
33.7 |
1550 |
20×2×1.0 |
0.6 |
1.2 |
2.0 |
35.0 |
1685 |
21×2×1.0 |
0.6 |
1.2 |
2.1 |
36.5 |
1850 |
23×2×1.0 |
0.6 |
1.2 |
2.1 |
37.0 |
1975 |
24×2×1.0 |
0.6 |
1.2 |
2.2 |
38.9 |
1990 |
27×2×1.0 |
0.6 |
1.2 |
2.2 |
39.6 |
2135 |
30×2×1.0 |
0.6 |
1.2 |
2.2 |
40.9 |
2300 |
33×2×1.0 |
0.6 |
1.2 |
2.3 |
42.5 |
2495 |
37×2×1.0 |
0.6 |
1.4 |
2.4 |
44.3 |
2735 |
1×3×1.0 |
0.6 |
1.1 |
1.2 |
13.0 |
280 |
2×3×1.0 |
0.6 |
1.1 |
1.4 |
18.0 |
550 |
3×3×1.0 |
0.6 |
1.1 |
1.4 |
18.7 |
600 |
4×3×1.0 |
0.6 |
1.1 |
1.5 |
20.0 |
690 |
5×3×1.0 |
0.6 |
1.1 |
1.6 |
22.4 |
880 |
6×3×1.0 |
0.6 |
1.1 |
1.6 |
24.6 |
1020 |
7×3×1.0 |
0.6 |
1.1 |
1.6 |
24.6 |
1060 |
8×3×1.0 |
0.6 |
1.1 |
1.7 |
26.4 |
1150 |
9×3×1.0 |
0.6 |
1.1 |
1.8 |
28.2 |
1305 |
10×3×1.0 |
0.6 |
1.1 |
1.8 |
30.2 |
1290 |
12×3×1.0 |
0.6 |
1.1 |
1.9 |
31.3 |
1435 |
14×3×1.0 |
0.6 |
1.2 |
1.9 |
32.9 |
1605 |
15×3×1.0 |
0.6 |
1.2 |
2.0 |
34.0 |
1720 |
16×3×1.0 |
0.6 |
1.2 |
2.0 |
35.0 |
1765 |
18×3×1.0 |
0.6 |
1.2 |
2.1 |
37.2 |
2050 |
19×3×1.0 |
0.6 |
1.2 |
2.1 |
37.5 |
2120 |
20×3×1.0 |
0.6 |
1.2 |
2.2 |
38.7 |
2300 |
21×3×1.0 |
0.6 |
1.2 |
2.2 |
39.4 |
2380 |
23×3×1.0 |
0.6 |
1.2 |
2.2 |
40.8 |
2515 |
24×3×1.0 |
0.6 |
1.2 |
2.3 |
41.7 |
2575 |
27×3×1.0 |
0.6 |
1.2 |
2.3 |
43.7 |
2815 |
30×3×1.0 |
0.6 |
1.4 |
2.4 |
46.1 |
3125 |
32×3×1.0 |
0.6 |
1.4 |
2.5 |
47.5 |
3310 |
1×2×1.5 |
0.7 |
1.1 |
1.3 |
14.3 |
335 |
2×2×1.5 |
0.7 |
1.1 |
1.5 |
20.5 |
740 |
3×2×1.5 |
0.7 |
1.1 |
1.5 |
21.2 |
805 |
4×2×1.5 |
0.7 |
1.1 |
1.6 |
22.9 |
945 |
5×2×1.5 |
0.7 |
1.1 |
1.6 |
24.8 |
1095 |
6×2×1.5 |
0.7 |
1.1 |
1.8 |
27.8 |
1300 |
7×2×1.5 |
0.7 |
1.1 |
1.8 |
27.8 |
1355 |
8×2×1.5 |
0.7 |
1.1 |
1.8 |
29.6 |
1455 |
9×2×1.5 |
0.7 |
1.1 |
1.9 |
31.7 |
1660 |
10×2×1.5 |
0.7 |
1.1 |
2.0 |
34.4 |
1680 |
12×2×1.5 |
0.7 |
1.1 |
2.0 |
35.5 |
1855 |
14×2×1.5 |
0.7 |
1.2 |
2.1 |
37.6 |
2150 |
15×2×1.5 |
0.7 |
1.2 |
2.2 |
38.9 |
2300 |
16×2×1.5 |
0.7 |
1.2 |
2.2 |
40.0 |
2415 |
18×2×1.5 |
0.7 |
1.2 |
2.3 |
42.0 |
2630 |
19×2×1.5 |
0.7 |
1.2 |
2.3 |
42.4 |
2725 |
20×2×1.5 |
0.7 |
1.2 |
2.3 |
43.5 |
2940 |
21×2×1.5 |
0.7 |
1.2 |
2.4 |
44.9 |
3110 |
23×2×1.5 |
0.7 |
1.2 |
2.5 |
46.7 |
3400 |
24×2×1.5 |
0.7 |
1.2 |
2.5 |
47.5 |
3360 |
27×2×1.5 |
0.7 |
1.4 |
2.6 |
50.0 |
3710 |
30×2×1.5 |
0.7 |
1.4 |
2.7 |
52.3 |
4060 |
32×2×1.5 |
0.7 |
1.4 |
2.7 |
53.8 |
4285 |
33×2×1.5 |
0.7 |
1.4 |
2.5 |
48.5 |
3245 |
37×2×1.5 |
0.7 |
1.4 |
2.6 |
50.2 |
3515 |
1×3×1.5 |
0.7 |
1.1 |
1.3 |
14.3 |
335 |
2×3×1.5 |
0.7 |
1.1 |
1.5 |
20.5 |
740 |
3×3×1.5 |
0.7 |
1.1 |
1.5 |
21.2 |
805 |
4×3×1.5 |
0.7 |
1.1 |
1.6 |
22.9 |
945 |
5×3×1.5 |
0.7 |
1.1 |
1.6 |
24.8 |
1095 |
6×3×1.5 |
0.7 |
1.1 |
1.8 |
27.8 |
1300 |
7×3×1.5 |
0.7 |
1.1 |
1.8 |
27.8 |
1355 |
8×3×1.5 |
0.7 |
1.1 |
1.8 |
29.6 |
1455 |
9×3×1.5 |
0.7 |
1.1 |
1.9 |
31.7 |
1660 |
10×3×1.5 |
0.7 |
1.2 |
2.0 |
34.4 |
1680 |
12×3×1.5 |
0.7 |
1.2 |
2.0 |
35.5 |
1855 |
14×3×1.5 |
0.7 |
1.2 |
2.1 |
37.6 |
2150 |
15×3×1.5 |
0.7 |
1.2 |
2.2 |
38.9 |
2300 |
16×3×1.5 |
0.7 |
1.2 |
2.2 |
40.0 |
2405 |
18×3×1.5 |
0.7 |
1.2 |
2.3 |
42.0 |
2630 |
19×3×1.5 |
0.7 |
1.2 |
2.3 |
42.4 |
2710 |
20×3×1.5 |
0.7 |
1.2 |
2.3 |
43.5 |
2940 |
21×3×1.5 |
0.7 |
1.4 |
2.4 |
44.9 |
3110 |
23×3×1.5 |
0.7 |
1.4 |
2.5 |
46.7 |
3400 |
24×3×1.5 |
0.7 |
1.4 |
2.5 |
47.5 |
3430 |
27×3×1.5 |
0.7 |
1.4 |
2.6 |
50.0 |
3710 |
30×3×1.5 |
0.7 |
1.4 |
2.7 |
52.3 |
4060 |
32×3×1.5 |
0.7 |
1.4 |
2.7 |
53.8 |
4285 |
1×2×2.5 |
0.7 |
1.1 |
1.3 |
14.5 |
335 |
2×2×2.5 |
0.7 |
1.1 |
1.5 |
20.4 |
740 |
3×2×2.5 |
0.7 |
1.1 |
1.5 |
21.3 |
800 |
4×2×2.5 |
0.7 |
1.1 |
1.6 |
22.8 |
930 |
5×2×2.5 |
0.7 |
1.1 |
1.6 |
24.7 |
1075 |
6×2×2.5 |
0.7 |
1.1 |
1.7 |
26.9 |
1245 |
7×2×2.5 |
0.7 |
1.1 |
1.7 |
26.9 |
1290 |
8×2×2.5 |
0.7 |
1.1 |
1.8 |
29.3 |
1405 |
9×2×2.5 |
0.7 |
1.1 |
1.9 |
31.3 |
1585 |
10×2×2.5 |
0.7 |
1.2 |
2.0 |
33.2 |
1605 |
12×2×2.5 |
0.7 |
1.2 |
2.0 |
34.0 |
1745 |
14×2×2.5 |
0.7 |
1.2 |
2.0 |
35.6 |
1920 |
15×2×2.5 |
0.7 |
1.2 |
2.2 |
38.8 |
2205 |
16×2×2.5 |
0.7 |
1.2 |
2.2 |
39.4 |
2230 |
18×2×2.5 |
0.7 |
1.2 |
2.3 |
41.5 |
2500 |
19×2×2.5 |
0.7 |
1.2 |
2.3 |
41.9 |
2590 |
20×2×2.5 |
0.7 |
1.2 |
2.3 |
43.5 |
2815 |
21×2×2.5 |
0.7 |
1.4 |
2.4 |
45.2 |
2990 |
23×2×2.5 |
0.7 |
1.4 |
2.4 |
45.8 |
3215 |
24×2×2.5 |
0.7 |
1.4 |
2.5 |
48.2 |
3270 |
27×2×2.5 |
0.7 |
1.4 |
2.6 |
49.4 |
3515 |
30×2×2.5 |
0.7 |
1.4 |
2.6 |
51.0 |
3810 |
33×2×2.5 |
0.7 |
1.4 |
2.7 |
53.1 |
4145 |
37×2×2.5 |
0.7 |
1.4 |
2.8 |
54.9 |
4500 |
1×3×2.5 |
0.7 |
1.1 |
1.3 |
15.1 |
385 |
2×3×2.5 |
0.7 |
1.1 |
1.5 |
22.0 |
880 |
3×3×2.5 |
0.7 |
1.1 |
1.6 |
23.0 |
990 |
4×3×2.5 |
0.7 |
1.1 |
1.6 |
24.6 |
1150 |
5×3×2.5 |
0.7 |
1.1 |
1.7 |
26.9 |
1350 |
6×3×2.5 |
0.7 |
1.1 |
1.8 |
30.0 |
1595 |
7×3×2.5 |
0.7 |
1.1 |
1.8 |
30.0 |
1670 |
8×3×2.5 |
0.7 |
1.1 |
1.9 |
32.2 |
1820 |
9×3×2.5 |
0.7 |
1.2 |
2.0 |
34.8 |
2105 |
10×3×2.5 |
0.7 |
1.2 |
2.1 |
37.9 |
2190 |
12×3×2.5 |
0.7 |
1.2 |
2.2 |
39.2 |
2455 |
14×3×2.5 |
0.7 |
1.2 |
2.2 |
40.9 |
2715 |
15×3×2.5 |
0.7 |
1.2 |
2.3 |
42.3 |
2905 |
16×3×2.5 |
0.7 |
1.2 |
2.3 |
43.5 |
3060 |
18×3×2.5 |
0.7 |
1.4 |
2.4 |
46.1 |
3380 |
19×3×2.5 |
0.7 |
1.4 |
2.5 |
46.7 |
3530 |
20×3×2.5 |
0.7 |
1.4 |
2.5 |
47.9 |
3800 |
21×3×2.5 |
0.7 |
1.4 |
2.5 |
48.9 |
3950 |
23×3×2.5 |
0.7 |
1.4 |
2.6 |
50.9 |
4290 |
24×3×2.5 |
0.7 |
1.4 |
2.6 |
51.8 |
4325 |
27×3×2.5 |
0.7 |
1.4 |
2.7 |
54.5 |
4745 |
30×3×2.5 |
0.7 |
1.6 |
2.9 |
57.7 |
5300 |
32×3×2.5 |
0.7 |
1.6 |
2.9 |
59.3 |
5595 |
|
