Applications :
- These cables are flame retardant, low smoke, halogen free and mud resistant, used for instrumentation, communication,control and alarm systems.
Standards :
-
IEC 60092-376 |
IEC 60092-351 |
IEC 60092-359 |
IEC 60332-1 |
IEC 60332-3-22 |
IEC 60754-1,2 |
IEC 61034-1,2 |
NEK 606:2004 |

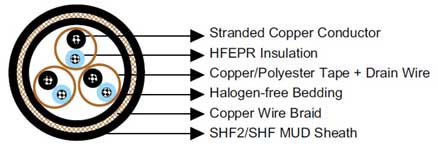

Construction :
- Conductors : Circular tinned annealed stranded copper wire to IEC 60228 class 2.
- Insulation : Halogen free EPR compound.
- Twinning : Colour coded cores twisted together.
- Collective Shielding : Pairs/triples are layed up and collectively screened by copper backed polyester tape in contact with a stranded tinned copper drain wire. Pairs/triples are numbered with numbered tape or by numbers printed directly on the insulated conductors.
- Bedding : Halogen free compound.
- Armour : Tinned copper wire braid.
- Outer Sheath : Halogen free thermosetting compound, SHF2 (for TYPE S2). Halogen free MUD resistant thermosetting compound, SHF MUD (for TYPE S2/S6), coloured grey (blue for intrinsically safe).
Electrical Characteristics :
-
Nominal Cross Section Area |
mm² |
0.75 |
1.0 |
1.5 |
2.5 |
Nominal Conductor Diameter |
mm |
1.1 |
1.3 |
1.6 |
2.0 |
Maximum Resistant@20℃ |
Ω/km |
26.3 |
19.3 |
12.9 |
8.02 |
Mutual Capacitance |
nF/km |
80 |
90 |
100 |
110 |
Nominal Inductance@1KHz |
MH/km |
0.682 |
0.645 |
0.632 |
0.593 |
Maximum L/R@1KHz |
μH/Ω |
20 |
25 |
35 |
50 |
Operating Voltage |
V |
250 |
250 |
250 |
250 |
Mechanical and Thermal Properties :
- Bending Radius : 8×OD (during installation); 6×OD (fixed installed).
- Temperature Range : -20℃ ~ +90℃.
Dimensions and Weight :
Construction No. of elements×No. of cores in element×Cross section
(mm²) |
Nominal Insulation Thickness
mm |
Nominal Sheath Thickness
mm |
Nominal Overall Diameter
mm |
Nominal Weight
kg/km |
Inner |
Outer |
1×2×0.75 |
0.6 |
1.1 |
1.1 |
11.1 |
200 |
2×2×0.75 |
0.6 |
1.1 |
1.3 |
15.0 |
295 |
3×2×0.75 |
0.6 |
1.1 |
1.3 |
15.6 |
355 |
4×2×0.75 |
0.6 |
1.1 |
1.3 |
16.4 |
390 |
5×2×0.75 |
0.6 |
1.1 |
1.4 |
17.8 |
540 |
6×2×0.75 |
0.6 |
1.1 |
1.4 |
19.1 |
610 |
7×2×0.75 |
0.6 |
1.1 |
1.4 |
19.1 |
625 |
8×2×0.75 |
0.6 |
1.1 |
1.5 |
20.7 |
680 |
9×2×0.75 |
0.6 |
1.1 |
1.5 |
21.8 |
745 |
10×2×0.75 |
0.6 |
1.1 |
1.6 |
22.9 |
760 |
12×2×0.75 |
0.6 |
1.1 |
1.6 |
23.4 |
810 |
14×2×0.75 |
0.6 |
1.1 |
1.6 |
24.5 |
875 |
15×2×0.75 |
0.6 |
1.1 |
1.7 |
26.1 |
960 |
16×2×0.75 |
0.6 |
1.1 |
1.7 |
26.5 |
1010 |
18×2×0.75 |
0.6 |
1.1 |
1.8 |
27.9 |
1080 |
19×2×0.75 |
0.6 |
1.1 |
1.8 |
28.2 |
1115 |
20×2×0.75 |
0.6 |
1.1 |
1.8 |
29.2 |
1210 |
21×2×0.75 |
0.6 |
1.1 |
1.8 |
30.0 |
1255 |
23×2×0.75 |
0.6 |
1.1 |
1.9 |
30.6 |
1355 |
24×2×0.75 |
0.6 |
1.1 |
1.9 |
31.9 |
1370 |
27×2×0.75 |
0.6 |
1.2 |
1.9 |
32.9 |
1480 |
30×2×0.75 |
0.6 |
1.2 |
2.0 |
34.1 |
1605 |
33×2×0.75 |
0.6 |
1.2 |
2.0 |
35.3 |
1725 |
37×2×0.75 |
0.6 |
1.2 |
2.1 |
36.9 |
1950 |
1×3×0.75 |
0.6 |
1.1 |
1.2 |
11.7 |
230 |
2×3×0.75 |
0.6 |
1.1 |
1.3 |
14.5 |
360 |
3×3×0.75 |
0.6 |
1.1 |
1.3 |
16.2 |
415 |
4×3×0.75 |
0.6 |
1.1 |
1.4 |
17.6 |
540 |
5×3×0.75 |
0.6 |
1.1 |
1.4 |
19.1 |
645 |
6×3×0.75 |
0.6 |
1.1 |
1.5 |
21.1 |
755 |
7×3×0.75 |
0.6 |
1.1 |
1.5 |
21.1 |
780 |
8×3×0.75 |
0.6 |
1.1 |
1.6 |
22.6 |
845 |
9×3×0.75 |
0.6 |
1.1 |
1.6 |
23.9 |
945 |
10×3×0.75 |
0.6 |
1.1 |
1.7 |
25.7 |
960 |
12×3×0.75 |
0.6 |
1.1 |
1.7 |
26.4 |
1080 |
14×3×0.75 |
0.6 |
1.1 |
1.7 |
27.5 |
1150 |
15×3×0.75 |
0.6 |
1.1 |
1.8 |
28.5 |
1230 |
16×3×0.75 |
0.6 |
1.1 |
1.8 |
29.2 |
1310 |
18×3×0.75 |
0.6 |
1.1 |
1.9 |
30.7 |
1405 |
19×3×0.75 |
0.6 |
1.1 |
1.9 |
31.0 |
1475 |
20×3×0.75 |
0.6 |
1.1 |
1.9 |
31.8 |
1560 |
21×3×0.75 |
0.6 |
1.2 |
1.9 |
32.7 |
1640 |
23×3×0.75 |
0.6 |
1.2 |
2.0 |
34.1 |
1795 |
24×3×0.75 |
0.6 |
1.2 |
2.0 |
34.6 |
1830 |
27×3×0.75 |
0.6 |
1.2 |
2.1 |
36.8 |
2040 |
30×3×0.75 |
0.6 |
1.2 |
2.1 |
38.3. |
2210 |
32×3×0.75 |
0.6 |
1.2 |
2.2 |
39.5 |
2345 |
1×2×1.0 |
0.6 |
1.1 |
1.2 |
11.7 |
225 |
2×2×1.0 |
0.6 |
1.1 |
1.3 |
13.4 |
335 |
3×2×1.0 |
0.6 |
1.1 |
1.3 |
16.3 |
470 |
4×2×1.0 |
0.6 |
1.1 |
1.4 |
17.4 |
535 |
5×2×1.0 |
0.6 |
1.1 |
1.4 |
18.7 |
610 |
6×2×1.0 |
0.6 |
1.1 |
1.5 |
20.2 |
700 |
7×2×1.0 |
0.6 |
1.1 |
1.5 |
20.2 |
720 |
8×2×1.0 |
0.6 |
1.1 |
1.5 |
21.8 |
775 |
9×2×1.0 |
0.6 |
1.1 |
1.6 |
23.2 |
850 |
10×2×1.0 |
0.6 |
1.1 |
1.6 |
24.1 |
880 |
12×2×1.0 |
0.6 |
1.1 |
1.6 |
24.7 |
980 |
14×2×1.0 |
0.6 |
1.1 |
1.7 |
26.0 |
1030 |
15×2×1.0 |
0.6 |
1.1 |
1.8 |
27.8 |
1125 |
16×2×1.0 |
0.6 |
1.1 |
1.8 |
28.2 |
1175 |
18×2×1.0 |
0.6 |
1.1 |
1.8 |
29.5 |
1255 |
19×2×1.0 |
0.6 |
1.1 |
1.8 |
29.8 |
1295 |
20×2×1.0 |
0.6 |
1.1 |
1.9 |
31.1 |
1420 |
21×2×1.0 |
0.6 |
1.1 |
1.9 |
31.9 |
1475 |
23×2×1.0 |
0.6 |
1.2 |
1.9 |
32.7 |
1610 |
24×2×1.0 |
0.6 |
1.2 |
2.0 |
34.3 |
1620 |
27×2×1.0 |
0.6 |
1.2 |
2.0 |
35.0 |
1745 |
30×2×1.0 |
0.6 |
1.2 |
2.1 |
36.7 |
1980 |
33×2×1.0 |
0.6 |
1.2 |
2.1 |
38.0 |
2130 |
37×2×1.0 |
0.6 |
1.2 |
2.2 |
39.3 |
2305 |
1×3×1.0 |
0.6 |
1.1 |
1.2 |
12.0 |
250 |
2×3×1.0 |
0.6 |
1.1 |
1.4 |
17.0 |
520 |
3×3×1.0 |
0.6 |
1.1 |
1.4 |
17.4 |
540 |
4×3×1.0 |
0.6 |
1.1 |
1.4 |
18.7 |
625 |
5×3×1.0 |
0.6 |
1.1 |
1.5 |
20.2 |
745 |
6×3×1.0 |
0.6 |
1.1 |
1.6 |
22.4 |
875 |
7×3×1.0 |
0.6 |
1.1 |
1.6 |
22.4 |
905 |
8×3×1.0 |
0.6 |
1.1 |
1.6 |
23.8 |
980 |
9×3×1.0 |
0.6 |
1.1 |
1.7 |
25.4 |
1080 |
10×3×1.0 |
0.6 |
1.1 |
1.7 |
27.1 |
1150 |
12×3×1.0 |
0.6 |
1.1 |
1.8 |
28.1 |
1265 |
14×3×1.0 |
0.6 |
1.1 |
1.8 |
29.2 |
1355 |
15×3×1.0 |
0.6 |
1.1 |
1.8 |
30.1 |
1440 |
16×3×1.0 |
0.6 |
1.1 |
1.9 |
31.1 |
1570 |
18×3×1.0 |
0.6 |
1.2 |
1.9 |
32.8 |
1675 |
19×3×1.0 |
0.6 |
1.2 |
2.0 |
33.3 |
1750 |
20×3×1.0 |
0.6 |
1.2 |
2.0 |
34.1 |
1880 |
21×3×1.0 |
0.6 |
1.2 |
2.0 |
34.8 |
1950 |
23×3×1.0 |
0.6 |
1.2 |
2.1 |
36.6 |
2215 |
24×3×1.0 |
0.6 |
1.2 |
2.1 |
37.3 |
2200 |
27×3×1.0 |
0.6 |
1.2 |
2.2 |
39.2 |
2425 |
30×3×1.0 |
0.6 |
1.2 |
2.2 |
40.8 |
2630 |
32×3×1.0 |
0.6 |
1.2 |
2.3 |
42.1 |
2790 |
1×2×1.5 |
0.7 |
1.1 |
1.2 |
12.7 |
260 |
2×2×1.5 |
0.7 |
1.1 |
1.4 |
15.4 |
420 |
3×2×1.5 |
0.7 |
1.1 |
1.4 |
17.6 |
585 |
4×2×1.5 |
0.7 |
1.1 |
1.4 |
18.8 |
635 |
5×2×1.5 |
0.7 |
1.1 |
1.5 |
21.1 |
770 |
6×2×1.5 |
0.7 |
1.1 |
1.6 |
22.8 |
890 |
7×2×1.5 |
0.7 |
1.1 |
1.6 |
22.8 |
925 |
8×2×1.5 |
0.7 |
1.1 |
1.6 |
23.7 |
975 |
9×2×1.5 |
0.7 |
1.1 |
1.7 |
26.3 |
1060 |
10×2×1.5 |
0.7 |
1.1 |
1.7 |
27.4 |
1130 |
12×2×1.5 |
0.7 |
1.1 |
1.8 |
28.3 |
1270 |
14×2×1.5 |
0.7 |
1.1 |
1.8 |
29.5 |
1325 |
15×2×1.5 |
0.7 |
1.1 |
1.9 |
31.6 |
1445 |
16×2×1.5 |
0.7 |
1.1 |
1.9 |
32.1 |
1575 |
18×2×1.5 |
0.7 |
1.2 |
2.0 |
34.2 |
1670 |
19×2×1.5 |
0.7 |
1.2 |
2.0 |
34.5 |
1765 |
20×2×1.5 |
0.7 |
1.2 |
2.1 |
36.0 |
1895 |
21×2×1.5 |
0.7 |
1.2 |
2.1 |
37.3 |
2050 |
23×2×1.5 |
0.7 |
1.2 |
2.1 |
37.9 |
2185 |
24×2×1.5 |
0.7 |
1.2 |
2.2 |
39.8 |
2200 |
27×2×1.5 |
0.7 |
1.2 |
2.2 |
40.6 |
2390 |
30×2×1.5 |
0.7 |
1.2 |
2.3 |
42.1 |
2600 |
33×2×1.5 |
0.7 |
1.2 |
2.3 |
43.6 |
2805 |
37×2×1.5 |
0.7 |
1.4 |
2.4 |
45.4 |
3080 |
1×3×1.5 |
0.7 |
1.1 |
1.2 |
13.2 |
295 |
2×3×1.5 |
0.7 |
1.1 |
1.4 |
17.0 |
490 |
3×3×1.5 |
0.7 |
1.1 |
1.5 |
19.5 |
685 |
4×3×1.5 |
0.7 |
1.1 |
1.5 |
20.9 |
785 |
5×3×1.5 |
0.7 |
1.1 |
1.6 |
21.0 |
820 |
6×3×1.5 |
0.7 |
1.1 |
1.7 |
22.8 |
960 |
7×3×1.5 |
0.7 |
1.1 |
1.7 |
25.1 |
1135 |
8×3×1.5 |
0.7 |
1.1 |
1.7 |
27.0 |
1270 |
9×3×1.5 |
0.7 |
1.1 |
1.8 |
28.9 |
1445 |
10×3×1.5 |
0.7 |
1.1 |
1.9 |
31.1 |
1450 |
12×3×1.5 |
0.7 |
1.1 |
1.9 |
31.5 |
1710 |
14×3×1.5 |
0.7 |
1.2 |
2.0 |
33.8 |
1815 |
15×3×1.5 |
0.7 |
1.2 |
2.0 |
34.8 |
1930 |
16×3×1.5 |
0.7 |
1.2 |
2.1 |
36.0 |
2110 |
18×3×1.5 |
0.7 |
1.2 |
2.1 |
38.1 |
2305 |
19×3×1.5 |
0.7 |
1.2 |
2.2 |
38.6 |
2375 |
20×3×1.5 |
0.7 |
1.2 |
2.2 |
39.6 |
2580 |
21×3×1.5 |
0.7 |
1.2 |
2.2 |
40.4 |
2680 |
23×3×1.5 |
0.7 |
1.2 |
2.3 |
42.0 |
2925 |
24×3×1.5 |
0.7 |
1.2 |
2.3 |
42.7 |
3140 |
27×3×1.5 |
0.7 |
1.4 |
2.4 |
45.3 |
3250 |
30×3×1.5 |
0.7 |
1.4 |
2.5 |
47.4 |
3555 |
32×3×1.5 |
0.7 |
1.4 |
2.5 |
48.6 |
3745 |
1×2×2.5 |
0.7 |
1.1 |
1.2 |
13.5 |
300 |
2×2×2.5 |
0.7 |
1.1 |
1.4 |
18.9 |
650 |
3×2×2.5 |
0.7 |
1.1 |
1.5 |
19.9 |
720 |
4×2×2.5 |
0.7 |
1.1 |
1.5 |
21.1 |
820 |
5×2×2.5 |
0.7 |
1.1 |
1.6 |
23.0 |
965 |
6×2×2.5 |
0.7 |
1.1 |
1.6 |
24.8 |
1105 |
7×2×2.5 |
0.7 |
1.1 |
1.6 |
24.8 |
1150 |
8×2×2.5 |
0.7 |
1.1 |
1.7 |
27.0 |
1255 |
9×2×2.5 |
0.7 |
1.1 |
1.8 |
28.8 |
1385 |
10×2×2.5 |
0.7 |
1.1 |
1.8 |
30.0 |
1430 |
12×2×2.5 |
0.7 |
1.3 |
1.9 |
31.0 |
1545 |
14×2×2.5 |
0.7 |
1.2 |
1.9 |
32.7 |
1730 |
15×2×2.5 |
0.7 |
1.2 |
2.0 |
35.0 |
1885 |
16×2×2.5 |
0.7 |
1.2 |
2.0 |
35.6 |
1970 |
18×2×2.5 |
0.7 |
1.2 |
2.1 |
37.9 |
2235 |
19×2×2.5 |
0.7 |
1.2 |
2.1 |
38.3 |
2315 |
20×2×2.5 |
0.7 |
1.2 |
2.2 |
39.9 |
2530 |
21×2×2.5 |
0.7 |
1.2 |
2.2 |
41.0 |
2630 |
23×2×2.5 |
0.7 |
1.2 |
2.3 |
41.8 |
2750 |
24×2×2.5 |
0.7 |
1.2 |
2.3 |
43.7 |
2850 |
27×2×2.5 |
0.7 |
1.4 |
2.4 |
45.1 |
3150 |
30×2×2.5 |
0.7 |
1.4 |
2.5 |
46.8 |
3435 |
33×2×2.5 |
0.7 |
1.4 |
2.5 |
48.5 |
3715 |
37×2×2.5 |
0.7 |
1.4 |
2.6 |
50.2 |
4040 |
1×3×2.5 |
0.7 |
1.1 |
1.3 |
14.3 |
360 |
2×3×2.5 |
0.7 |
1.1 |
1.5 |
20.5 |
785 |
3×3×2.5 |
0.7 |
1.1 |
1.5 |
21.2 |
875 |
4×3×2.5 |
0.7 |
1.1 |
1.6 |
22.9 |
1035 |
5×3×2.5 |
0.7 |
1.1 |
1.6 |
24.8 |
1205 |
6×3×2.5 |
0.7 |
1.1 |
1.8 |
27.8 |
1430 |
7×3×2.5 |
0.7 |
1.1 |
1.8 |
27.8 |
1505 |
8×3×2.5 |
0.7 |
1.1 |
1.8 |
29.6 |
1625 |
9×3×2.5 |
0.7 |
1.1 |
1.9 |
31.7 |
1855 |
10×3×2.5 |
0.7 |
1.2 |
2.0 |
34.4 |
1890 |
12×3×2.5 |
0.7 |
1.2 |
2.0 |
35.5 |
2110 |
14×3×2.5 |
0.7 |
1.2 |
2.1 |
37.6 |
2445 |
15×3×2.5 |
0.7 |
1.2 |
2.2 |
38.9 |
2620 |
16×3×2.5 |
0.7 |
1.2 |
2.2 |
40.0 |
2755 |
18×3×2.5 |
0.7 |
1.2 |
2.3 |
42.0 |
3010 |
19×3×2.5 |
0.7 |
1.2 |
2.3 |
42.4 |
3125 |
20×3×2.5 |
0.7 |
1.2 |
2.3 |
43.5 |
3360 |
21×3×2.5 |
0.7 |
1.4 |
2.4 |
44.9 |
3555 |
23×3×2.5 |
0.7 |
1.4 |
2.5 |
46.7 |
3885 |
24×3×2.5 |
0.7 |
1.4 |
2.5 |
47.5 |
3870 |
27×3×2.5 |
0.7 |
1.4 |
2.6 |
50.0 |
4280 |
30×3×2.5 |
0.7 |
1.4 |
2.7 |
52.3 |
4695 |
32×3×2.5 |
0.7 |
1.4 |
2.7 |
53.8 |
4960 |
|
