Marine Cable
P5 or P5/P12 BFOU 0.6/1KV
Applications :
- These cables are fire resistant, flame retardant, low smoke,halogen free and mud resistant, used for control, power and lighting systems.
Standards :
-
IEC 60092-353 |
IEC 60092-351 |
IEC 60092-359 |
IEC 60332-1 |
IEC 60332-3-22 |
IEC 60754-1,2 |
IEC 61034-1,2 |
NEK 606:2004 |

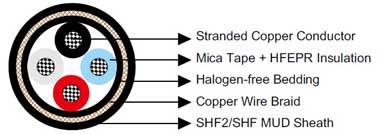

Construction :
- Conductors : Tinned annealed stranded compacted copper to IEC 60228 class 2.
- Insulation : Mica tape + Halogen free EPR.
- Bedding : Halogen free compound.
- Armour : Tinned copper wire braid.
- Outer Sheath : Halogen free thermosetting compound, SHF2 (for TYPE P5). Halogen free, mud resistant thermosetting compound, SHF MUD (for TYPE P5/P12), coloured black.
Electrical Characteristics :
-
Nominal Cross Section Area |
mm² |
1.5 |
2.5 |
4 |
6 |
10 |
16 |
25 |
35 |
50 |
Nominal Conductor Diameter |
mm |
1.6 |
2.1 |
2.6 |
3.2 |
4 |
5.1 |
6.5 |
7.4 |
8.7 |
Maximum DC Resistant@20℃ |
Ω/km |
12.2 |
7.56 |
4.7 |
3.11 |
1.84 |
1.16 |
0.734 |
0.529 |
0.391 |
Continuous Current Rating@45℃1 Core |
A |
23 |
30 |
40 |
52 |
72 |
96 |
127 |
157 |
196 |
Continuous Current Rating@45℃2 Core |
A |
20 |
26 |
34 |
44 |
61 |
82 |
108 |
133 |
167 |
Continuous Current Rating@45℃3&4 Core |
A |
16 |
21 |
28 |
36 |
50 |
67 |
89 |
110 |
137 |
Short Circuit Current 1s |
A |
210 |
360 |
570 |
860 |
1430 |
2290 |
3580 |
5010 |
7150 |
Operating Voltage |
KV |
0.6/1 |
0.6/1 |
0.6/1 |
0.6/1 |
0.6/1 |
0.6/1 |
0.6/1 |
0.6/1 |
0.6/1 |
Nominal Cross Section Area |
mm² |
70 |
95 |
120 |
150 |
185 |
240 |
300 |
400 |
630 |
Nominal Conductor Diameter |
mm |
10.3 |
12.2 |
13.8 |
15.1 |
17.0 |
19.6 |
21.9 |
24.6 |
32.5 |
Maximum DC Resistant@20℃ |
Ω/km |
0.27 |
0.195 |
0.154 |
0.126 |
0.1 |
0.0762 |
0.0607 |
0.0475 |
0.0286 |
Continuous Current Rating@45℃1 Core |
A |
242 |
293 |
339 |
389 |
444 |
522 |
601 |
690 |
890 |
Continuous Current Rating@45℃2 Core |
A |
206 |
249 |
288 |
331 |
444 |
444 |
511 |
587 |
757 |
Continuous Current Rating@45℃3&4 Core |
A |
169 |
205 |
237 |
272 |
311 |
365 |
421 |
483 |
623 |
Short Circuit Current 1s |
A |
10020 |
13590 |
17170 |
21460 |
26470 |
34340 |
42930 |
57230 |
90140 |
Operating Voltage |
KV |
0.6/1 |
0.6/1 |
0.6/1 |
0.6/1 |
0.6/1 |
0.6/1 |
0.6/1 |
0.6/1 |
0.6/1 |
- Note: For more than 4-cores, the current ratings may be calculated from the following formula (IN=I1/ ³√ N ), I1= Current rating for 1-core, N = Number of cores.
Ambient Temperature Correction Factors :
-
Ambient Temperature Correction Factors |
35 |
40 |
45 |
50 |
55 |
60 |
65 |
70 |
75 |
80 |
Rating Factor |
1.1 |
1.05 |
1.0 |
0.94 |
0.88 |
0.82 |
0.74 |
0.67 |
0.58 |
0.47 |
Mechanical and Thermal Properties :
- Bending Radius : 8×OD (during installation); 6×OD (fixed installed).
- Temperature Range : -20℃ ~ +90℃.
Dimensions and Weight :
Construction No. of cores×Cross section(mm²) |
Nominal Insulation Thickness mm |
Nominal Sheath Thickness
mm |
Nominal Overall Diameter mm |
Nominal Weight kg/km |
Inner |
Outer |
1×1.5 |
1.0 |
1.1 |
1.1 |
9.3 |
145 |
1×2.5 |
1.0 |
1.1 |
1.1 |
9.7 |
160 |
1×4 |
1.0 |
1.1 |
1.1 |
10.4 |
220 |
1×6 |
1.0 |
1.1 |
1.1 |
10.9 |
250 |
1×10 |
1.0 |
1.1 |
1.2 |
12.7 |
310 |
1×16 |
1.0 |
1.1 |
1.2 |
13.9 |
390 |
1×25 |
1.2 |
1.1 |
1.3 |
16.3 |
585 |
1×35 |
1.2 |
1.1 |
1.3 |
17.2 |
690 |
1×50 |
1.4 |
1.1 |
1.4 |
19.0 |
890 |
1×70 |
1.4 |
1.1 |
1.4 |
20.6 |
1110 |
1×95 |
1.6 |
1.1 |
1.5 |
23.1 |
1440 |
1×120 |
1.6 |
1.2 |
1.6 |
25.0 |
1735 |
1×150 |
1.8 |
1.2 |
1.7 |
27.0 |
2060 |
1×185 |
2.0 |
1.2 |
1.7 |
29.4 |
2545 |
1×240 |
2.2 |
1.2 |
1.8 |
32.6 |
3170 |
1×300 |
2.4 |
1.2 |
1.9 |
35.3 |
3910 |
1×400 |
2.4 |
1.4 |
2.1 |
41.0 |
5100 |
1×630 |
2.8 |
1.4 |
2.3 |
48.5 |
7660 |
2×1.5 |
1.0 |
1.1 |
1.2 |
14.2 |
310 |
2×2.5 |
1.0 |
1.1 |
1.3 |
15.1 |
360 |
2×4 |
1.0 |
1.1 |
1.3 |
16.6 |
470 |
2×6 |
1.0 |
1.1 |
1.4 |
17.9 |
555 |
2×10 |
1.0 |
1.1 |
1.4 |
19.9 |
705 |
2×16 |
1.0 |
1.1 |
1.5 |
22.5 |
985 |
2×25 |
1.2 |
1.2 |
1.6 |
26.4 |
1360 |
2×35 |
1.2 |
1.2 |
1.7 |
28.4 |
1620 |
2×50 |
1.4 |
1.2 |
1.9 |
32.4 |
2290 |
2×70 |
1.4 |
1.2 |
2.1 |
38.0 |
3260 |
2×95 |
1.6 |
1.2 |
2.3 |
41.6 |
3910 |
2×120 |
1.6 |
1.4 |
2.4 |
45.3 |
4710 |
2×150 |
1.8 |
1.4 |
2.6 |
49.7 |
5670 |
2×185 |
2.0 |
1.4 |
2.7 |
54.3 |
6840 |
2×240 |
2.2 |
1.6 |
3.0 |
61.5 |
8790 |
2×300 |
2.4 |
1.6 |
3.2 |
67.8 |
10630 |
3×1.5 |
1.0 |
1.1 |
1.3 |
14.8 |
345 |
3×2.5 |
1.0 |
1.1 |
1.3 |
16.2 |
445 |
3×4 |
1.0 |
1.1 |
1.3 |
17.4 |
530 |
3×6 |
1.0 |
1.1 |
1.4 |
18.7 |
635 |
3×10 |
1.0 |
1.1 |
1.5 |
21.1 |
830 |
3×16 |
1.0 |
1.1 |
1.5 |
23.7 |
1160 |
3×25 |
1.2 |
1.2 |
1.7 |
28.1 |
1640 |
3×35 |
1.2 |
1.2 |
1.8 |
30.2 |
1980 |
3×50 |
1.4 |
1.2 |
2.0 |
34.3 |
2750 |
3×70 |
1.4 |
1.2 |
2.2 |
39.0 |
3675 |
3×95 |
1.6 |
1.4 |
2.4 |
44.7 |
4955 |
3×120 |
1.6 |
1.4 |
2.5 |
48.3 |
6035 |
3×150 |
1.8 |
1.4 |
2.7 |
53.2 |
7355 |
3×185 |
2.0 |
1.6 |
2.9 |
59.5 |
9025 |
3×240 |
2.2 |
1.6 |
3.2 |
66.5 |
11590 |
3×300 |
2.4 |
1.8 |
3.4 |
72.6 |
13740 |
4×1.5 |
1.0 |
1.1 |
1.3 |
16.4 |
400 |
4×2.5 |
1.0 |
1.1 |
1.3 |
17.3 |
505 |
4×4 |
1.0 |
1.1 |
1.4 |
18.8 |
620 |
4×6 |
1.0 |
1.1 |
1.4 |
20.1 |
750 |
4×10 |
1.0 |
1.1 |
1.5 |
22.7 |
985 |
4×16 |
1.0 |
1.2 |
1.6 |
25.9 |
1400 |
4×25 |
1.2 |
1.2 |
1.8 |
30.7 |
1995 |
4×35 |
1.2 |
1.2 |
1.9 |
33.1 |
2440 |
4×50 |
1.4 |
1.4 |
2.0 |
38.2 |
3430 |
4×70 |
1.4 |
1.4 |
2.2 |
42.7 |
4600 |
4×95 |
1.6 |
1.6 |
2.4 |
49.4 |
6135 |
4×120 |
1.6 |
1.6 |
2.5 |
53.6 |
7515 |
4×150 |
1.8 |
1.6 |
2.9 |
59.0 |
9010 |
4×185 |
2.0 |
1.6 |
3.1 |
64.7 |
11000 |
4×240 |
2.2 |
1.8 |
3.4 |
73.1 |
14160 |
4×300 |
2.4 |
1.8 |
3.7 |
80.7 |
17550 |
5×1.5 |
1.0 |
1.1 |
1.4 |
17.7 |
510 |
6×1.5 |
1.0 |
1.1 |
1.4 |
19.0 |
545 |
7×1.5 |
1.0 |
1.1 |
1.4 |
19.0 |
590 |
8×1.5 |
1.0 |
1.1 |
1.5 |
21.8 |
715 |
9×1.5 |
1.0 |
1.1 |
1.6 |
23.3 |
720 |
10×1.5 |
1.0 |
1.1 |
1.6 |
23.6 |
790 |
12×1.5 |
1.0 |
1.2 |
1.6 |
24.3 |
880 |
14×1.5 |
1.0 |
1.2 |
1.7 |
25.5 |
965 |
16×1.5 |
1.0 |
1.2 |
1.7 |
26.7 |
1035 |
19×1.5 |
1.0 |
1.2 |
1.7 |
27.4 |
1185 |
20×1.5 |
1.0 |
1.2 |
1.8 |
29.5 |
1260 |
23×1.5 |
1.0 |
1.2 |
1.9 |
31.8 |
1435 |
24×1.5 |
1.0 |
1.2 |
2.0 |
33.2 |
1510 |
27×1.5 |
1.0 |
1.2 |
2.0 |
33.9 |
1615 |
30×1.5 |
1.0 |
1.2 |
2.0 |
34.9 |
1735 |
32×1.5 |
1.0 |
1.4 |
2.0 |
35.5 |
1800 |
33×1.5 |
1.0 |
1.4 |
2.0 |
36.7 |
1940 |
37×1.5 |
1.0 |
1.4 |
2.0 |
38.0 |
2090 |
44×1.5 |
1.0 |
1.4 |
2.3 |
42.6 |
2460 |
5×2.5 |
1.0 |
1.1 |
1.4 |
18.8 |
595 |
6×2.5 |
1.0 |
1.1 |
1.4 |
20.4 |
650 |
7×2.5 |
1.0 |
1.1 |
1.4 |
20.4 |
700 |
8×2.5 |
1.0 |
1.1 |
1.5 |
23.5 |
790 |
9×2.5 |
1.0 |
1.1 |
1.6 |
25.1 |
860 |
10×2.5 |
1.0 |
1.1 |
1.6 |
25.4 |
955 |
12×2.5 |
1.0 |
1.2 |
1.6 |
26.1 |
1045 |
14×2.5 |
1.0 |
1.2 |
1.7 |
27.3 |
1160 |
16×2.5 |
1.0 |
1.2 |
1.8 |
28.8 |
1265 |
19×2.5 |
1.0 |
1.2 |
1.8 |
29.6 |
1445 |
20×2.5 |
1.0 |
1.2 |
1.9 |
31.8 |
1545 |
23×2.5 |
1.0 |
1.4 |
2.0 |
34.7 |
1805 |
24×2.5 |
1.0 |
1.4 |
2.0 |
35.8 |
1850 |
27×2.5 |
1.0 |
1.4 |
2.0 |
35.4 |
1970 |
30×2.5 |
1.0 |
1.4 |
2.1 |
38.1 |
2235 |
33×2.5 |
1.0 |
1.4 |
2.2 |
39.6 |
2390 |
37×2.5 |
1.0 |
1.4 |
2.3 |
41.2 |
2610 |
44×2.5 |
1.0 |
1.4 |
2.4 |
46.2 |
3075 |
|
