Marine Cable
P1 or P1/P8 RFOU/TFOU 0.6/1KV
Applications :
- Marine cables are flame retardant, low smoke, halogen freeand mud resistant, used for control, power and lighting systems.
Standards :
-
IEC 60092-353 |
IEC 60092-351 |
IEC 60092-359 |
IEC 60332-1 |
IEC 60332-3-22 |
IEC 60754-1,2 |
IEC 61034-1,2 |
NEK 606:2004 |

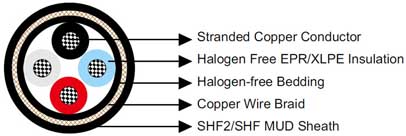

Construction :
- Conductors : Tinned annealed stranded copper to IEC 60228 class 2.
- Bedding : Halogen free compound.
- Armour : Tinned copper wire braid.
- Outer Sheath : Halogen free thermosetting compound, SHF2 (for TYPE P1). Halogen free, mud resistant thermosetting compound, SHF MUD (for TYPE P1/P8), coloured black.
Electrical Characteristics :
-
Nominal Cross Section Area |
mm² |
1.5 |
2.5 |
4 |
6 |
10 |
16 |
25 |
35 |
50 |
70 |
Nominal Conductor Diameter |
mm |
1.6 |
2.1 |
2.6 |
3.2 |
4.0 |
5.1 |
6.5 |
7.4 |
8.7 |
10.3 |
Maximum DC Resistant@20℃ |
Ω/km |
12.2 |
7.56 |
4.7 |
3.11 |
1.84 |
1.16 |
0.734 |
0.529 |
0.391 |
0.27 |
Continuous Current Rating@45℃1 Core |
A |
23 |
30 |
40 |
52 |
72 |
96 |
127 |
157 |
196 |
242 |
Continuous Current Rating@45℃2 Core |
A |
20 |
26 |
34 |
44 |
61 |
82 |
108 |
133 |
167 |
206 |
Continuous Current Rating@45℃ 3&4 Core |
A |
16 |
21 |
28 |
36 |
50 |
67 |
89 |
110 |
137 |
169 |
Short Circuit Current 1s |
A |
210 |
360 |
570 |
860 |
1430 |
2290 |
3580 |
5010 |
7150 |
10020 |
Operating Voltage |
KV |
0.6/1 |
0.6/1 |
0.6/1 |
0.6/1 |
0.6/1 |
0.6/1 |
0.6/1 |
0.6/1 |
0.6/1 |
0.6/1 |
-
-
Nominal Cross Section Area |
mm² |
95 |
120 |
150 |
185 |
240 |
300 |
400 |
500 |
630 |
Nominal Conductor Diameter |
mm |
12.2 |
13.8 |
15.1 |
17.0 |
19.6 |
21.9 |
24.6 |
27.6 |
32.5 |
Maximum DC Resistant@20℃ |
Ω/km |
0.195 |
0.154 |
0.126 |
0.1 |
0.0762 |
0.0607 |
0.0475 |
0.0369 |
0.0286 |
Continuous Current Rating@45℃1 Core |
A |
293 |
339 |
389 |
444 |
522 |
601 |
690 |
780 |
890 |
Continuous Current Rating@45℃2 Core |
A |
249 |
288 |
331 |
444 |
444 |
511 |
587 |
663 |
757 |
Continuous Current Rating@45℃3&4 Core |
A |
205 |
237 |
272 |
311 |
365 |
421 |
483 |
546 |
623 |
Short Circuit Current 1s |
A |
13590 |
17170 |
21460 |
26470 |
34340 |
42930 |
57230 |
71540 |
90140 |
Operating Voltage |
KV |
0.6/1 |
0.6/1 |
0.6/1 |
0.6/1 |
0.6/1 |
0.6/1 |
0.6/1 |
0.6/1 |
0.6/1 |
- Note: For more than 4-cores, the current ratings may be calculated from the following formula (IN=I1/ ³√ N ), I1= Current rating for 1-core, N = Number of cores.
Ambient Temperature Correction Factors :
-
Ambient Temperature Correction Factors |
35 |
40 |
45 |
50 |
55 |
60 |
65 |
70 |
75 |
80 |
Rating Factor |
1.1 |
1.05 |
1.0 |
0.94 |
0.88 |
0.82 |
0.74 |
0.67 |
0.58 |
0.47 |
Mechanical and Thermal Properties :
- Bending Radius : 8×OD (during installation); 6×OD (fixed installed).
- Temperature Range : -20℃ ~ +90℃.
Dimensions and Weight :
Construction No. of
cores×Cross section
(mm²) |
Nominal Insulation Thickness mm |
Nominal Diameter Over Bedding
mm |
Nominal Overall Diameter mm |
Nominal Weight
kg/km |
Inner |
Outer |
1×1.5 |
1.0 |
1.1 |
1.1 |
8.9 |
135 |
1×2.5 |
1.0 |
1.1 |
1.1 |
9.3 |
150 |
1×4 |
1.0 |
1.1 |
1.1 |
9.9 |
180 |
1×6 |
1.0 |
1.1 |
1.1 |
10.4 |
205 |
1×10 |
1.0 |
1.1 |
1.2 |
12.2 |
295 |
1×16 |
1.0 |
1.1 |
1.2 |
13.5 |
385 |
1×25 |
1.2 |
1.1 |
1.2 |
15.4 |
525 |
1×35 |
1.2 |
1.1 |
1.3 |
16.9 |
685 |
1×50 |
1.4 |
1.1 |
1.4 |
18.7 |
870 |
1×70 |
1.4 |
1.1 |
1.4 |
20.4 |
1105 |
1×95 |
1.6 |
1.1 |
1.5 |
22.8 |
1435 |
1×120 |
1.6 |
1.2 |
1.6 |
24.9 |
1745 |
1×150 |
1.8 |
1.2 |
1.6 |
26.8 |
2055 |
1×185 |
2.0 |
1.2 |
1.7 |
29.3 |
2560 |
1×240 |
2.2 |
1.2 |
1.8 |
32.5 |
3190 |
1×300 |
2.4 |
1.2 |
1.9 |
35.2 |
3935 |
1×400 |
2.4 |
1.4 |
2.1 |
40.5 |
5060 |
1×500 |
2.4 |
1.4 |
2.2 |
44.0 |
6180 |
1×630 |
2.4 |
1.4 |
2.3 |
48.0 |
7620 |
2×1.5 |
1.0 |
1.1 |
1.2 |
13.6 |
295 |
2×2.5 |
1.0 |
1.1 |
1.2 |
14.4 |
335 |
2×4 |
1.0 |
1.1 |
1.3 |
16.1 |
445 |
2×6 |
1.0 |
1.1 |
1.3 |
17.1 |
520 |
2×10 |
1.0 |
1.1 |
1.4 |
19.3 |
680 |
2×16 |
1.0 |
1.1 |
1.5 |
21.7 |
955 |
2×25 |
1.2 |
1.2 |
1.6 |
25.9 |
1335 |
2×35 |
1.2 |
1.2 |
1.7 |
27.9 |
1595 |
2×50 |
1.4 |
1.2 |
1.9 |
31.9 |
2250 |
2×70 |
1.4 |
1.2 |
2.1 |
35.8 |
2795 |
2×95 |
1.6 |
1.2 |
2.3 |
41.2 |
3780 |
2×120 |
1.6 |
1.4 |
2.4 |
44.8 |
4560 |
2×150 |
1.8 |
1.4 |
2.6 |
49.2 |
5500 |
2×185 |
2.0 |
1.4 |
2.7 |
53.8 |
6675 |
2×240 |
2.2 |
1.6 |
3.0 |
61.0 |
8605 |
2×300 |
2.4 |
1.6 |
3.2 |
67.0 |
10510 |
3×1.5 |
1.0 |
1.1 |
1.2 |
14.2 |
320 |
3×2.5 |
1.0 |
1.1 |
1.3 |
15.6 |
415 |
3×4 |
1.0 |
1.1 |
1.3 |
16.8 |
500 |
3×6 |
1.0 |
1.1 |
1.4 |
18.1 |
605 |
3×10 |
1.0 |
1.1 |
1.4 |
20.3 |
795 |
3×16 |
1.0 |
1.1 |
1.5 |
22.8 |
1125 |
3×25 |
1.2 |
1.2 |
1.6 |
27.5 |
1620 |
3×35 |
1.2 |
1.2 |
1.7 |
29.6 |
1955 |
3×50 |
1.4 |
1.2 |
1.9 |
33.9 |
2730 |
3×70 |
1.4 |
1.4 |
2.0 |
38.4 |
3655 |
3×95 |
1.6 |
1.4 |
2.2 |
43.8 |
4885 |
3×120 |
1.6 |
1.4 |
2.3 |
47.6 |
6000 |
3×150 |
1.8 |
1.6 |
2.5 |
52.4 |
7300 |
3×185 |
2.0 |
1.6 |
2.7 |
58.6 |
8960 |
3×240 |
2.2 |
1.8 |
2.9 |
66.1 |
11610 |
3×300 |
2.2 |
1.8 |
3.4 |
71.9 |
13490 |
4×1.5 |
1.0 |
1.1 |
1.3 |
15.7 |
350 |
4×2.5 |
1.0 |
1.1 |
1.3 |
16.6 |
425 |
4×4 |
1.0 |
1.1 |
1.4 |
18.1 |
590 |
4×6 |
1.0 |
1.1 |
1.4 |
19.5 |
725 |
4×10 |
1.0 |
1.1 |
1.5 |
22.1 |
955 |
4×16 |
1.0 |
1.2 |
1.6 |
25.2 |
1375 |
4×25 |
1.2 |
1.2 |
1.7 |
30.0 |
1965 |
4×35 |
1.2 |
1.2 |
1.8 |
32.4 |
2410 |
4×50 |
1.4 |
1.4 |
2.0 |
37.3 |
3365 |
4×70 |
1.4 |
1.4 |
2.2 |
42.1 |
4580 |
4×95 |
1.6 |
1.4 |
2.4 |
48.2 |
6020 |
4×120 |
1.6 |
1.6 |
2.5 |
52.7 |
7440 |
4×150 |
1.8 |
1.6 |
2.9 |
58.3 |
8800 |
4×185 |
2.0 |
1.6 |
3.1 |
64.0 |
10760 |
4×240 |
2.2 |
1.8 |
3.4 |
72.4 |
13890 |
4×300 |
2.4 |
1.8 |
3.7 |
79.8 |
17405 |
5×1.5 |
1.0 |
1.1 |
1.3 |
16.7 |
420 |
6×1.5 |
1.0 |
1.1 |
1.3 |
17.8 |
495 |
7×1.5 |
1.0 |
1.1 |
1.3 |
17.8 |
540 |
8×1.5 |
1.0 |
1.1 |
1.5 |
20.3 |
645 |
9×1.5 |
1.0 |
1.1 |
1.5 |
21.5 |
675 |
10×1.5 |
1.0 |
1.1 |
1.5 |
21.8 |
705 |
12×1.5 |
1.0 |
1.1 |
1.5 |
22.5 |
805 |
14×1.5 |
1.0 |
1.1 |
1.6 |
23.6 |
860 |
16×1.5 |
1.0 |
1.1 |
1.7 |
24.9 |
940 |
19×1.5 |
1.0 |
1.1 |
1.7 |
26.0 |
1100 |
20×1.5 |
1.0 |
1.1 |
1.7 |
27.2 |
1130 |
23×1.5 |
1.0 |
1.1 |
1.8 |
29.3 |
1285 |
24×1.5 |
1.0 |
1.1 |
1.8 |
30.0 |
1305 |
27×1.5 |
1.0 |
1.1 |
1.9 |
30.8 |
1460 |
30×1.5 |
1.0 |
1.1 |
1.9 |
31.8 |
1520 |
33×1.5 |
1.0 |
1.2 |
2.0 |
33.5 |
1670 |
37×1.5 |
1.0 |
1.2 |
2.0 |
34.6 |
1840 |
44×1.5 |
1.0 |
1.2 |
2.2 |
39.2 |
2210 |
5×2.5 |
1.0 |
1.1 |
1.4 |
18.0 |
555 |
6×2.5 |
1.0 |
1.1 |
1.4 |
19.2 |
590 |
7×2.5 |
1.0 |
1.1 |
1.4 |
19.2 |
655 |
8×2.5 |
1.0 |
1.1 |
1.5 |
21.8 |
775 |
9×2.5 |
1.0 |
1.1 |
1.6 |
23.3 |
785 |
10×2.5 |
1.0 |
1.1 |
1.6 |
23.6 |
865 |
12×2.5 |
1.0 |
1.1 |
1.6 |
24.5 |
955 |
14×2.5 |
1.0 |
1.1 |
1.7 |
25.5 |
1070 |
16×2.5 |
1.0 |
1.1 |
1.7 |
26.7 |
1155 |
19×2.5 |
1.0 |
1.1 |
1.8 |
28.2 |
1360 |
20×2.5 |
1.0 |
1.1 |
1.8 |
29.5 |
1410 |
23×2.5 |
1.0 |
1.1 |
1.9 |
31.8 |
1610 |
24×2.5 |
1.0 |
1.2 |
2.0 |
33.2 |
1690 |
27×2.5 |
1.0 |
1.2 |
2.0 |
33.9 |
1815 |
30×2.5 |
1.0 |
1.2 |
2.0 |
34.9 |
1960 |
33×2.5 |
1.0 |
1.2 |
2.1 |
36.7 |
2190 |
37×2.5 |
1.0 |
1.2 |
2.1 |
38.0 |
2370 |
44×2.5 |
1.0 |
1.2 |
2.3 |
42.6 |
2795 |
|
