Applications :
- These cables are fire resistant, flame retardant, low smoke and halogen free, used for control, power and lighting systems.
Standards :
-
IEC 60092-353 |
IEC 60092-351 |
IEC 60092-359 |
IEC 60332-1 |
IEC 60332-3-22 |
IEC 60754-1,2 |
IEC 61034-1,2 |
NEK 606:2004 |

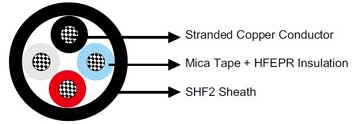

Construction :
- Conductors : Tinned annealed stranded copper to IEC 60228 class 2.
- Insulation : Mica tape + Halogen free EPR.
- Outer Sheath : Halogen free thermosetting compound, SHF2, coloured black.
Electrical Characteristics :
-
Nominal Cross Section Area |
mm² |
1.5 |
2.5 |
4 |
6 |
10 |
16 |
25 |
35 |
Nominal Conductor Diameter |
mm |
1.6 |
2.1 |
2.6 |
3.2 |
4 |
5.1 |
6.5 |
7.4 |
Maximum DC Resistant@20℃ |
Ω/km |
12.2 |
7.56 |
4.7 |
3.11 |
1.84 |
1.16 |
0.734 |
0.529 |
Continuous Current Rating@45℃1 Core |
A |
23 |
30 |
40 |
52 |
72 |
96 |
127 |
157 |
Continuous Current Rating@45℃2 Core |
A |
20 |
26 |
34 |
44 |
61 |
82 |
108 |
133 |
Continuous Current Rating@45℃3&4 Core |
A |
16 |
21 |
28 |
36 |
50 |
67 |
89 |
110 |
Short Circuit Current 1s |
A |
210 |
360 |
570 |
860 |
1430 |
2290 |
3580 |
5010 |
Operating Voltage |
KV |
0.6/1 |
0.6/1 |
0.6/1 |
0.6/1 |
0.6/1 |
0.6/1 |
0.6/1 |
0.6/1 |
Nominal Cross Section Area |
mm² |
50 |
70 |
95 |
120 |
150 |
185 |
240 |
300 |
Nominal Conductor Diameter |
mm |
8.7 |
10.3 |
12.2 |
13.8 |
15.1 |
17.0 |
19.6 |
21.9 |
Maximum DC Resistant@20℃ |
Ω/km |
0.391 |
0.27 |
0.195 |
0.154 |
0.126 |
0.1 |
0.0762 |
0.0607 |
Continuous Current Rating@45℃1 Core |
A |
196 |
242 |
293 |
339 |
389 |
444 |
522 |
601 |
Continuous Current Rating@45℃2 Core |
A |
167 |
206 |
249 |
288 |
331 |
444 |
444 |
511 |
Continuous Current Rating@45℃3&4 Core |
A |
137 |
169 |
205 |
237 |
272 |
311 |
365 |
421 |
Short Circuit Current 1s |
A |
7150 |
10020 |
13590 |
17170 |
21460 |
26470 |
34340 |
42930 |
Operating Voltage |
KV |
0.6/1 |
0.6/1 |
0.6/1 |
0.6/1 |
0.6/1 |
0.6/1 |
0.6/1 |
0.6/1 |
- Note: For more than 4-cores, the current ratings may be calculated from the following formula (IN=I1/ ³√ N ), I1= Current rating for 1-core, N = Number of cores.
Ambient Temperature Correction Factors :
Ambient Temperature Correction Factors |
35 |
40 |
45 |
50 |
55 |
60 |
65 |
70 |
75 |
80 |
Rating Factor |
1.1 |
1.05 |
1.0 |
0.94 |
0.88 |
0.82 |
0.74 |
0.67 |
0.58 |
0.47 |
Mechanical and Thermal Properties :
- Bending Radius : 8×OD (during installation); 6×OD (fixed installed).
- Temperature Range : -20℃ ~ +90℃.
Dimensions and Weight :
Construction No. of cores×Cross section (mm²) |
Nominal Insulation Thickness
mm |
Nominal Sheath Thickness
mm |
Nominal Overall Diameter
mm |
Nominal Weight kg/km |
1×1.5 |
1.0 |
1.0 |
6.4 |
65 |
1×2.5 |
1.0 |
1.0 |
6.8 |
75 |
1×4 |
1.0 |
1.0 |
7.4 |
95 |
1×6 |
1.0 |
1.0 |
7.9 |
120 |
1×10 |
1.0 |
1.1 |
8.8 |
170 |
1×16 |
1.0 |
1.1 |
10.2 |
240 |
1×25 |
1.2 |
1.2 |
12.0 |
360 |
1×35 |
1.2 |
1.2 |
13.1 |
455 |
1×50 |
1.4 |
1.3 |
14.7 |
600 |
1×70 |
1.4 |
1.4 |
16.6 |
805 |
1×95 |
1.6 |
1.5 |
19.0 |
1095 |
1×120 |
1.6 |
1.5 |
20.6 |
1345 |
1×150 |
1.8 |
1.6 |
22.7 |
1635 |
1×185 |
2.0 |
1.7 |
25.2 |
2070 |
1×240 |
2.2 |
1.8 |
28.4 |
2655 |
1×300 |
2.4 |
1.9 |
31.1 |
3335 |
2×1.5 |
1.0 |
1.1 |
10.3 |
155 |
2×2.5 |
1.0 |
1.2 |
11.0 |
190 |
2×4 |
1.0 |
1.2 |
12.3 |
250 |
2×6 |
1.0 |
1.3 |
13.4 |
310 |
2×10 |
1.0 |
1.3 |
15.6 |
445 |
2×16 |
1.0 |
1.4 |
18.2 |
635 |
2×25 |
1.2 |
1.6 |
22.0 |
970 |
2×35 |
1.2 |
1.7 |
24.0 |
1215 |
2×50 |
1.4 |
1.8 |
27.4 |
1615 |
2×70 |
1.4 |
1.9 |
32.6 |
2335 |
2×95 |
1.6 |
2.1 |
37.6 |
3155 |
2×120 |
1.6 |
2.3 |
41.2 |
3875 |
2×150 |
1.8 |
2.4 |
45.4 |
4725 |
2×185 |
2.0 |
2.6 |
50.2 |
5845 |
2×240 |
2.2 |
2.8 |
56.8 |
7570 |
2×300 |
2.4 |
3.1 |
63.0 |
9395 |
3×1.5 |
1.0 |
1.2 |
10.9 |
180 |
3×2.5 |
1.0 |
1.2 |
11.9 |
230 |
3×4 |
1.0 |
1.2 |
13.1 |
295 |
3×6 |
1.0 |
1.3 |
14.2 |
375 |
3×10 |
1.0 |
1.4 |
16.5 |
550 |
3×16 |
1.0 |
1.5 |
19.3 |
795 |
3×25 |
1.2 |
1.6 |
23.5 |
1220 |
3×35 |
1.2 |
1.7 |
25.6 |
1545 |
3×50 |
1.4 |
1.9 |
29.5 |
2075 |
3×70 |
1.4 |
2.0 |
33.2 |
2775 |
3×95 |
1.6 |
2.2 |
38.5 |
3800 |
3×120 |
1.6 |
2.4 |
42.0 |
4685 |
3×150 |
1.8 |
2.5 |
46.3 |
5685 |
3×185 |
2.0 |
2.7 |
51.8 |
7215 |
3×240 |
2.2 |
3.0 |
58.0 |
9320 |
3×300 |
2.4 |
3.2 |
67.6 |
12280 |
4×1.5 |
1.0 |
1.2 |
12.1 |
225 |
4×2.5 |
1.0 |
1.2 |
13.0 |
275 |
4×4 |
1.0 |
1.3 |
14.5 |
365 |
4×6 |
1.0 |
1.4 |
15.8 |
490 |
4×10 |
1.0 |
1.4 |
18.4 |
695 |
4×16 |
1.0 |
1.5 |
21.5 |
1005 |
4×25 |
1.2 |
1.7 |
26.1 |
1550 |
4×35 |
1.2 |
1.8 |
28.5 |
1970 |
4×50 |
1.4 |
2.0 |
32.8 |
2645 |
4×70 |
1.4 |
2.2 |
36.9 |
3545 |
4×95 |
1.6 |
2.4 |
42.8 |
4850 |
4×120 |
1.6 |
2.6 |
46.5 |
5965 |
4×150 |
1.8 |
2.8 |
54.6 |
8020 |
4×185 |
2.0 |
3.0 |
60.3 |
9930 |
4×240 |
2.2 |
3.3 |
68.4 |
12920 |
4×300 |
2.4 |
3.5 |
75.5 |
15995 |
5×1.5 |
1.0 |
1.3 |
14.3 |
265 |
6×1.5 |
1.0 |
1.3 |
15.6 |
305 |
7×1.5 |
1.0 |
1.3 |
15.6 |
320 |
8×1.5 |
1.0 |
1.4 |
18.4 |
425 |
9×1.5 |
1.0 |
1.5 |
19.9 |
440 |
10×1.5 |
1.0 |
1.5 |
20.2 |
495 |
12×1.5 |
1.0 |
1.5 |
20.9 |
530 |
14×1.5 |
1.0 |
1.6 |
21.9 |
630 |
16×1.5 |
1.0 |
1.6 |
23.3 |
690 |
19×1.5 |
1.0 |
1.6 |
24.6 |
790 |
20×1.5 |
1.0 |
1.7 |
26.1 |
880 |
23×1.5 |
1.0 |
1.8 |
28.4 |
1030 |
24×1.5 |
1.0 |
1.8 |
29.2 |
1035 |
27×1.5 |
1.0 |
1.8 |
29.9 |
1080 |
30×1.5 |
1.0 |
1.9 |
31.1 |
1250 |
33×1.5 |
1.0 |
1.9 |
32.3 |
1335 |
37×1.5 |
1.0 |
2.0 |
33.8 |
1445 |
44×1.5 |
1.0 |
2.2 |
38.4 |
1765 |
5×2.5 |
1.0 |
1.3 |
14.5 |
340 |
6×2.5 |
1.0 |
1.4 |
17.0 |
395 |
7×2.5 |
1.0 |
1.4 |
17.0 |
420 |
8×2.5 |
1.0 |
1.5 |
20.0 |
535 |
9×2.5 |
1.0 |
1.5 |
21.5 |
560 |
10×2.5 |
1.0 |
1.5 |
21.8 |
620 |
12×2.5 |
1.0 |
1.6 |
22.7 |
680 |
14×2.5 |
1.0 |
1.6 |
23.9 |
810 |
16×2.5 |
1.0 |
1.7 |
25.4 |
895 |
19×2.5 |
1.0 |
1.7 |
26.8 |
1000 |
20×2.5 |
1.0 |
1.8 |
28.4 |
1140 |
23×2.5 |
1.0 |
1.9 |
30.9 |
1325 |
24×2.5 |
1.0 |
1.9 |
31.8 |
1340 |
27×2.5 |
1.0 |
1.9 |
32.5 |
1395 |
30×2.5 |
1.0 |
2.0 |
33.9 |
1620 |
33×2.5 |
1.0 |
2.0 |
35.2 |
1735 |
37×2.5 |
1.0 |
2.1 |
36.8 |
1865 |
44×2.5 |
1.0 |
2.3 |
41.8 |
2295 |
|
