Applications :
- These cables are flame retardant, low smoke and halogen free, used for living, quarter and office areas.
Standards :
-
| IEC 60092-376 |
IEC 60092-351 |
| IEC 60092-359 |
IEC 60332-1 |
| IEC 60332-3-22 |
IEC 60754-1,2 |
| IEC 61034-1,2 |
NEK 606:2004 |

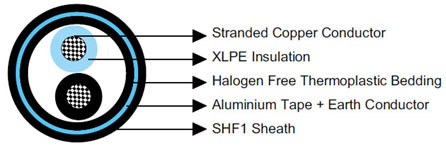

Construction :
- Conductors : Circular stranded copper wire to IEC 60228 class 2.
- Insulation : XLPE.
- Bedding : Halogen free thermoplastic compound.
- Metal Screen : Longitudinal aluminium tape, thickness 0.2 mm in contact with a stranded copper earth conductor.
- Outer Sheath : Halogen free thermoplastic compound, SHF1, coloured grey.
Electrical Characteristics :
-
| Nominal Cross Section Area |
mm² |
2.5 |
| Maximum Resistant@20℃ |
Ω/km |
7.41 |
| Continuous Current Rating@45℃2 Core |
A |
26 |
| Short Circuit Current 1s |
A |
360 |
| Operating Voltage |
V |
250 |
Mechanical and Thermal Properties :
- Bending Radius : 8×OD (during installation); 6×OD (fixed installed).
- Temperature Range : -20℃ ~ +90℃.
Dimensions and Weight :
Construction No. of elements×No. of cores in element×Cross section
(mm²) |
Nominal Insulation Thickness
mm |
Nominal Sheath Thickness
mm |
Nominal Overall Diameter
mm |
Nominal Weight
kg/km |
| Inner |
Outer |
| 2×1×2.5 |
0.7 |
1.1 |
1.2 |
10.0 |
180 |
|
