Cat5E UTP/FTP Armoured Data Cable
Applications :
- Cat5E Cable is a cable standard for Gigabit Ethernet and other network protocol, suitable for basic voice and data installations up to 100 MHz. In addition, these cables are with copper wire braid armoured & flame retardant mud resistant outer sheath, providing additional mechanically protection still maintaining the flexibility of the cable.
Standards :
-
IEC 60332-3-22 |
IEC 60754-1,2 |
IEC 61034-1,2 |
NEK 606:2004 |

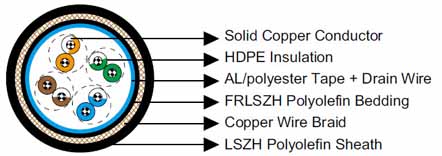

Construction :
- Conductors : 24AWG solid bare copper.
- Insulation : HDPE.
- Twinning : Two coloured insulated conductors twisted together to form a pair.
- Bedding : Flame retardant, low smoke and halogen-free polyolefin, coloured black.
- Armour : 0.2/0.3mm copper wire braid.
- Outer Sheath : Low smoke and halogen-free polyolefin.
Optional :
- Cat5E F/UTP : These cables have collective shielding of aluminium/Polyester tape with drain wire.
- Cat5E SF/UTP :These cables have double collective shieldings of aluminium/Polyester tape & copper wire braid with drain wire
Electrical Characteristics :
-
AWG |
|
18 |
Nominal Conductor Diameter |
mm |
1.0 |
Maximum DC Resistant@20℃ |
Ω/100m |
9.38 |
Maximum DCR Unbalance |
% |
5 |
Maximum Mutual Capacitance |
pF/m |
55.8 |
Maximum Capacitance Unbalance |
pF/100m |
330 |
Characteristic Impedance@1-100MHz |
Ω |
100+/-15 |
Maximum Propagation Delay Skew |
ns/100m |
45 |
FREQ MHz |
Maximum Attenuation dB/100m |
Minimum NEXT dB |
Minimum PSNEXT dB |
Minimum ELFEXT dB/100m |
Minimum PSELFEXT dB/100m |
Minimum RL dB |
0.772 |
1.8 |
67.0 |
64.0 |
66.0 |
63.0 |
— |
1 |
2.0 |
65.3 |
62.3 |
63.8 |
60.8 |
20.0 |
4 |
4.1 |
56.3 |
53.3 |
51.7 |
48.7 |
23.0 |
8 |
5.8 |
51.8 |
48.8 |
45.7 |
42.7 |
24.5 |
10 |
6.5 |
50.3 |
47.3 |
43.8 |
40.8 |
25.0 |
16 |
8.2 |
47.3 |
44.3 |
39.7 |
36.7 |
25.0 |
20 |
9.3 |
45.8 |
42.8 |
37.7 |
34.7 |
25.0 |
25 |
10.4 |
44.3 |
41.3 |
35.8 |
32.8 |
24.3 |
31.25 |
11.7 |
42.9 |
39.9 |
33.9 |
30.9 |
23.6 |
62.5 |
17.0 |
38.4 |
35.4 |
27.8 |
24.8 |
21.5 |
100 |
22.0 |
35.3 |
32.3 |
23.8 |
20.8 |
20.1 |
Mechanical and Thermal Properties :
- Bending Radius : 8×OD (during installation); 4×OD (fixed installed).
- Temperature Range : -30℃ ~ +75℃.
Dimensions and Weight :
Construction No. of elements×No. of cores in element×Conductor diameter
(mm²) |
Nominal Insulation Thickness
mm |
Nominal Sheath Thickness
mm |
Nominal Overall Diameter
mm |
Nominal Weight
kg/km |
Inner |
Outer |
4×2×0.53 |
0.2 |
0.8 |
1.2 |
11.2 |
208 |
|
