   EN 50288-7 Instrumentation Cables
PE Insulated, LSZH Sheathed, Individual and Overall Screened & Armoured Instrumentation Cables
(Multipair)

RE-2Y(st)HSWAH PiMF 90°C / 300V

EN 50288-7 Instrumentation Cables

STANDARDS
Basic design to EN 50288-7

APPLICATION
The armoured LSZH sheathed cables are generally used when the risk of mechanical damage is increased. The galvanized steel wire armour provides excellent protection. Generally, the cables are used within industrial process manufacturing plants for communication, data and voice transmission signals and services. Also used for the  interconnection of electrical equipment and instruments, the LSZH sheath can reduce toxic smoke and fume emission.

FIRE PERFORMANCE

Flame Retardance (Single Vertical Wire Test) EN 60332-1-2; IEC 60332-1-2; BS EN 60332-1-2; VDE 0482-332-1; NBN C 30-004 (cat. F1); NF C32-070-2.1(C2);
CEI 20-35/1-2; EN 50265-2-1*; DIN VDE 0482-265-2-1*
Reduced Fire Propagation   (Vertically-mounted bundled wires & cable test) EN 60332-3-24 (cat. C); IEC 60332-3-24; BS EN 60332-3-24; VDE 0482-332-3; NBN C 30-004 (cat. F2); NF C32-070-2.2(C1); CEI 20-22/3-4; EN 50266-2-4*; DIN VDE 0482-266-2-4
Halogen Free IEC 60754-1; EN 50267-2-1; DIN VDE 0482-267-2-1;
CEI 20-37/2-1 ; BS 6425-1*
No Corrosive Gas Emission IEC 60754-2; EN 50267-2-2; DIN VDE 0482-267-2-2;
CEI 20-37/2-2 ; BS 6425-2*
Minimum Smoke Emission IEC 61034-1&2; EN 61034 -1&2; DIN VDE 0482-1034-1&2;
CEI 20-37/3-1&2; EN 50268-1&2*; BS 7622-1&2*
No Toxic gases NES 02-713; NF C 20-454
Sunlight Resistance UL 1581 section 1200
Oil Resistance ICEA S-73-532**

Note: Asterisk * denotes superseded standard, **Test temperature +60°C, duration 4h. Retention: min 60%
of tensite strength/min.60% of elongation.

VOLTAGE RATING
300V

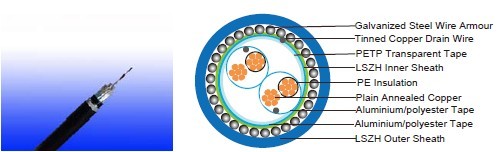

CABLE CONSTRUCTION
Conductor: Annealed copper solid or plain copper stranded to IEC 60228 Class 2.
Insulation: PE compound, EN 50290. 2-23.
Pairs: Two insulated conductors uniformly twisted together with a lay not exceeding 100mm
Individual Screen: Aluminium/polyester tape is applied over the laid up pairs metallic side down in contact with tinned copper drain wire, 0.5mm²
Binder tape: PETP transparent tape
Overall Screen: Aluminium/polyester tape is applied over the laid up pairs metallic side down in contact with tinned copper drain wire, 0.5mm²
Inner Sheath: LSZH(Low Smoke Zero Halogen) sheath
Amouring: Galvanized steel wire armour
Outer Sheath: Thermoplastic LSZH compound type LTS3 as per BS 7655-6.1 (Thermosetting LSZH compound type SW2-SW4 as per BS 7655-2.6 can be offered.). UV resistance, hydrocarbon resistance, oil resistance, anti rodent and anti termite properties can be offered as option.

COLOUR CODE
Insulation: Black / White, continuously numbered on white core(1, 2..)for multipair.
Outer Sheath: Black or blue for intrinsically safe systems

Physical AND THERMAL PROPERTIES
Temperature Range During Operation (Fixed State): -30°C – +90°C
Temperature Range During Installation (Mobile State): -20°C – +50°C
Minimum Bending Radius:  10 X Overall Diameter

CONSTRUCTION PARAMETERS

Caledonian Cable Code

RE-2X(St)HSWAH PiMF

No. of  Pairsx2 xCross  Section

 Nominal Insulation Thick -ness Nominal Inner Sheath Thick -ness Nominal Overall  Diameter  Over Inner   Sheath Nominal Armour  Wire  Diameter Nominal Outer Sheath Thick -ness Nominal Overall Diameter Approx.  Weight

No.x2xmm2

 mm2  mm  mm  mm  mm mm  kg/km

0.5mm2, Multipair
RE-2X(St)HSWAH PiMF 2P0.5

2x2x0.5

 0.35 0.9 8.7 0.9 1.4 13.3 311
RE-2X(St)HSWAH PiMF 4P0.5

4x2x0.5

 0.35 1.0 10.2 0.9 1.4 14.8 374
RE-2X(St)HSWAH PiMF 5P0.5

5x2x0.5

 0.35 1.0 11.2 0.9 1.4 15.8 451
RE-2X(St)HSWAH PiMF 6P0.5

6x2x0.5

 0.35 1.0 12.1 0.9 1.6 16.9 484
RE-2X(St)HSWAH PiMF 8P0.5

8x2x0.5

 0.35 1.1 13.1 0.9 1.6 17.9 563
RE-2X(St)HSWAH PiMF 10P0.5

10x2x0.5

 0.35 1.2 15.1 0.9 1.5 19.9 782
RE-2X(St)HSWAH PiMF 12P0.5

12x2x0.5

 0.35 1.2 15.7 0.9 1.5 20.5 804
RE-2X(St)HSWAH PiMF 16P0.5

16x2x0.5

 0.35 1.2 17.8 1.25 1.6 23.5 970
RE-2X(St)HSWAH PiMF 20P0.5

20x2x0.5

 0.35 1.3 19.7 1.25 1.7 25.6 1145
RE-2X(St)HSWAH PiMF 24P0.5

24x2x0.5

 0.35 1.4 21.5 1.25 1.7 27.4 1272

0.75mm2, Multipair
RE-2X(St)HSWAH PiMF 2P0.75

2x2x0.75

 0.38 1.0 9.7 0.9 1.4 14.3 342
RE-2X(St)HSWAH PiMF 4P0.75

3x2x0.75

 0.38 1.0 11.2 0.9 1.4 15.8 439
RE-2X(St)HSWAH PiMF 5P0.75

4x2x0.75

 0.38 1.1 12.5 0.9 1.5 17.3 498
RE-2X(St)HSWAH PiMF 6P0.75

5x2x0.75

 0.38 1.1 13.6 0.9 1.5 18.4 565
RE-2X(St)HSWAH PiMF 8P0.75

8x2x0.75

 0.38 1.1 14.4 0.9 1.5 19.2 639
RE-2X(St)HSWAH PiMF 10P0.75

10x2x0.75

 0.38 1.2 16.6 1.25 1.6 22.3 878
RE-2X(St)HSWAH PiMF 12P0.75

12x2x0.75

 0.38 1.2 17.4 1.25 1.6 23.1 944
RE-2X(St)HSWAH PiMF 16P0.75

16x2x0.75

 0.38 1.3 19.8 1.25 1.7 25.7 1132
RE-2X(St)HSWAH PiMF 20P0.75

20x2x0.75

 0.38 1.4 22.0 1.25 1.7 27.9 1329
RE-2X(St)HSWAH PiMF 24P0.75

24x2x0.75

 0.38 1.5 24.0 1.25 1.8 30.1 1488

1.0mm2, Multipair
RE-2X(St)HSWAH PiMF 2P1.0

2x2x1.0

 0.4 1.0 10.4 0.9 1.4 15.0 377
RE-2X(St)HSWAH PiMF 4P1.0

3x2x1.0

 0.4 1.0 12.1 0.9 1.4 16.7 502
RE-2X(St)HSWAH PiMF 5P1.0

4x2x1.0

 0.4 1.1 13.5 0.9 1.5 18.3 567
RE-2X(St)HSWAH PiMF 6P1.0

5x2x1.0

 0.4 1.1 14.7 0.9 1.5 19.5 658
RE-2X(St)HSWAH PiMF 8P1.0

8x2x1.0

 0.4 1.2 15.8 0.9 1.5 20.6 865
RE-2X(St)HSWAH PiMF 10P1.0

10x2x1.0

 0.4 1.2 18.0 1.25 1.6 23.7 994
RE-2X(St)HSWAH PiMF 12P1.0

12x2x1.0

 0.4 1.3 19.0 1.25 1.7 24.7 1112
RE-2X(St)HSWAH PiMF 16P1.0

16x2x1.0

 0.4 1.3 21.5 1.25 1.7 27.4 1363
RE-2X(St)HSWAH PiMF 20P1.0

20x2x1.0

 0.4 1.4 23.9 1.25 1.7 29.8 1512
RE-2X(St)HSWAH PiMF 24P1.0

24x2x1.0

 0.4 1.5 26.1 1.25 1.8 32.2 1996

1.3mm2, Multipair
RE-2X(St)HSWAH PiMF 2P1.3

2x2x1.3

 0.45 1.0 11.4 0.9 1.4 16.0 452
RE-2X(St)HSWAH PiMF 4P1.3

3x2x1.3

 0.45 1.1 13.4 0.9 1.5 18.2 577
RE-2X(St)HSWAH PiMF 5P1.3

4x2x1.3

 0.45 1.1 14.8 0.9 1.5 19.6 647
RE-2X(St)HSWAH PiMF 6P1.3

5x2x1.3

 0.45 1.2 16.3 0.9 1.6 21.3 858
RE-2X(St)HSWAH PiMF 8P1.3

8x2x1.3

 0.45 1.3 17.6 1.25 1.6 23.3 982
RE-2X(St)HSWAH PiMF 10P1.3

10x2x1.3

 0.45 1.3 20.0 1.25 1.7 25.9 1153
RE-2X(St)HSWAH PiMF 12P1.3

12x2x1.3

 0.45 1.4 21.1 1.25 1.7 27.0 1287
RE-2X(St)HSWAH PiMF 16P1.3

16x2x1.3

 0.45 1.5 24.1 1.25 1.8 30.2 1564
RE-2X(St)HSWAH PiMF 20P1.3

20x2x1.3

 0.45 1.6 26.8 1.25 1.9 33.1 1960
RE-2X(St)HSWAH PiMF 24P1.3

24x2x1.3

 0.45 1.7 29.2 1.25 2.0 36.4 2356

1.5mm2, Multipair
RE-2X(St)HSWAH PiMF 2P1.5

2x2x1.5

 0.45 1.0 11.8 0.9 1.5 16.6 475
RE-2X(St)HSWAH PiMF 4P1.5

3x2x1.5

 0.45 1.1 13.9 0.9 1.5 18.7 616
RE-2X(St)HSWAH PiMF 5P1.5

4x2x1.5

 0.45 1.2 15.5 0.9 1.5 20.3 819
RE-2X(St)HSWAH PiMF 6P1.5

5x2x1.5

 0.45 1.2 16.9 1.25 1.6 22.6 941
RE-2X(St)HSWAH PiMF 8P1.5

8x2x1.5

 0.45 1.3 18.2 1.25 1.7 24.1 1039
RE-2X(St)HSWAH PiMF 10P1.5

10x2x1.5

 0.45 1.4 21.0 1.25 1.7 26.9 1242
RE-2X(St)HSWAH PiMF 12P1.5

12x2x1.5

 0.45 1.4 21.9 1.25 1.7 27.8 1387
RE-2X(St)HSWAH PiMF 16P1.5

16x2x1.5

 0.45 1.5 25.1 1.25 1.8 31.2 1935
RE-2X(St)HSWAH PiMF 20P1.5

20x2x1.5

 0.45 1.6 27.8 1.25 1.9 34.8 2227
RE-2X(St)HSWAH PiMF 24P1.5

24x2x1.5

 0.45 1.7 30.4 1.25 2.0 37.6 2545

Note : Other conductor sizes & core configurations are available upon request

Electrical PROPERTIES

Conductor Area Size   mm 2   0.5  0.75   1.0   1.3 1.5
Insulation thickness (nominal) mm 0.4 0.4 0.4 0.45 0.45
Conductor resistance (20°C)   Ω/km  36.7 25 18.5 14.2 12.3
Insulation resistance (20°C) MΩ.km(Min.) 5000
Mutual Capacitance (1 kHz)  pF/m(Max.) 115
Inductance mH/km (Max.) 1
L / R (ratio) (max.) μH/Ω 25 25 25 40 40
Operating voltage Urms V 300

Test Voltage

 Core to Core  V  1500
Core to Screen  V  1500
