PVC Insulated, PVC Sheathed & Overall Screened Instrumentation Cables (Multitriple)
RE-Y(St)Y 90°C / 300 V
APPLICATION:
EN 50228-7 cables are used for transmission of analogue and digital signals in instrument and control systems; allowed for use
in zone 1 and zone 2, group II, classified areas (IEC 79-14), not allowed for direct connection to low
impedance sources, e.g. public mains electricity supply.
Recommended for indoor and outdoor installation, on racks, trays, in conduits, in dry and wet
locations; not for direct burial.
Recommended for use as fire protection measure for people and important material assets.
STANDARDS
Basic design to EN50288-7
FIRE PERFORMANCE
| Flame Retardance (Single Vertical Wire Test) |
EN 60332-1-2; IEC 60332-1-2; BS EN 60332-1-2; VDE 0482-332-1; NBN C 30-004 (cat. F1); NF C32-070-2.1(C2); CEI 20-35/1-2; EN 50265-2-1*; DIN VDE 0482-265-2-1* |
| Reduced Fire Propagation (Vertically-mounted bundled wires & cable test)*** |
EN 60332-3-24 (cat. C); IEC 60332-3-24; BS EN 60332-3-24; VDE 0482-332-3; NBN C 30-004 (cat. F2); NF C32-070-2.2(C1); CEI 20-22/3-4; EN 50266-2-4*; DIN VDE 0482-266-2-4 |
| Halogen Free |
IEC 60754-1; EN 50267-2-1; DIN VDE 0482-267-2-1; CEI 20-37/2-1 ; BS 6425-1* |
| No Corrosive Gas Emission |
IEC 60754-2; EN 50267-2-2; DIN VDE 0482-267-2-2; CEI 20-37/2-2 ; BS 6425-2* |
| Minimum Smoke Emission |
IEC 61034-1&2; EN 61034 -1&2; DIN VDE 0482-1034-1&2; CEI 20-37/3-1&2; EN 50268-1&2*; BS 7622-1&2* |
| No Toxic gases |
NES 02-713; NF C 20-454 |
Note:Asterisk * denotes superseded standard, *** denotes optional.
VOLTAGE RATING
300V

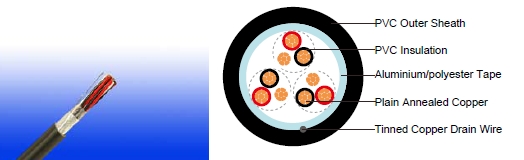

CABLE CONSTRUCTION
Conductor: Annealed copper solid or plain copper stranded to IEC 60228 Class 2.
Insulation: PVC compound as per EN 50290-2-21.
Triple: Three conductors twisted to form a triple
Lay-up: Triples laid up in layers of optimum pitch
Separator: Polyester tape
Overall Screen: Aluminium/polyester tape with tinned copper drain wire, 0.5mm2
Outer Sheath: Thermoplastic PVC compound as per EN 50290-2-22. UV resistance, hydrocarbon
resistance, oil resistance, anti rodent and anti termite properties can be offered as option.
Compliance to fire performance standard (IEC 60332-1, IEC 60332-3, UL 1581, UL 1666 etc)
depends on the oxygen index of the PVC compound and the overall cable design. LSPVC can also
be provided upon request.
COLOUR CODE
Insulation: Black / White / Red, continuously numbered on white core(1, 2..)for multitriples.
Outer Sheath: Black or blue for intrinsically safe systems
Physical AND THERMAL PROPERTIES
Temperature Range During Operation (Fixed State): -30°C – +90°C
Temperature Range During Installation (Mobile State): -5°C – +50°C
Minimum Bending Radius: 7.5 X Overall Diameter
Sunlight Resistance: UL 1581 section 1200
Oil Resistance: ICEA S-73-532(Test temperature +60°C, duration 4h. Retention: min 60% of tensile
strength/min.60% of elongation)
Electrical PROPERTIES
| Conductor Area Size |
mm 2 |
0.5 |
0.75 |
1.0 |
1.3 |
1.5 |
| Insulation thickness (nominal) |
mm |
0.35 |
0.38 |
0.4 |
0.45 |
0.45 |
| Conductor resistance (20°C) |
Ω/km |
36.7 |
25.0 |
18.5 |
14.2 |
12.3 |
| Insulation resistance (20°C) |
MΩ.km(Min.) |
5000 |
| Mutual Capacitance (1 kHz) |
up to 4 trples pF/m(Max.) |
90 |
90 |
90 |
102 |
102 |
| |
above 4 trples pF/m(Max.) |
75 |
75 |
75 |
85 |
85 |
| Inductance |
mH/km(Max.) |
1 |
| L / R (ratio) (max.) |
μH/Ω |
25 |
25 |
25 |
40 |
40 |
| Operating voltage |
V |
300 |
| Test Voltage Urms |
Core to Core |
V |
1500 |
| Core to Screen |
V |
1500 |
CONSTRUCTION PARAMETERS
| Caledonian Cable Code |
RE-Y(St)Y |
| No. of Triples x3xCross Section |
Nominal Insulation Thickness |
Nominal Outer Sheath Thickness |
Nominal Overall Diameter |
Approx. Weight |
| |
No.x3xmm2 |
mm |
mm |
mm |
kg/km |
| 0.5mm2 , Multi-striple |
| RE-Y(St)Y 2T0.5 |
2x3x0,50 |
0.35 |
0.9 |
8.4 |
91 |
| RE-Y(St)Y 4T0.5 |
4x3x0,50 |
0.35 |
1.0 |
9.8 |
123 |
| RE-Y(St)Y 5T0.5 |
5x3x0,50 |
0.35 |
1.0 |
10.8 |
155 |
| RE-Y(St)Y 6T0.5 |
6x3x0,50 |
0.35 |
1.0 |
12.1 |
185 |
| RE-Y(St)Y 8T0.5 |
8x3x0,50 |
0.35 |
1.1 |
13.1 |
221 |
| RE-Y(St)Y 10T0.5 |
10x3x0,50 |
0.35 |
1.1 |
14.7 |
275 |
| RE-Y(St)Y 12T0.5 |
12x3x0,50 |
0.35 |
1.1 |
15.2 |
316 |
| RE-Y(St)Y 16T0.5 |
16x3x0,50 |
0.35 |
1.2 |
17.4 |
414 |
| RE-Y(St)Y 20T0.5 |
20x3x0,50 |
0.35 |
1.2 |
19.1 |
508 |
| RE-Y(St)Y 24T0.5 |
24x3x0,50 |
0.35 |
1.3 |
20.9 |
594 |
| 0.75mm2 , Multi-striple |
| RE-Y(St)Y 2T0.75 |
2x3x0,75 |
0.38 |
0.9 |
9.3 |
114 |
| RE-Y(St)Y 4T0.75 |
4x3x0,75 |
0.38 |
1.0 |
10.9 |
163 |
| RE-Y(St)Y 5T0.75 |
5x3x0,75 |
0.38 |
1.0 |
12.0 |
199 |
| RE-Y(St)Y 6T0.75 |
6x3x0,75 |
0.38 |
1.1 |
13.7 |
245 |
| RE-Y(St)Y 8T0.75 |
8x3x0,75 |
0.38 |
1.1 |
14.7 |
296 |
| RE-Y(St)Y 10T0.75 |
10x3x0,75 |
0.38 |
1.2 |
16.7 |
366 |
| RE-Y(St)Y 12T0.75 |
12x3x0,75 |
0.38 |
1.2 |
17.3 |
423 |
| RE-Y(St)Y 16T0.75 |
16x3x0,75 |
0.38 |
1.3 |
19.7 |
555 |
| Caledonian Cable Code |
RE-Y(St)Y |
| No. of Triples x3xCross Section |
Nominal Insulation Thickness |
Nominal Outer Sheath Thickness |
Nominal Overall Diameter |
Approx. Weight |
| |
No.x3xmm2 |
mm |
mm |
mm |
kg/km |
| RE-Y(St)Y 20T0.75 |
20x3x0,75 |
0.38 |
1.3 |
21.7 |
681 |
| RE-Y(St)Y 24T0.75 |
24x3x0,75 |
0.38 |
1.4 |
23.7 |
802 |
| 1.0mm2 , Multi-striple |
| RE-Y(St)Y 2T1.0 |
2x3x1 |
0.4 |
1.0 |
10.4 |
135 |
| RE-Y(St)Y 4T1.0 |
4x3x1 |
0.4 |
1.0 |
11.9 |
202 |
| RE-Y(St)Y 5T1.0 |
5x3x1 |
0.4 |
1.0 |
13.2 |
251 |
| RE-Y(St)Y 6T1.0 |
6x3x1 |
0.4 |
1.1 |
15.0 |
303 |
| RE-Y(St)Y 8T1.0 |
8x3x1 |
0.4 |
1.1 |
16.1 |
379 |
| RE-Y(St)Y 10T1.0 |
10x3x1 |
0.4 |
1.2 |
18.4 |
461 |
| RE-Y(St)Y 12T1.0 |
12x3x1 |
0.4 |
1.2 |
19.0 |
544 |
| RE-Y(St)Y 16T1.0 |
16x3x1 |
0.4 |
1.3 |
21.7 |
717 |
| RE-Y(St)Y 20T1.0 |
20x3x1 |
0.4 |
1.4 |
24.1 |
880 |
| RE-Y(St)Y 24T1.0 |
24x3x1 |
0.4 |
1.4 |
26.1 |
1048 |
| 1.3mm2 , Multi-striple |
| RE-Y(St)Y 2T1.3 |
2x3x1,3 |
0.45 |
1.0 |
11.5 |
175 |
| RE-Y(St)Y 4T1.3 |
4x3x1,3 |
0.45 |
1.1 |
13.4 |
258 |
| RE-Y(St)Y 5T1.3 |
5x3x1,3 |
0.45 |
1.1 |
14.8 |
318 |
| RE-Y(St)Y 6T1.3 |
6x3x1,3 |
0.45 |
1.2 |
16.9 |
387 |
| RE-Y(St)Y 8T1.3 |
8x3x1,3 |
0.45 |
1.2 |
18.1 |
474 |
| RE-Y(St)Y 10T1.3 |
10x3x1,3 |
0.45 |
1.3 |
20.7 |
589 |
| RE-Y(St)Y 12T1.3 |
12x3x1,3 |
0.45 |
1.3 |
21.4 |
695 |
| RE-Y(St)Y 16T1.3 |
16x3x1,3 |
0.45 |
1.4 |
24.4 |
918 |
| RE-Y(St)Y 20T1.3 |
20x3x1,3 |
0.45 |
1.5 |
27.1 |
1124 |
| RE-Y(St)Y 24T1.3 |
24x3x1,3 |
0.45 |
1.6 |
29.6 |
1336 |
| 1.5mm2 , Multi-striple |
| RE-Y(St)Y 2T1.5 |
2x3x1,5 |
0.45 |
1.0 |
11.9 |
191 |
| RE-Y(St)Y 4T1.5 |
4x3x1,5 |
0.45 |
1.1 |
14.0 |
287 |
| RE-Y(St)Y 5T1.5 |
5x3x1,5 |
0.45 |
1.1 |
15.4 |
355 |
| RE-Y(St)Y 6T1.5 |
6x3x1,5 |
0.45 |
1.2 |
17.6 |
432 |
| RE-Y(St)Y 8T1.5 |
8x3x1,5 |
0.45 |
1.3 |
19.1 |
540 |
| Caledonian Cable Code |
RE-Y(St)Y |
| No. of Triples x3xCross Section |
Nominal Insulation Thickness |
Nominal Outer Sheath Thickness |
Nominal Overall Diameter |
Approx. Weight |
| |
No.x3xmm2 |
mm |
mm |
mm |
kg/km |
| RE-Y(St)Y 10T1.5 |
10x3x1,5 |
0.45 |
1.3 |
21.6 |
672 |
| RE-Y(St)Y 12T1.5 |
12x3x1,5 |
0.45 |
1.4 |
22.5 |
779 |
| RE-Y(St)Y 16T1.5 |
16x3x1,5 |
0.45 |
1.5 |
25.7 |
1031 |
| RE-Y(St)Y 20T1.5 |
20x3x1,5 |
0.45 |
1.6 |
28.6 |
1265 |
| RE-Y(St)Y 24T1.5 |
24x3x1,5 |
0.45 |
1.7 |
31.1 |
1508 |
Note : Other conductor sizes & core configurations are available upon request
