Pe Insulated, PVc sheathed, overall screened & armoured Instrumentation cables
(Multicore)
re-2Y(st)YsWaY 90°c / 500V
APPLICATION
EN 50288-7 cables are used for transmission of analogue and digital signals in instrument and control systems; allowed for use
in zone 1 and zone 2, group II, classified areas (IEC 79-14), not allowed for direct connection to low
impedance sources, e.g. public mains electricity supply.
Recommended for indoor and outdoor installation, on racks, trays, in conduits, in dry and wet
locations; not for direct burial.
Recommended for use as fire protection measure for people and important material assets.
STANDARDS
Basic design to EN 50288-7
FIRE PERFORMANCE
| Flame Retardance (Single Vertical Wire Test) | EN 60332-1-2; IEC 60332-1-2; BS EN 60332-1-2; VDE 0482-332-1; NBN C 30-004 (cat. F1); NF C32-070-2.1(C2); CEI 20-35/1-2; EN 50265-2-1*; DIN VDE 0482-265-2-1* |
| Reduced Fire Propagation(Vertically-mounted bundled wires & cable test) | EN 60332-3-24 (cat. C); IEC 60332-3-24; BS EN 60332-3-24; VDE 0482-332-3; NBN C 30-004 (cat. F2); NF C32-070-2.2(C1); CEI 20-22/3-4; EN 50266-2-4*; DIN VDE 0482-266-2-4 |
| Halogen Free | IEC 60754-1; EN 50267-2-1; DIN VDE 0482-267-2-1; CEI 20-37/2-1 ; BS 6425-1* |
| No Corrosive Gas Emission | IEC 60754-2; EN 50267-2-2; DIN VDE 0482-267-2-2; CEI 20-37/2-2 ; BS 6425-2* |
| Minimum Smoke Emission | IEC 61034-1&2; EN 61034 -1&2; DIN VDE 0482-1034-1&2; CEI 20-37/3-1&2; EN 50268-1&2*; BS 7622-1&2* |
| No Toxic gases | NES 02-713; NF C 20-454 |
| Sunlight Resistance | UL 1581 section 1200 |
| Oil Resistance | ICEA S-73-532** |
Note: Asterisk * denotes superseded standard, **Test temperature +60°C, duration 4h. Retention: min 60% of tensite strength/min.60% of elongation.
VOLTAGE RATING
500V

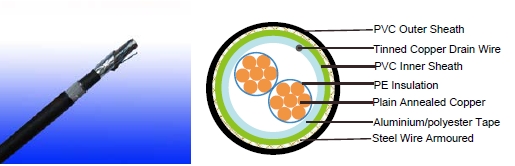

CABLE CONSTRUCTION
Conductor: Annealed copper solid or plain copper stranded to IEC 60228 Class 2.
Insulation: PE compound as per EN 50290. 2-23.
Overall Screen: Aluminium/polyester tape with 0.5mm2 screen (7/0.3mm) tinned copper drain wire.
Inner Sheath: Thermoplastic PVC compound as per EN 50290-2-22.
Armouring: Galvanised steel wire
Outer Sheath: Thermoplastic PVC compound as per EN 50290-2-22. UV resistance, hydrocarbon
resistance, oil resistance, anti rodent and anti termite properties can be offered as option.
COLOUR CODE
Insulation: Black / Blue, continuously numbered on blue core(1, 2..) for wrapped conductor
Outer Sheath: Black or blue for intrinsically safe systems
Physical AND THERMAL PROPERTIES
Temperature Range During Operation (Fixed State): -30°C – +90°C
Temperature Range During Installation (Mobile State): -5°C – +50°C
Minimum Bending Radius: 10 X Overall Diameter
Sunlight Resistance: UL 1581 section 1200
Oil Resistance: ICEA S-73-532(Test temperature +60°C, duration 4h. Retention: min 60% of tensile
strength/min.60% of elongation)
Electrical PROPERTIES
| Conductor Area Size | mm 2 | 0.5 | 0.75 | 1.0 | 1.3 | 1.5 | 2.5 | |
| Insulation thickness (nominal) | mm | 0.55 | 0.55 | 0.55 | 0.6 | 0.6 | 0.7 | |
| Conductor resistance (20°C) | Ω/km | 36.0 | 24.5 | 18.1 | 13.9 | 12.1 | 7.4 | |
| Insulation resistance (20°C) | MΩ.km(Min.) | 5000 | 5000 | 5000 | 5000 | 5000 | 2000 | |
| Mutual Capacitance (1 kHz) | pF/m(Max.) | 115 | 115 | 115 | 115 | 115 | 2000 | |
| Inductance | mH/km(Max.) | 1 | 1 | 1 | 1 | 1 | 1 | |
| L / R (ratio) (max.) | μH/Ω | 25 | 25 | 25 | 40 | 40 | 10 | |
| Operating voltage | V | 500 | ||||||
| Test Voltage Urms | Core to Core | V | 2000 | |||||
| Core to Screen | V | 2000 | ||||||
CONSTRUCTION PARAMETERS
| Caledonian Cable Code | RE-2Y(St)YSWAY | |||||||
| No. of Cores x1xCross Section | Nominal Insulation Thick- ness | Nominal Inner Sheath Thick- ness | Nominal Overall Diameter Over Inner Sheath | Nominal Armour Wire Diameter | Nominal Outer Sheath Thick- ness | Nominal Overall Diameter | Approx. Weight | |
| No.x1xmm2 | mm | mm | mm | mm | mm | mm | kg/km | |
| 0.5mm2, Multicore | ||||||||
| RE-2Y(St)YSWAY 2C0.5 | 2x1x0.5 | 0.55 | 0.9 | 6.2 | 0.9 | 1.3 | 10.6 | 217 |
| RE-2Y(St)YSWAY 4C0.5 | 4x1x0.5 | 0.55 | 0.9 | 6.5 | 0.9 | 1.3 | 10.9 | 230 |
| RE-2Y(St)YSWAY 5C0.5 | 5x1x0.5 | 0.55 | 0.9 | 7.0 | 0.9 | 1.3 | 11.4 | 253 |
| RE-2Y(St)YSWAY 6C0.5 | 6x1x0.5 | 0.55 | 0.9 | 7.6 | 0.9 | 1.3 | 12.0 | 283 |
| RE-2Y(St)YSWAY 8C0.5 | 8x1x0.5 | 0.55 | 1.0 | 9.1 | 0.9 | 1.4 | 13.7 | 337 |
| RE-2Y(St)YSWAY 10C0.5 | 10x1x0.5 | 0.55 | 1.0 | 10.4 | 0.9 | 1.4 | 15.0 | 399 |
| RE-2Y(St)YSWAY 12C0.5 | 12x1x0.5 | 0.55 | 1.0 | 10.7 | 0.9 | 1.4 | 15.3 | 442 |
| RE-2Y(St)YSWAY 14C0.5 | 14x1x0.5 | 0.55 | 1.0 | 11.3 | 0.9 | 1.4 | 15.9 | 474 |
| RE-2Y(St)YSWAY 16C0.5 | 16x1x0.5 | 0.55 | 1.1 | 11.8 | 0.9 | 1.4 | 16.4 | 505 |
| RE-2Y(St)YSWAY 20C0.5 | 20x1x0.5 | 0.55 | 1.1 | 13.3 | 0.9 | 1.5 | 18.1 | 569 |
| RE-2Y(St)YSWAY 24C0.5 | 24x1x0.5 | 0.55 | 1.1 | 14.7 | 0.9 | 1.5 | 19.5 | 659 |
| RE-2Y(St)YSWAY 27C0.5 | 27x1x0.5 | 0.55 | 1.2 | 15.0 | 0.9 | 1.5 | 19.8 | 808 |
| RE-2Y(St)YSWAY 30C0.5 | 30x1x0.5 | 0.55 | 1.2 | 15.7 | 0.9 | 1.5 | 20.5 | 848 |
| RE-2Y(St)YSWAY 37C0.5 | 37x1x0.5 | 0.55 | 1.2 | 16.9 | 0.9 | 1.6 | 21.9 | 963 |
| RE-2Y(St)YSWAY 40C0.5 | 40x1x0.5 | 0.55 | 1.2 | 17.6 | 1.25 | 1.6 | 23.3 | 1014 |
| 0.75mm2, Multicore | ||||||||
| RE-2Y(St)YSWAY 2C0.75 | 2x1x0.75 | 0.55 | 0.9 | 6.5 | 0.9 | 1.3 | 10.9 | 345 |
| RE-2Y(St)YSWAY 3C0.75 | 3x1x0.75 | 0.55 | 0.9 | 6.9 | 0.9 | 1.3 | 11.3 | 420 |
| RE-2Y(St)YSWAY 4C0.75 | 4x1x0.75 | 0.55 | 0.9 | 7.4 | 0.9 | 1.3 | 11.8 | 507 |
| RE-2Y(St)YSWAY 5C0.75 | 5x1x0.75 | 0.55 | 0.9 | 8.1 | 0.9 | 1.4 | 12.7 | 609 |
| RE-2Y(St)YSWAY 8C0.75 | 8x1x0.75 | 0.55 | 1.0 | 9.7 | 0.9 | 1.4 | 14.3 | 846 |
| RE-2Y(St)YSWAY 10C0.75 | 10x1x0.75 | 0.55 | 1.0 | 11.1 | 0.9 | 1.4 | 15.7 | 1035 |
| RE-2Y(St)YSWAY 12C0.75 | 12x1x0.75 | 0.55 | 1.0 | 11.5 | 0.9 | 1.4 | 16.1 | 1183 |
| RE-2Y(St)YSWAY 14C0.75 | 14x1x0.75 | 0.55 | 1.1 | 12.2 | 0.9 | 1.5 | 17.0 | 1334 |
| RE-2Y(St)YSWAY 16C0.75 | 16x1x0.75 | 0.55 | 1.1 | 12.9 | 0.9 | 1.5 | 17.7 | 1495 |
| RE-2Y(St)YSWAY 20C0.75 | 20x1x0.75 | 0.55 | 1.1 | 14.3 | 0.9 | 1.5 | 19.1 | 1823 |
| RE-2Y(St)YSWAY 24C0.75 | 24x1x0.75 | 0.55 | 1.2 | 16.0 | 0.9 | 1.5 | 20.8 | 2258 |
| Caledonian Cable Code | RE-2Y(St)YSWAY | |||||||
| No. of Cores x1xCross Section | Nominal Insulation Thick- ness | Nominal Inner Sheath Thick- ness | Nominal Overall Diameter Over Inner Sheath | Nominal Armour Wire Diameter | Nominal Outer Sheath Thick- ness | Nominal Overall Diameter | Approx. Weight | |
| No.x1xmm2 | mm | mm | mm | mm | mm | mm | kg/km | |
| RE-2Y(St)YSWAY 27C0.75 | 27x1x0.75 | 0.55 | 1.2 | 16.3 | 0.9 | 1.6 | 21.3 | 2482 |
| RE-2Y(St)YSWAY 30C0.75 | 30x1x0.75 | 0.55 | 1.2 | 16.9 | 0.9 | 1.6 | 21.9 | 2713 |
| RE-2Y(St)YSWAY 37C0.75 | 37x1x0.75 | 0.55 | 1.2 | 18.2 | 1.25 | 1.6 | 23.9 | 3231 |
| RE-2Y(St)YSWAY 40C0.75 | 40x1x0.75 | 0.55 | 1.3 | 19.1 | 1.25 | 1.6 | 24.8 | 3483 |
| 1.0mm2, Multicore | ||||||||
| RE-2Y(St)YSWAY 2C1.0 | 2x1x1.0 | 0.55 | 0.9 | 6.9 | 0.9 | 1.3 | 11.3 | 247 |
| RE-2Y(St)YSWAY 3C1.0 | 3x1x1.0 | 0.55 | 0.9 | 7.3 | 0.9 | 1.3 | 11.7 | 270 |
| RE-2Y(St)YSWAY 4C1.0 | 4x1x1.0 | 0.55 | 0.9 | 7.9 | 0.9 | 1.4 | 12.5 | 299 |
| RE-2Y(St)YSWAY 5C1.0 | 5x1x1.0 | 0.55 | 0.9 | 8.6 | 0.9 | 1.4 | 13.2 | 342 |
| RE-2Y(St)YSWAY 8C1.0 | 8x1x1.0 | 0.55 | 1.0 | 10.3 | 0.9 | 1.4 | 14.9 | 417 |
| RE-2Y(St)YSWAY 10C1.0 | 10x1x1.0 | 0.55 | 1.0 | 11.9 | 0.9 | 1.4 | 16.5 | 514 |
| RE-2Y(St)YSWAY 12C1.0 | 12x1x1.0 | 0.55 | 1.0 | 12.2 | 0.9 | 1.5 | 17.0 | 548 |
| RE-2Y(St)YSWAY 14C1.0 | 14x1x1.0 | 0.55 | 1.1 | 13.0 | 0.9 | 1.5 | 17.8 | 590 |
| RE-2Y(St)YSWAY 16C1.0 | 16x1x1.0 | 0.55 | 1.1 | 13.7 | 0.9 | 1.5 | 18.5 | 649 |
| RE-2Y(St)YSWAY 20C1.0 | 20x1x1.0 | 0.55 | 1.1 | 15.2 | 0.9 | 1.5 | 20.0 | 864 |
| RE-2Y(St)YSWAY 24C1.0 | 24x1x1.0 | 0.55 | 1.2 | 17.0 | 0.9 | 1.6 | 22.0 | 1005 |
| RE-2Y(St)YSWAY 27C1.0 | 27x1x1.0 | 0.55 | 1.2 | 17.4 | 1.25 | 1.6 | 23.1 | 1058 |
| RE-2Y(St)YSWAY 30C1.0 | 30x1x1.0 | 0.55 | 1.2 | 18.0 | 1.25 | 1.6 | 23.7 | 1113 |
| RE-2Y(St)YSWAY 37C1.0 | 37x1x1.0 | 0.55 | 1.2 | 19.6 | 1.25 | 1.6 | 25.3 | 1271 |
| RE-2Y(St)YSWAY 40C1.0 | 40x1x1.0 | 0.55 | 1.3 | 20.4 | 1.25 | 1.7 | 26.3 | 1351 |
| 1.3mm2, Multicore | ||||||||
| RE-2Y(St)YSWAY 2C1.3 | 2x1x1.3 | 0.6 | 0.9 | 7.4 | 0.9 | 1.3 | 11.8 | 275 |
| RE-2Y(St)YSWAY 3C1.3 | 3x1x1.3 | 0.6 | 0.9 | 7.9 | 0.9 | 1.3 | 12.3 | 301 |
| RE-2Y(St)YSWAY 4C1.3 | 4x1x1.3 | 0.6 | 0.9 | 8.5 | 0.9 | 1.4 | 13.1 | 340 |
| RE-2Y(St)YSWAY 5C1.3 | 5x1x1.3 | 0.6 | 1.0 | 9.5 | 0.9 | 1.4 | 14.1 | 383 |
| RE-2Y(St)YSWAY 8C1.3 | 8x1x1.3 | 0.6 | 1.0 | 11.2 | 0.9 | 1.4 | 15.8 | 436 |
| RE-2Y(St)YSWAY 10C1.3 | 10x1x1.3 | 0.6 | 1.1 | 13.2 | 0.9 | 1.5 | 18.0 | 578 |
| RE-2Y(St)YSWAY 12C1.3 | 12x1x1.3 | 0.6 | 1.1 | 13.6 | 0.9 | 1.5 | 18.4 | 633 |
| RE-2Y(St)YSWAY 14C1.3 | 14x1x1.3 | 0.6 | 1.1 | 14.3 | 0.9 | 1.5 | 19.1 | 698 |
| RE-2Y(St)YSWAY 16C1.3 | 16x1x1.3 | 0.6 | 1.1 | 15.0 | 0.9 | 1.5 | 19.8 | 870 |
| RE-2Y(St)YSWAY 20C1.3 | 20x1x1.3 | 0.6 | 1.2 | 16.9 | 0.9 | 1.6 | 21.9 | 1014 |
| Caledonian Cable Code | RE-2Y(St)YSWAY | |||||||
| No. of Cores x1xCross Section | Nominal Insulation Thick- ness | Nominal Inner Sheath Thick- ness | Nominal Overall Diameter Over Inner Sheath | Nominal Armour Wire Diameter | Nominal Outer Sheath Thick- ness | Nominal Overall Diameter | Approx. Weight | |
| No.x1xmm2 | mm | mm | mm | mm | mm | mm | kg/km | |
| RE-2Y(St)YSWAY 24C1.3 | 24x1x1.3 | 0.6 | 1.2 | 18.7 | 1.25 | 1.6 | 24.4 | 1163 |
| RE-2Y(St)YSWAY 27C1.3 | 27x1x1.3 | 0.6 | 1.3 | 19.3 | 1.25 | 1.6 | 25.0 | 1227 |
| RE-2Y(St)YSWAY 30C1.3 | 30x1x1.3 | 0.6 | 1.3 | 20.0 | 1.25 | 1.6 | 25.7 | 1305 |
| RE-2Y(St)YSWAY 37C1.3 | 37x1x1.3 | 0.6 | 1.3 | 21.6 | 1.25 | 1.7 | 27.5 | 1504 |
| RE-2Y(St)YSWAY 40C1.3 | 40x1x1.3 | 0.6 | 1.4 | 22.7 | 1.25 | 1.7 | 28.6 | 1584 |
| 1.5mm2, Multicore | ||||||||
| RE-2Y(St)YSWAY 2C1.5 | 2x1x1.5 | 0.6 | 0.9 | 7.7 | 0.9 | 1.3 | 12.1 | 279 |
| RE-2Y(St)YSWAY 3C1.5 | 3x1x1.5 | 0.6 | 0.9 | 8.1 | 0.9 | 1.4 | 12.7 | 312 |
| RE-2Y(St)YSWAY 4C1.5 | 4x1x1.5 | 0.6 | 0.9 | 8.8 | 0.9 | 1.4 | 13.4 | 358 |
| RE-2Y(St)YSWAY 5C1.5 | 5x1x1.5 | 0.6 | 1.0 | 9.8 | 0.9 | 1.4 | 14.4 | 403 |
| RE-2Y(St)YSWAY 8C1.5 | 8x1x1.5 | 0.6 | 1.0 | 11.6 | 0.9 | 1.4 | 16.2 | 526 |
| RE-2Y(St)YSWAY 10C1.5 | 10x1x1.5 | 0.6 | 1.1 | 13.7 | 0.9 | 1.5 | 18.5 | 630 |
| RE-2Y(St)YSWAY 12C1.5 | 12x1x1.5 | 0.6 | 1.1 | 14.1 | 0.9 | 1.5 | 18.9 | 669 |
| RE-2Y(St)YSWAY 14C1.5 | 14x1x1.5 | 0.6 | 1.1 | 14.8 | 0.9 | 1.5 | 19.6 | 742 |
| RE-2Y(St)YSWAY 16C1.5 | 16x1x1.5 | 0.6 | 1.1 | 15.6 | 0.9 | 1.5 | 20.4 | 925 |
| RE-2Y(St)YSWAY 20C1.5 | 20x1x1.5 | 0.6 | 1.2 | 17.6 | 1.25 | 1.6 | 23.3 | 1090 |
| RE-2Y(St)YSWAY 24C1.5 | 24x1x1.5 | 0.6 | 1.3 | 19.6 | 1.25 | 1.6 | 25.3 | 1218 |
| RE-2Y(St)YSWAY 27C1.5 | 27x1x1.5 | 0.6 | 1.3 | 20.1 | 1.25 | 1.6 | 25.8 | 1320 |
| RE-2Y(St)YSWAY 30C1.5 | 30x1x1.5 | 0.6 | 1.3 | 20.8 | 1.25 | 1.7 | 26.7 | 1385 |
| RE-2Y(St)YSWAY 37C1.5 | 37x1x1.5 | 0.6 | 1.4 | 22.6 | 1.25 | 1.7 | 28.5 | 1586 |
| RE-2Y(St)YSWAY 40C1.5 | 40x1x1.5 | 0.6 | 1.4 | 23.6 | 1.25 | 1.7 | 29.5 | 1723 |
| 2.5mm2, Multicore | ||||||||
| RE-2Y(St)YSWAY 2C2.5 | 2x1x2.5 | 0.7 | 0.9 | 8.9 | 0.9 | 1.4 | 13.5 | 370 |
| RE-2Y(St)YSWAY 3C2.5 | 3x1x2.5 | 0.7 | 1.0 | 9.7 | 0.9 | 1.4 | 14.3 | 387 |
| RE-2Y(St)YSWAY 4C2.5 | 4x1x2.5 | 0.7 | 1.0 | 10.5 | 0.9 | 1.4 | 15.1 | 442 |
| RE-2Y(St)YSWAY 5C2.5 | 5x1x2.5 | 0.7 | 1.0 | 11.9 | 0.9 | 1.4 | 16.5 | 568 |
| RE-2Y(St)YSWAY 8C2.5 | 8x1x2.5 | 0.7 | 1.1 | 13.9 | 0.9 | 1.5 | 18.7 | 729 |
| RE-2Y(St)YSWAY 10C2.5 | 10x1x2.5 | 0.7 | 1.2 | 16.3 | 0.9 | 1.6 | 21.3 | 957 |
| RE-2Y(St)YSWAY 12C2.5 | 12x1x2.5 | 0.7 | 1.2 | 16.9 | 0.9 | 1.6 | 21.9 | 1049 |
| RE-2Y(St)YSWAY 14C2.5 | 14x1x2.5 | 0.7 | 1.2 | 17.7 | 1.25 | 1.6 | 23.4 | 1198 |
| RE-2Y(St)YSWAY 16C2.5 | 16x1x2.5 | 0.7 | 1.3 | 18.9 | 1.25 | 1.6 | 24.6 | 1302 |
| Caledonian Cable Code | RE-2Y(St)YSWAY | |||||||
| No. of Cores x1xCross Section | Nominal Insulation Thick- ness | Nominal Inner Sheath Thick- ness | Nominal Overall Diameter Over Inner Sheath | Nominal Armour Wire Diameter | Nominal Outer Sheath Thick- ness | Nominal Overall Diameter | Approx. Weight | |
| No.x1xmm2 | mm | mm | mm | mm | mm | mm | kg/km | |
| RE-2Y(St)YSWAY 20C2.5 | 20x1x2.5 | 0.7 | 1.3 | 21.1 | 1.25 | 1.7 | 27.0 | 1485 |
| RE-2Y(St)YSWAY 24C2.5 | 24x1x2.5 | 0.7 | 1.4 | 23.6 | 1.25 | 1.7 | 29.5 | 1718 |
| RE-2Y(St)YSWAY 27C2.5 | 27x1x2.5 | 0.7 | 1.4 | 24.1 | 1.25 | 1.8 | 30.2 | 1895 |
| RE-2Y(St)YSWAY 30C2.5 | 30x1x2.5 | 0.7 | 1.5 | 25.2 | 1.25 | 1.8 | 31.3 | 2166 |
| RE-2Y(St)YSWAY 37C2.5 | 37x1x2.5 | 0.7 | 1.5 | 27.2 | 1.25 | 1.8 | 33.3 | 2505 |
| RE-2Y(St)YSWAY 40C2.5 | 40x1x2.5 | 0.7 | 1.6 | 28.5 | 1.25 | 1.9 | 34.8 | |
