PVC Insulated, PVC Sheathed & Overall Screened Instrumentation Cables (Multicore)
RE-Y(St)Y 90°C / 500V
APPLICATION
EN 50288-7 cables are used for transmission of analogue and digital signals in instrument and control systems; allowed for use
in zone 1 and zone 2, group II, classified areas (IEC 79-14), not allowed for direct connection to low
impedance sources, e.g. public mains electricity supply.
Recommended for indoor and outdoor installation, on racks, trays, in conduits, in dry and wet
locations; not for direct burial.
Recommended for use as fire protection measure for people and important material assets.
STANDARDS
Basic design to EN 50288-7
FIRE PERFORMANCE
| Flame Retardance (Single Vertical Wire Test) |
EN 60332-1-2; IEC 60332-1-2; BS EN 60332-1-2; VDE 0482-332-1; NBN C 30-004 (cat. F1); NF C32-070-2.1(C2); CEI 20-35/1-2; EN 50265-2-1*; DIN VDE 0482-265-2-1* |
| Reduced Fire Propagation (Vertically-mounted bundled wires & cable test)****** |
EN 60332-3-24 (cat. C); IEC 60332-3-24; BS EN 60332-3-24; VDE 0482-332-3; NBN C 30-004 (cat. F2); NF C32-070-2.2(C1); CEI 20-22/3-4; EN 50266-2-4*; DIN VDE 0482-266-2-4 |
| Halogen Free |
IEC 60754-1; EN 50267-2-1; DIN VDE 0482-267-2-1; CEI 20-37/2-1 ; BS 6425-1* |
| No Corrosive Gas Emission |
IEC 60754-2; EN 50267-2-2; DIN VDE 0482-267-2-2; CEI 20-37/2-2 ; BS 6425-2* |
| Minimum Smoke Emission |
IEC 61034-1&2; EN 61034 -1&2; DIN VDE 0482-1034-1&2; CEI 20-37/3-1&2; EN 50268-1&2*; BS 7622-1&2* |
| No Toxic gases |
NES 02-713; NF C 20-454 |
Note: Asterisk * denotes superseded standard, *** denotes optional.
VOLTAGE RATING
500V

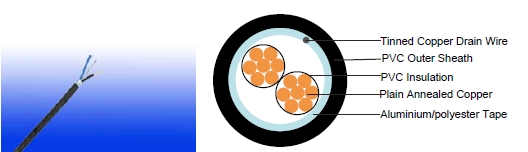

CABLE CONSTRUCTION
Conductor: Annealed copper solid or plain copper stranded to IEC 60228 Class 2.
Insulation: PVC compound as per EN 50290-2-21.
Overall Screen: Aluminium/polyester tape with tinned copper drain wire, 0.5mm2
Outer Sheath: Thermoplastic PVC compound as per EN 50290-2-22. UV resistance, hydrocarbon
resistance, oil resistance, anti rodent and anti termite properties can be offered as option.
Compliance to fire performance standard (IEC 60332-1, IEC 60332-3, UL 1581, UL 1666 etc)
depends on the oxygen index of the PVC compound and the overall cable design. LSPVC can also
be provided upon request.
COLOUR CODE
Insulation: Black numbered
Outer Sheath: Black, blue for intrinsically safe systems
Physical AND THERMAL PROPERTIES
Temperature Range During Operation (Fixed State): -30°C – +90°C
Temperature Range During Installation (Mobile State): -5°C – +50°C
Minimum Bending Radius: 7.5 X Overall Diameter
Sunlight Resistance: UL 1581 section 1200
Oil Resistance: ICEA S-73-532(Test temperature +60°C, duration 4h. Retention: min 60% of tensile
strength/min.60% of elongation)
Electrical PROPERTIES
| Conductor Area Size |
mm 2 |
0.5 |
0.75 |
1.0 |
1.3 |
1.5 |
2.5 |
| Insulation thickness (nominal) |
mm |
0.55 |
0.55 |
0.55 |
0.6 |
0.6 |
0.7 |
| Conductor resistance (20°C) |
Ω/km |
36.7 |
25.0 |
18.5 |
14.2 |
12.3 |
7.4 |
| Insulation resistance (20°C) |
MΩ.km(Min.) |
5000 |
| Mutual Capacitance (1 kHz) |
pF/m(Max.) |
115 |
| Capacitance unbalance(1 kHz) |
pF/500 m (Max.) |
500 |
| L / R (ratio) (max.) |
μH/Ω |
25 |
25 |
25 |
40 |
40 |
60 |
| Operating voltage |
V |
500 |
| Test Voltage Urms |
Core to Core |
V |
2000 |
| Core to Screen |
V |
2000 |
CONSTRUCTION PARAMETERS
| Caledonian Cable Code |
RE-Y(St)Y |
| No. of Core x1xCross Section |
Nominal Insulation Thickness |
Nominal Sheath Thickness |
Nominal Overall Diameter |
Approx. Weight |
| |
No.x1xmm2 |
mm |
mm |
mm |
kg/km |
| 0.5mm2, Multicore |
| RE-Y(St)Y 2C0.5 |
2x1x0.5 |
0.55 |
0.9 |
6.2 |
47 |
| RE-Y(St)Y 3C0.5 |
3x1x0.5 |
0.55 |
0.9 |
6.5 |
50 |
| RE-Y(St)Y 4C0.5 |
4x1x0.5 |
0.55 |
0.9 |
7.0 |
60 |
| RE-Y(St)Y 5C0.5 |
5x1x0.5 |
0.55 |
0.9 |
7.6 |
71 |
| RE-Y(St)Y 8C0.5 |
8x1x0.5 |
0.55 |
1.0 |
9.1 |
95 |
| RE-Y(St)Y 10C0.5 |
10x1x0.5 |
0.55 |
1.0 |
10.4 |
127 |
| RE-Y(St)Y 12C0.5 |
12x1x0.5 |
0.55 |
1.0 |
10.7 |
151 |
| RE-Y(St)Y 14C0.5 |
14x1x0.5 |
0.55 |
1.0 |
11.3 |
162 |
| RE-Y(St)Y 16C0.5 |
16x1x0.5 |
0.55 |
1.1 |
11.8 |
180 |
| RE-Y(St)Y 20C0.5 |
20x1x0.5 |
0.55 |
1.1 |
13.3 |
222 |
| RE-Y(St)Y 24C0.5 |
24x1x0.5 |
0.55 |
1.1 |
14.7 |
274 |
| RE-Y(St)Y 27C0.5 |
27x1x0.5 |
0.55 |
1.2 |
15.0 |
282 |
| RE-Y(St)Y 30C0.5 |
30x1x0.5 |
0.55 |
1.2 |
15.7 |
318 |
| RE-Y(St)Y 37C0.5 |
37x1x0.5 |
0.55 |
1.2 |
16.9 |
372 |
| RE-Y(St)Y 40C0.5 |
40x1x0.5 |
0.55 |
1.2 |
17.6 |
372 |
| 0.75mm2, Multicore |
| RE-Y(St)Y 2C0.75 |
2x1x0.75 |
0.55 |
0.9 |
6.5 |
51 |
| RE-Y(St)Y 3C0.75 |
3x1x0.75 |
0.55 |
0.9 |
6.9 |
62 |
| RE-Y(St)Y 4C0.75 |
4x1x0.75 |
0.55 |
0.9 |
7.4 |
74 |
| RE-Y(St)Y 5C0.75 |
5x1x0.75 |
0.55 |
0.9 |
8.1 |
96 |
| RE-Y(St)Y 8C0.75 |
8x1x0.75 |
0.55 |
1.0 |
9.7 |
126 |
| RE-Y(St)Y 10C0.75 |
10x1x0.75 |
0.55 |
1.0 |
11.1 |
156 |
| RE-Y(St)Y 12C0.75 |
12x1x0.75 |
0.55 |
1.0 |
11.5 |
183 |
| RE-Y(St)Y 14C0.75 |
14x1x0.75 |
0.55 |
1.1 |
12.2 |
200 |
| RE-Y(St)Y 16C0.75 |
16x1x0.75 |
0.55 |
1.1 |
12.9 |
224 |
| RE-Y(St)Y 20C0.75 |
20x1x0.75 |
0.55 |
1.1 |
14.3 |
284 |
| RE-Y(St)Y 24C0.75 |
24x1x0.75 |
0.55 |
1.2 |
16.0 |
324 |
| Caledonian Cable Code |
RE-Y(St)Y |
| No. of Core x1xCross Section |
Nominal Insulation Thickness |
Nominal Sheath Thickness |
Nominal Overall Diameter |
Approx. Weight |
| |
No.x1xmm2 |
mm |
mm |
mm |
kg/km |
| RE-Y(St)Y 27C0.75 |
27x1x0.75 |
0.55 |
1.2 |
16.3 |
363 |
| RE-Y(St)Y 30C0.75 |
30x1x0.75 |
0.55 |
1.2 |
16.9 |
396 |
| RE-Y(St)Y 37C0.75 |
37x1x0.75 |
0.55 |
1.2 |
18.2 |
472 |
| RE-Y(St)Y 40C0.75 |
40x1x0.75 |
0.55 |
1.3 |
19.1 |
514 |
| 1.0mm2, Multicore |
| RE-Y(St)Y 2C1.0 |
2x1x1.0 |
0.55 |
0.9 |
6.9 |
61 |
| RE-Y(St)Y 3C1.0 |
3x1x1.0 |
0.55 |
0.9 |
7.3 |
70 |
| RE-Y(St)Y 4C1.0 |
4x1x1.0 |
0.55 |
0.9 |
7.9 |
85 |
| RE-Y(St)Y 5C1.0 |
5x1x1.0 |
0.55 |
0.9 |
8.6 |
109 |
| RE-Y(St)Y 8C1.0 |
8x1x1.0 |
0.55 |
1.0 |
10.3 |
157 |
| RE-Y(St)Y 10C1.0 |
10x1x1.0 |
0.55 |
1.0 |
11.9 |
193 |
| RE-Y(St)Y 12C1.0 |
12x1x1.0 |
0.55 |
1.0 |
12.2 |
214 |
| RE-Y(St)Y 14C1.0 |
14x1x1.0 |
0.55 |
1.1 |
13.0 |
243 |
| RE-Y(St)Y 16C1.0 |
16x1x1.0 |
0.55 |
1.1 |
13.7 |
280 |
| RE-Y(St)Y 20C1.0 |
20x1x1.0 |
0.55 |
1.1 |
15.2 |
336 |
| RE-Y(St)Y 24C1.0 |
24x1x1.0 |
0.55 |
1.2 |
17.0 |
414 |
| RE-Y(St)Y 27C1.0 |
27x1x1.0 |
0.55 |
1.2 |
17.4 |
443 |
| RE-Y(St)Y 30C1.0 |
30x1x1.0 |
0.55 |
1.2 |
18.0 |
484 |
| RE-Y(St)Y 37C1.0 |
37x1x1.0 |
0.55 |
1.2 |
19.6 |
590 |
| RE-Y(St)Y 40C1.0 |
40x1x1.0 |
0.55 |
1.3 |
20.4 |
631 |
| 1.3mm2, Multicore |
| RE-Y(St)Y 2C1.3 |
2x1x1.3 |
0.6 |
0.9 |
7.4 |
69 |
| RE-Y(St)Y 3C1.3 |
3x1x1.3 |
0.6 |
0.9 |
7.9 |
83 |
| RE-Y(St)Y 4C1.3 |
4x1x1.3 |
0.6 |
0.9 |
8.5 |
105 |
| RE-Y(St)Y 5C1.3 |
5x1x1.3 |
0.6 |
1.0 |
9.5 |
135 |
| RE-Y(St)Y 8C1.3 |
8x1x1.3 |
0.6 |
1.0 |
11.2 |
186 |
| RE-Y(St)Y 10C1.3 |
10x1x1.3 |
0.6 |
1.1 |
13.2 |
228 |
| Caledonian Cable Code |
RE-Y(St)Y |
| No. of Core x1xCross Section |
Nominal Insulation Thickness |
Nominal Sheath Thickness |
Nominal Overall Diameter |
Approx. Weight |
| |
No.x1xmm2 |
mm |
mm |
mm |
kg/km |
| RE-Y(St)Y 12C1.3 |
12x1x1.3 |
0.6 |
1.1 |
13.6 |
269 |
| RE-Y(St)Y 14C1.3 |
14x1x1.3 |
0.6 |
1.1 |
14.3 |
305 |
| RE-Y(St)Y 16C1.3 |
16x1x1.3 |
0.6 |
1.1 |
15.0 |
351 |
| RE-Y(St)Y 20C1.3 |
20x1x1.3 |
0.6 |
1.2 |
16.9 |
423 |
| RE-Y(St)Y 24C1.3 |
24x1x1.3 |
0.6 |
1.2 |
18.7 |
507 |
| RE-Y(St)Y 27C1.3 |
27x1x1.3 |
0.6 |
1.3 |
19.3 |
558 |
| RE-Y(St)Y 30C1.3 |
30x1x1.3 |
0.6 |
1.3 |
20.0 |
611 |
| RE-Y(St)Y 37C1.3 |
37x1x1.3 |
0.6 |
1.3 |
21.6 |
743 |
| RE-Y(St)Y 40C1.3 |
40x1x1.3 |
0.6 |
1.4 |
22.7 |
796 |
| 1.5mm2, Multicore |
| RE-Y(St)Y 2C1.5 |
2x1x1.5 |
0.6 |
0.9 |
7.7 |
78 |
| RE-Y(St)Y 3C1.5 |
3x1x1.5 |
0.6 |
0.9 |
8.1 |
98 |
| RE-Y(St)Y 4C1.5 |
4x1x1.5 |
0.6 |
0.9 |
8.8 |
120 |
| RE-Y(St)Y 5C1.5 |
5x1x1.5 |
0.6 |
1.0 |
9.8 |
153 |
| RE-Y(St)Y 8C1.5 |
8x1x1.5 |
0.6 |
1.0 |
11.6 |
218 |
| RE-Y(St)Y 10C1.5 |
10x1x1.5 |
0.6 |
1.1 |
13.7 |
268 |
| RE-Y(St)Y 12C1.5 |
12x1x1.5 |
0.6 |
1.1 |
14.1 |
315 |
| RE-Y(St)Y 14C1.5 |
14x1x1.5 |
0.6 |
1.1 |
14.8 |
341 |
| RE-Y(St)Y 16C1.5 |
16x1x1.5 |
0.6 |
1.1 |
15.6 |
392 |
| RE-Y(St)Y 20C1.5 |
20x1x1.5 |
0.6 |
1.2 |
17.6 |
484 |
| RE-Y(St)Y 24C1.5 |
24x1x1.5 |
0.6 |
1.3 |
19.6 |
579 |
| RE-Y(St)Y 27C1.5 |
27x1x1.5 |
0.6 |
1.3 |
20.1 |
626 |
| RE-Y(St)Y 30C1.5 |
30x1x1.5 |
0.6 |
1.3 |
20.8 |
685 |
| RE-Y(St)Y 37C1.5 |
37x1x1.5 |
0.6 |
1.4 |
22.6 |
834 |
| RE-Y(St)Y 40C1.5 |
40x1x1.5 |
0.6 |
1.4 |
23.6 |
898 |
| 2.5mm2, Multicore |
| RE-Y(St)Y 2C2.5 |
2x1x2.5 |
0.7 |
0.9 |
8.9 |
111 |
| RE-Y(St)Y 3C2.5 |
3x1x2.5 |
0.7 |
1.0 |
9.7 |
132 |
| Caledonian Cable Code |
RE-Y(St)Y |
| No. of Core x1xCross Section |
Nominal Insulation Thickness |
Nominal Sheath Thickness |
Nominal Overall Diameter |
Approx. Weight |
| |
No.x1xmm2 |
mm |
mm |
mm |
kg/km |
| RE-Y(St)Y 4C2.5 |
4x1x2.5 |
0.7 |
1.0 |
10.5 |
169 |
| RE-Y(St)Y 5C2.5 |
5x1x2.5 |
0.7 |
1.0 |
11.9 |
209 |
| RE-Y(St)Y 8C2.5 |
8x1x2.5 |
0.7 |
1.1 |
13.9 |
321 |
| RE-Y(St)Y 10C2.5 |
10x1x2.5 |
0.7 |
1.2 |
16.3 |
386 |
| RE-Y(St)Y 12C2.5 |
12x1x2.5 |
0.7 |
1.2 |
16.9 |
447 |
| RE-Y(St)Y 14C2.5 |
14x1x2.5 |
0.7 |
1.2 |
17.7 |
509 |
| RE-Y(St)Y 16C2.5 |
16x1x2.5 |
0.7 |
1.3 |
18.9 |
585 |
| RE-Y(St)Y 20C2.5 |
20x1x2.5 |
0.7 |
1.3 |
21.1 |
712 |
| RE-Y(St)Y 24C2.5 |
24x1x2.5 |
0.7 |
1.4 |
23.6 |
855 |
| RE-Y(St)Y 27C2.5 |
27x1x2.5 |
0.7 |
1.4 |
24.1 |
956 |
| RE-Y(St)Y 30C2.5 |
30x1x2.5 |
0.7 |
1.5 |
25.2 |
1049 |
| RE-Y(St)Y 37C2.5 |
37x1x2.5 |
0.7 |
1.5 |
27.2 |
1277 |
| RE-Y(St)Y 40C2.5 |
40x1x2.5 |
0.7 |
1.6 |
28.5 |
1370 |
Note : Other conductor sizes & core configurations are available upon request
