Flame Retardant RG6 A/U CWB/SWB/SWA Armoured Coaxial cables

APPLICATION
These 75Ω coaxial cables are suitable for installation on board of ships and other indoor marine environments.

STANDARDS
Basic design adapted to MIL-C-17

FIRE PERFORMANCE

Note: Asterisk ** denotes that the standard compliance is optional, depending on the oxygen index of the PVC compound and the cable design.

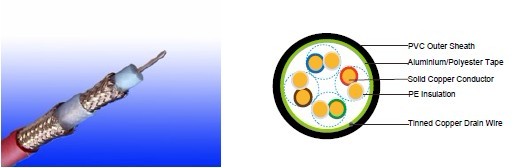

CABLE CONSTRUCTION
Conductors: 18AWG solid bare copper.
Insulation: PE compound.
Screen1: Aluminium/polyester or aluminium tape.
Screen2: Tinned copper braid.
Inner Sheath: PVC compound.
Armour:
cwb: copper Wire Braid
swb: Steel Wire Braid
swa: Steel Wire Armour
Outer Sheath: Thermoplastic PVC compound. UV resistance, hydrocarbon resistance, oil resistance,
anti rodent and anti termite properties can be offered as option. Compliance to fire performance
standard (IEC 60332-1, IEC 60332-3, UL 1581, UL 1666 etc) depends on the oxygen index of the
PVC compound and the overall cable design. LSPVC can also be provided upon request.

Physical AND THERMAL PROPERTIES
Temperature Range: -30°C - +75°C
Minimum Bending Radius: 815 X Overall Diameter

Electrical Properties

CONSTRUCTION PARAMETERS
