Flame Retardant RG59 B/U Coaxial cables

APPLICATION
The cables are designed for CCTV, security, smoke detection and evacuation monitoring
applications, where continued functionality is required during a fire situation. Due to the zero halogen
low smoke construction, this cable is ideal for use in public, commercial and industrial environments.

STANDARDS
Basic design adapted to MIL-C-17

FIRE PERFORMANCE

Note: Asterisk ** denotes that the standard compliance is optional, depending on the oxygen index of the PVC compound and the cable design.

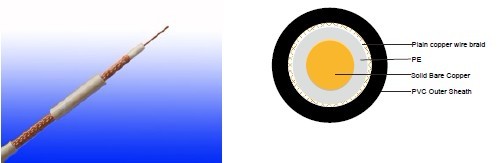

CABLE CONSTRUCTION
Conductors: Copper clad steel, solid according to IEC(EN) 60228 class 1.
Insulation: PE compound.
Overall Screen: Plain copper wire braid
Outer Sheath: Thermoplastic PVC compound. UV resistance, hydrocarbon resistance, oil resistance,
anti rodent and anti termite properties can be offered as option. Compliance to fire performance
standard (IEC 60332-1, IEC 60332-3, UL 1581, UL 1666 etc) depends on the oxygen index of the
PVC compound and the overall cable design. LSPVC can also be provided upon request.

Physical AND THERMAL PROPERTIES
Temperature range during operation (fixed state): -30°C - +70°C
Temperature range during installation (mobile state): -5ºC - +60ºC
Minimum bending radius: 8 x Overall Diameter

Electrical Properties

Attenuation

Return Loss

CONSTRUCTION PARAMETERS
