FIREGUARD Flame Retardant Cables

Flame Retardant Instrumentation Cables

Flame Retardant Overall Screened Instrumentation Cables (Multicore)

RE-2X(St)Y
RE-2X(St)YSWAY

Flame Retardant Instrumentation Cables

APPLICATION
The PVC versions (Part 1 Type 1&2) are generally use for indoor installation and suitable for wet and
damp areas. Generally used within industrial process manufacturing plants for communication, data
and voice transmission signals and services.

STANDARDS
Basic design adapted to BS 5308 Part1 Type 1 & 2

FIRE PERFORMANCE

Flame Retardance (Single Vertical
Wire Test)**

EN 60332-1-2; IEC 60332-1-2; BS EN 60332-1-2; VDE
0482-332-1 ; NBN C 30-004 (cat. F1); NF C32-070-2.1(C2); CEI 20-35/1-2; EN 50265-2-1*; DIN VDE 0482-265-2-1*

Reduced Fire Propagation
(Vertically-mounted bundled wires
& cable test)**

EN 60332-3-24 (cat. C); IEC 60332-3-24; BS EN 60332-3-24; VDE 0482-332-3; NBN C 30-004 (cat. F2); NF C32-070-2.2(C1); CEI 20-22/3-4; EN 50266-2-4*; DIN VDE 0482-266-2-4

Note: Asterisk ** denotes that the standard compliance is optional, depending on the oxygen index of the PVC compound and the cable design.

VOLTAGE RATING
300/500V

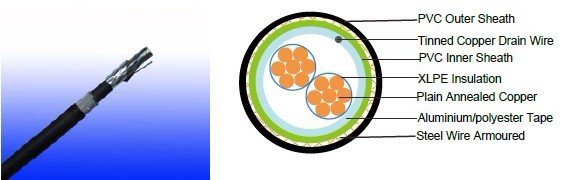

CABLE CONSTRUCTION
Conductor: Plain annealed copper wire, stranded according to IEC(EN) 60228 class 2 and 5 .
Insulation: Extruded cross-linked XLPE compound.
Overall Screen: Aluminium/polyester tape with 0.5mm2 screen (7/0.3mm) tinned copper drain wire.
Inner Sheath(optional): PVC compound
Armouring(optional): Galvanised steel wire
Outer Sheath: Thermoplastic PVC compound. UV resistance, hydrocarbon resistance, oil resistance,
anti rodent and anti termite properties can be offered as option. Compliance to fire performance
standard (IEC 60332-1, IEC 60332-3, UL 1581, UL 1666 etc) depends on the oxygen index of the
PVC compound and the overall cable design. LSPVC can also be provided upon request.

COLOUR CODE
Insulation Colour: See technical information
Outer sheath: Black or blue

Physical AND THERMAL PROPERTIES
Temperature range during operation: Max.90°C for XLPE
250°C in short-circuit for 5secs max.
Minimum bending radius: 8 x Overall Diameter (unarmoured cable)
10 x Overall Diameter (armoured cable)

CONSTRUCTION PARAMETERS

Conductor RE-2X(St)Y RE-2X(St)YSWAY
No. of Core
X
Cross
Section
No./
Nominal
Diameter
of
Strands
Nominal
Insulation
Thickness
Unarmoured Armoured
Nominal
Overall
Diameter
Approx.
Weight
Diameter
Under
Armour
Armour
Wire
Diameter
Nominal
Overall
Diameter
Approx.
Weight

mm2

No./mm

mm

mm

kg/km

mm

mm

mm

kg/km

2x0.5

16/0.20

0.6

7.0

50

7.0

0.90

11.4

237

3x0.5

16/0.20

0.6

7.3

59

7.3

0.90

11.7

254

4x0.5

16/0.20

0.6

7.9

69

7.9

0.90

12.3

278

6x0.5

16/0.20

0.6

9.3

94

9.3

0.90

13.9

345

10x0.5

16/0.20

0.6

11.9

147

11.9

0.90

16.7

470

20x0.5

16/0.20

0.6

14.9

253

14.9

1.25

20.6

759

40x0.5

16/0.20

0.6

20.1

444

20.1

1.60

26.7

1229

2x0.75

24/0.20

0.6

7.3

57

7.3

0.90

11.7

251

3x0.75

24/0.20

0.6

7.7

68

7.7

0.90

12.1

272

4x0.75

24/0.20

0.6

8.3

81

8.3

0.90

12.9

310

6x0.75

24/0.20

0.6

9.9

114

9.9

0.90

14.5

379

10x0.75

24/0.20

0.6

12.7

179

12.7

0.90

17.5

522

20x0.75

24/0.20

0.6

16.0

311

16.0

1.25

21.7

858

40x0.75

24/0.20

0.6

21.7

555

21.7

1.60

28.5

1420

2x1.5

7/0.53

0.6

8.3

78

8.3

0.90

12.9

300

3x1.5

7/0.53

0.6

8.9

103

8.9

0.90

13.5

345

4x1.5

7/0.53

0.6

9.7

125

9.7

0.90

14.3

377

6x1.5

7/0.53

0.6

11.7

163

11.7

0.90

16.3

490

10x1.5

7/0.53

0.6

14.7

285

14.7

1.25

20.4

773

20x1.5

7/0.53

0.6

18.7

504

18.7

1.60

25.3

1262

40x1.5

7/0.53

0.6

24.6

935

24.6

1.60

31.6

1968
