Flame Retardant Power & Control Cables
300/500V XLPE Insulated, PVC Sheathed Power Cables (2-4 Cores) FGD200 05RV-R (CU/XLPE/PVC 300/500V Class 2)
|
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Flame Retardance (Single Vertical |
EN 60332-1-2; IEC 60332-1-2; BS EN 60332-1-2; VDE |
Reduced Fire Propagation |
EN 60332-3-24 (cat. C); IEC 60332-3-24; BS EN 60332-3-24; VDE 0482-332-3; NBN C 30-004 (cat. F2); NF C32-070-2.2(C1); CEI 20-22/3-4; EN 50266-2-4*; DIN VDE 0482-266-2-4 |
Note: Asterisk ** denotes that the standard compliance is optional, depending on the oxygen index of the PVC
compound and the cable design.
VOLTAGE RATING
300/500V

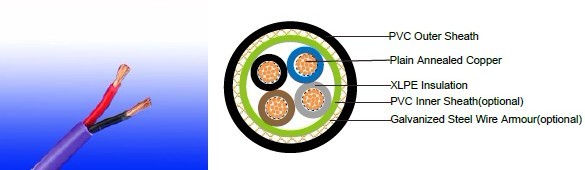

CABLE CONSTRUCTION
Conductor: Plain annealed copper wire, stranded according to IEC(EN) 60228 class 2.
Insulation: Extruded cross-linked XLPE compound.
Inner Sheath (optional): PVC Compound
Armouring (optional): Galvanized Steel Wire
Outer Sheath: Thermoplastic PVC compound. UV resistance, hydrocarbon resistance, oil resistance,
anti rodent and anti termite properties can be offered as option. Compliance to fire performance
standard (IEC 60332-1, IEC 60332-3, UL 1581, UL 1666 etc) depends on the oxygen index of the
PVC compound and the overall cable design. LSPVC can also be provided upon request.
COLOUR CODE
Insulation Colour as per BS7671
|
With Earth Conductor |
Without Earth Conductor |
2Cores |
- |
Brown, Blue |
3Cores |
Yellow/Green, Brown, Blue |
Brown, Gray, Black |
4Cores |
Yellow/Green, Brown, Gray, Black |
Brown, Gray, Black, Blue |
5Cores |
Yellow/Green, Brown, Gray, Black, Blue |
Brown, Gray, Black, Blue, Black |
Above 5 Cores |
Yellow/Green, Black Numbered |
Black Numbered |
Sheath Colour: Black (other colors upon request)
Physical AND THERMAL PROPERTIES
Temperature range during operation: Max.90°C for XLPE
250°C in short-circuit for 5secs max.
Minimum bending radius: 6 x Overall Diameter (unarmoured cable)
10 x Overall Diameter (armoured cable)
CONSTRUCTION PARAMETERS
| Conductor | FGD200 05RV-R | FGD200 05RVMV-R | ||||||
| No. of Core X Cross Section |
No./Nominal Diameter of Strands |
Nominal Insulation Thickness |
Unarmoured | Armoured | ||||
| Nominal Overall Diameter |
Approx. Weight |
Diameter Under Armour |
Armour Wire Diameter |
Nominal Overall Diameter |
Approx. Weight |
|||
Noxmm2 |
No./mm |
mm |
mm |
kg/km |
mm |
mm |
mm |
kg/km |
2x1.5 |
7/0.53 |
0.50 |
6.5 |
65 |
6.5 |
0.9 |
11.2 |
246 |
2x2.5 |
7/0.67 |
0.50 |
7.3 |
91 |
7.3 |
0.9 |
12.0 |
292 |
2x4 |
7/0.85 |
0.50 |
8.4 |
131 |
8.4 |
0.9 |
13.1 |
360 |
3x1.5 |
7/0.53 |
0.50 |
6.9 |
81 |
6.9 |
0.9 |
11.6 |
275 |
3x2.5 |
7/0.67 |
0.50 |
7.8 |
116 |
7.8 |
0.9 |
12.5 |
331 |
3x4 |
7/0.85 |
0.50 |
9.0 |
169 |
9.0 |
0.9 |
13.7 |
413 |
4x1.5 |
7/0.53 |
0.50 |
7.6 |
101 |
7.6 |
0.9 |
12.3 |
309 |
4x2.5 |
7/0.67 |
0.50 |
8.6 |
144 |
8.6 |
0.9 |
13.3 |
380 |
4x4 |
7/0.85 |
0.50 |
9.9 |
213 |
9.9 |
0.9 |
14.6 |
479 |
Electrical Properties
Conductor Operating Temperature : 90°C
Ambient Temperature : 30°C
FGD200 05RV-R
Current-Carrying Capacities (Amp)
Conductor cross- sectional area |
Reference Method |
Reference Method 3 (enclosed in conduit on |
Reference Method |
Reference Method 11 (on a perforated cable tray, horizontal or vertical) |
Reference Method 12 (free air) |
||||||
Horizontal flat spaced |
Vertical flat spaced |
Trefoil |
|||||||||
|
2 cables, single- phase a.c. or d.c. |
3 or 4 cables, |
2 cables, single- phase a.c. or d.c |
3 or 4 cables, |
2 cables, single- phase a.c. or d.c. flat and touching |
3 or 4 cables, |
2 cables, single- phase a.c. or d.c. or flat and touching |
3 or 4 cables, |
2 cables, single- phase a.c. or d.c. |
2 |
3 cables, trefoil |
1 |
2 |
3 |
4 |
5 |
6 |
7 |
8 |
9 |
10 |
11 |
12 |
mm2 |
A |
A |
A |
A |
A |
A |
A |
A |
A |
A |
A |
1.5 |
18 |
17 |
22 |
19 |
25 |
23 |
- |
- |
- |
- |
- |
2.5 |
24 |
23 |
30 |
26 |
34 |
31 |
- |
- |
- |
- |
- |
4 |
33 |
30 |
40 |
35 |
46 |
41 |
- |
- |
- |
- |
- |
Voltage Drop (Per Amp Per Meter)
| Nominal Cross Section Area |
2 cables d.c. |
2 cables, single-phase a.c. | 3 or 4 cables, 3-phase a.c. | |||
| Ref. Methods 3 and 4 (enclosed in conduit etc, in or on a wall) |
Ref. Methods 1 and 11 (clipped direct or on trays touching) |
Ref. Methods 3 and 4 (enclosed in conduit etc, in or on a wall) |
Ref. Methods 1, 11 and 12 (in trefoil) |
Ref. Methods 1 and 11(Flat and touching) |
||
1 |
2 |
3 |
4 |
5 |
6 |
7 |
mm2 |
mV/A/m |
mV/A/m |
mV/A/m |
mV/A/m |
mV/A/m |
mV/A/m |
1.5 |
31 |
31 |
27 |
27 |
27 |
27 |
2.5 |
19 |
19 |
16 |
16 |
16 |
16 |
4 |
33 |
12 |
10 |
10 |
10 |
10 |
FGD200 05RVMV-R
Current-Carrying Capacities (Amp)
| Conductor crosssectional area |
Reference Method 1 (clipped direct) |
Reference Method 11 (on a perforated horizontal cable tray or Reference Method 13 [free air] ) |
In single-way ducts | Laid direct in ground | ||||
| one 2-core cable single phase a.c. or d.c. |
one 3-core or 4-core cable 3-phase a.c. |
one 2-core cable single phase a.c. or d.c. |
one 3-core or 4-core cable 3-phase a.c. |
one 2-core cable single phase a.c. or d.c. |
one 3-core or 4-core cable 3-phase a.c. |
one 2-core cable single phase a.c. or d.c. |
one 3-core or 4-core cable 3-phase a.c. |
|
1 |
2 |
3 |
4 |
5 |
6 |
7 |
8 |
9 |
mm2 |
A |
A |
A |
A |
A |
A |
A |
A |
1.5 |
27 |
23 |
29 |
25 |
- |
23 |
- |
28 |
2.5 |
36 |
31 |
39 |
33 |
- |
30 |
- |
36 |
4 |
49 |
42 |
52 |
44 |
- |
40 |
- |
48 |
Voltage Drop (Per Amp Per Meter)
Nominal |
2 cables d.c. |
2 cables, single- phase a.c. |
3 or 4 cables, 3-phase a.c. |
2 cables, single-phase a.c. |
3 or 4 cables, |
In ducts or in ground |
In ducts or in ground |
||||
1 |
2 |
3 |
4 |
5 |
6 |
mm2 |
mV/A/m |
mV/A/m |
mV/A/m |
mV/A/m |
mV/A/m |
1.5 |
31 |
31 |
27 |
31 |
25 |
2.5 |
19 |
19 |
16 |
19 |
15 |
4 |
12 |
12 |
10 |
12 |
9.7 |
