Flame Retardant Data Cables

APPLICATION
Cat5E is a cable standard for Gigabit Ethernet and other network protocol, suitable for basic voice
and data installations up to 100 MHz. In addition, these cables can be offered with copper wire
braid armoured & flame retardant outer sheath, providing additional mechanically protection still
maintaining the flexibility of the cable.

STANDARDS
Basic design adapted to EN50173

FIRE PERFORMANCE

Flame Retardance (Single Vertical
Wire Test)**

EN 60332-1-2; IEC 60332-1-2; BS EN 60332-1-2; VDE
0482-332-1 ; NBN C 30-004 (cat. F1); NF C32-070-2.1(C2); CEI 20-35/1-2; EN 50265-2-1*; DIN VDE 0482-265-2-1*

Reduced Fire Propagation
(Vertically-mounted bundled wires
& cable test)**

EN 60332-3-24 (cat. C); IEC 60332-3-24; BS EN 60332-3-24; VDE 0482-332-3; NBN C 30-004 (cat. F2); NF C32-070-2.2(C1); CEI 20-22/3-4; EN 50266-2-4*; DIN VDE 0482-266-2-4

Note: Asterisk ** denotes that the standard compliance is optional, depending on the oxygen index of the PVC compound and the cable design.

VOLTAGE RATING
60V

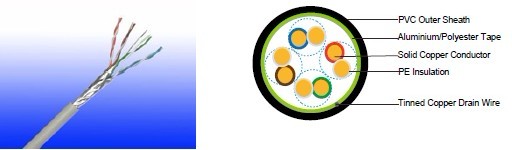

CABLE CONSTRUCTION
Conductors: 24AWG solid bare copper.
Insulation: HDPE.
Twinning: Two coloured insulated conductors twisted together to form a pair.
Outer Sheath: Thermoplastic PVC compound. UV resistance, hydrocarbon resistance, oil
resistance, anti rodent and anti termite properties can be offered as option. Compliance to fire
performance standard (IEC 60332-1, IEC 60332-3, UL 1581, UL 1666 etc) depends on the oxygen
index of the PVC compound and the overall cable design. LSPVC can also be provided upon
request.
Cat5E F/UTP: These cables have collective shielding of aluminium/Polyester tape with drain wire.
Cat5E SF/UTP: These cables have double collective shieldings of aluminium/Polyester tape &
copper wire braid.

COLOUR CODE
Insulation Colour: See technical information
Outer sheath: Black or blue

Physical AND THERMAL PROPERTIES
Temperature range: -30°C ~ +75°C
Minimum bending radius during installation (mobile state): 8 x Overall Diameter
Minimum bending radius during operation (fixed state): 4 x Overall Diameterr

Electrical Properties

AWG



24

Nominal Conductor Diameter

mm

0.5/0.51/0.53

Maximum DC Resistant@20°C

Ω/100m

9.38

Maximum DCR Unbalance

%

5

Maximum Mutual Capacitance

pF/m

55.8

Maximum Capacitance Unbalance

pF/100m

330

Characteristic Impedance@1-100MHz

Ω

100+/-15

Maximum Propagation Delay Skew

ns/100m

45

Transmission Properties

FREQ MHz

Maximum
Attenuation dB/100m

Minimum
NEXT
dB

Minimum
PSNEXT
dB

Minimum
ELFEXT
dB/100m

Minimum
PSELFEXT
dB/100m

Minimum
RL
dB

0.772

1.8

67.0

64.0

66.0

63.0

—

1

2.0

65.3

62.3

63.8

60.8

20.0

4

4.1

56.3

53.3

51.7

48.7

23.0

8

5.8

51.8

48.8

45.7

42.7

24.5

10

6.5

50.3

47.3

43.8

40.8

25.0

16

8.2

47.3

44.3

39.7

36.7

25.0

20

9.3

45.8

42.8

37.7

34.7

25.0

25

10.4

44.3

41.3

35.8

32.8

24.3

31.25

11.7

42.9

39.9

33.9

30.9

23.6

62.5

17.0

38.4

35.4

27.8

24.8

21.5

100

22.0

35.3

32.3

23.8

20.8

20.1

CONSTRUCTION PARAMETERS

Cable Code

Conductor
Diameter

Diameter Over Insulation

Pairs

Screen

Nominal Overall Diameter



mm

mm





mm

FGD-Cat5E U/UTP

0.5/0.51

0.91

4

Nil

5.1

FGD-Cat5E F/UTP

0.53

1.00

4

Overall Aluminum Tape Screen

6.3

FGD-Cat5E SF/UTP

0.53

1.00

4

Overall Aluminum Tape Screen & Copper
Wire Braid

6.6
