Fire Resistant Cable

Fire Resistant Cable

600/1000V SR Insulated Flexibles Control Cables (2-4 Cores & Multicores)

FFX400 1SZ1-R(PH60)(CU/SR/LSZH 600/1000V Class 2)
FFX400 1SZ1-F(PH60)(CU/SR/LSZH 600/1000V Class 5)

FFX400 1SZ1-R(PH60)(CU/SR/LSZH 600/1000V Class 2)

APPLICATION
The cables are designed for power supply and signals trasmission, indoor or outdoor even wet environment. They are designed for fixed laying in free air, in pipe or conduit, on masonry and metal structures or suspended in places where in case of fire people are exposed to serious risks for emission of smoke, toxic and corrosive gases and where you want to avoid damage to facilities, equipment, goods. They are primarily intended for feeding of: emergency exits, alarm signals, warning of smoke or gas, escalators.

STANDARDS
Basic design adapted from BS 7629-1

FIRE PERFORMANCE

Circuit Integrity

IEC 60331-21; BS 6387 CWZ; DIN VDE 0472-814(FE180);
BS 8434-1 (30mins); BS 5839-1 Clause 26 2d; CEI 20-36/2-1; SS229-1; NBN C 30-004 (cat. F3); NF C32-070-2.3(CR1)

Circuit Integrity with mechanical shock

EN 50200(PH60); CEI 20-36/4-0

Circuit Integrity with mechanical shock & water spray

EN 50200 annex E

System circuit integrity

DIN 4102-12, E30 depending on lay system

Flame Retardance (Single Vertical
Wire Test)

EN 60332-1-2; IEC 60332-1-2; BS EN 60332-1-2;
VDE 0482-332-1 ; NBN C 30-004 (cat. F1); NF C32-070-2.1(C2); CEI 20-35/1-2; EN 50265-2-1*; DIN VDE 0482-265-2-1*

Reduced Fire Propagation
(Vertically-mounted bundled wires
& cable test)

EN 60332-3-24 (cat. C); IEC 60332-3-24; BS EN 60332-3-24; VDE 0482-332-3; NBN C 30-004 (cat. F2); NF C32-070-2.2(C1); CEI 20-22/3-4; EN 50266-2-4*; DIN VDE 0482-266-2-4

Halogen Free

IEC 60754-1; EN 50267-2-1; DIN VDE 0482-267-2-1; CEI 20-37/2-1 ; BS 6425-1*

No Corrosive Gas Emission

IEC 60754-2; EN 50267-2-2; DIN VDE 0482-267-2-2; CEI 20-37/2-2 ; BS 6425-2*

Minimum Smoke Emission

IEC 61034-1&2; EN 61034 -1&2; DIN VDE 0482-1034-1&2; CEI 20-37/3-1&2; EN 50268-1&2*; BS 7622-1&2*

No Toxic gases

NES 02-713; NF C 20-454

Note: Asterisk * denotes superseded standard.

VOLTAGE RATING
600/1000 V

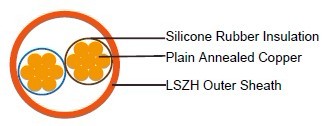

CABLE CONSTRUCTION
Conductors:Plain annealed copper wire, stranded for section up to 10mm2 according to IEC(EN)
60228 class 2 or flexible for section above 10mm2 according to IEC(EN) 60228 class 5.
Insulation: Fire resistant silicone rubber compound type EI2 as per BS 7655-1.1.
Cabling: The cores are cabled together in concentric layers with suitable non-hygroscopic fillers.
Outer Sheath: Thermoplastic LSZH compound type LTS3 as per BS 7655-6.1 (Thermosetting LSZH
compound type SW2-SW4 as per BS 7655-2.6 can be offered.)

COLOUR CODE
Insulation Colour:
Without earth conductor
2 cores blue - brown
3 cores brown - black - grey
4 cores blue - brown - black - grey
5 cores blue - brown - black - grey - black With earth conductor
3 cores yellow/green - blue - brown
4 cores yellow/green - brown - black - grey
5 cores yellow/green - blue - brown - black - grey
Sheath Colour: red (other colours on request).

Physical AND THERMAL PROPERTIES
Temperature range during operation (fixed state): -30°C – +90°C
Temperature range during installation (mobile state): -20°C – +50°C
Minimum bending radius: 6 x Overall Diameter

Electrical PROPERTIES

Dielectric test:

3500 V r.m.s. x 5' (core/core)

Insulation resistance

≥300 MΩ x km (at 20°C)

Short circuit temperature

350°C

CONSTRUCTION PARAMETERS

Cable Code

No. of Core X Cross Section

Nominal Insulation Thickness

Nominal Sheath Thickness

Nominal Overall Diameter

Approx.
Weight



mm2

mm

mm

mm

kg/km

2 core

FFX400 1SZ1-R(PH60)

2x1.5

1.0

1.2

9,2

124

FFX400 1SZ1-R(PH60)

2x2.5

1.1

1.3

10,0

155

FFX400 1SZ1-R(PH60)

2x4.0

1.1

1.4

11,2

207

FFX400 1SZ1-R(PH60)

2x6.0

1.1

1.5

13,1

298

FFX400 1SZ1-F(PH60)

2x10

1.1

1.6

15,9

441

FFX400 1SZ1-F(PH60)

2x16

1.1

1.7

17,4

602

3 core

FFX400 1SZ1-F(PH60)

3x1.5

1.0

1.2

9,8

148

FFX400 1SZ1-F(PH60)

3x2.5

1.1

1.3

10,6

188

FFX400 1SZ1-F(PH60)

3x4.0

1.1

1.4

12,1

263

FFX400 1SZ1-F(PH60)

3x6.0

1.1

1.5

14,4

372

FFX400 1SZ1-F(PH60)

3x10

1.1

1.6

16,8

541

FFX400 1SZ1-F(PH60)

3x16

1.1

1.7

19,4

777

4 core

FFX400 1SZ1-F(PH60)

4x1.5

1.0

1.3

10,6

176

FFX400 1SZ1-F(PH60)

4x2.5

1.1

1.4

11,5

228

FFX400 1SZ1-F(PH60)

4x4.0

1.1

1.5

13,6

332

FFX400 1SZ1-F(PH60)

4x6.0

1.1

1.6

11,5

214

FFX400 1SZ1-F(PH60)

4x10

1.1

1.7

18,5

680

FFX400 1SZ1-F(PH60)

4x16

1.1

1.8

21,2

973

5 core

FFX400 1SZ1-F(PH60)

5x2.5

1.1

1.4

12,6

266

FFX400 1SZ1-F(PH60)

5x4.0

1.1

1.5

14,5

399

FFX400 1SZ1-F(PH60)

5x6.0

1.1

1.6

17,6

576

FFX400 1SZ1-F(PH60)

5x10

1.1

1.7

20,5

850

FFX400 1SZ1-F(PH60)

5x16

1.1

1.8

23,3

1202

Electrical PROPERTIES
Conductor Operating Temperature : 90°C
Ambient Temperature : 30°C

Current-Carrying Capacities (Amp)

Nominal
Cross
Section
Area
Reference
Method 4
(enclosed in an conduit
insulated wall etc)
Reference Method 3
(enclosed in conduit on a wall or ceiling, or in trunking)
Reference Method 1 (clipped direct) Reference Method 11
(on a perforated cable tray), or Reference Method
one 3-core
cable or one
4-core cable
3-phase a.c.

one 2-core cable single phase
a.c. or d.c.

one 3-core
cable or one 4-core cable 3-phase a.c.
one 2-core
cable singlephase
a.c. or d.c.
one 3-core cable or one 4-core cable
3-phase a.c.
one 2-core
cable singlephase
a.c. or
d.c.
one 3-core cable or one
4-core cable
3-phase a.c.

1

2

3

4

5

6

7

8

mm2

A

A

A

A

A

A

A

1.5

16.5

22

19.5

24

22

26

23

2.5

22

30

26

33

30

36

32

4 30 40 35 45 40 49 42

6

38

51

44

58

52

63

54

10

51

69

60

80

71

86

75

16

68

91

80

107

96

115

100

Voltage Drop (Per Amp Per Meter)

Nominal Cross Section Area

2-core cable d.c.

2-core cable single- phase a.c

3-core or 4-core cable 3-phase a.c.

1

2

3

4

mm2

mV/A/m

mV/A/m

mV/A/m

1.5

31

31

27

2.5

19

19

16

4 12 12 10

6

7.9

7.9

6.8

10

4.7

4.7

4

16

2.9

2.9

2.5
