450/750V SR Insulated & Overall Screened Control Cables (1-4 Cores & Multicores)

FFX200 07SOZ1-F (PH30/60)(CU/SR/OSCR/LSZH 450/750V Class 5)

FFX200 07SOZ1-F (PH30/60)(CU/SR/OSCR/LSZH 450/750V Class 5)

APPLICATION
The cables are designed, manufactured and tested for general application in power and signal wiring,
for emergency circuit and fire circuit control where high rejection to electrostatic noise is needed.

STANDARDS
Basic design adapted from BS 7629-1

FIRE PERFORMANCE

Circuit Integrity

IEC 60331-21; BS 6387 CWZ; DIN VDE 0472-814(FE180);
BS 8434-1 (30mins); BS 5839-1 Clause 26 2d; CEI 20-36/2-1; SS229-1; NBN C 30-004 (cat. F3); NF C32-070-2.3(CR1)

Circuit Integrity with mechanical shock

EN 50200(PH30/60); CEI 20-36/4-0

Circuit Integrity with mechanical shock & water spray

EN 50200 annex E

System circuit integrity

DIN 4102-12, E30 depending on lay system

Flame Retardance (Single Vertical
Wire Test)

EN 60332-1-2; IEC 60332-1-2; BS EN 60332-1-2;
VDE 0482-332-1 ; NBN C 30-004 (cat. F1); NF C32-070-2.1(C2); CEI 20-35/1-2; EN 50265-2-1*; DIN VDE 0482-265-2-1*

Reduced Fire Propagation
(Vertically-mounted bundled wires
& cable test)

EN 60332-3-24 (cat. C); IEC 60332-3-24; BS EN 60332-3-24; VDE 0482-332-3; NBN C 30-004 (cat. F2); NF C32-070-2.2(C1); CEI 20-22/3-4; EN 50266-2-4*; DIN VDE 0482-266-2-4

Halogen Free

IEC 60754-1; EN 50267-2-1; DIN VDE 0482-267-2-1; CEI 20-37/2-1 ; BS 6425-1*

No Corrosive Gas Emission

IEC 60754-2; EN 50267-2-2; DIN VDE 0482-267-2-2; CEI 20-37/2-2 ; BS 6425-2*

Minimum Smoke Emission

IEC 61034-1&2; EN 61034 -1&2; DIN VDE 0482-1034-1&2; CEI 20-37/3-1&2; EN 50268-1&2*; BS 7622-1&2*

No Toxic gases

NES 02-713; NF C 20-454

Note: Asterisk * denotes superseded standard.

VOLTAGE RATING
450/750 V

CABLE CONSTRUCTION

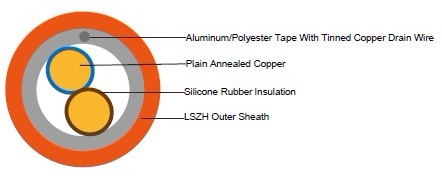

Conductors: Plain annealed copper wire, flexible according to IEC(EN) 60228 class 5.
Insulation: Fire resistant silicone rubber compound type EI2 as per BS 7655-1.1.
Cabling: The cores are cabled together in concentric layers with suitable non-hygroscopic fillers.
Overall screen: Aluminum/polyester tape with tinned copper drain wire.
Outer Sheath: Thermoplastic LSZH compound type LTS3 as per BS 7655-6.1 Thermosetting LSZH
compound type SW2-SW4 as per BS 7655-2.6 can be offered.)

COLOUR CODE
Insulation Colour:
Without earth conductor
2 cores blue - brown
3 cores brown - black - grey
4 cores blue - brown - black - grey
7 cores and above black numbered
With earth conductor
3 cores yellow/green - blue - brown
4 cores yellow/green - brown - black - grey
5 cores yellow/green - blue - brown - black - grey
7 cores and above yellow/green - black numbered
Sheath Colour: Colour red (other colours on request)

Physical AND THERMAL PROPERTIES
Temperature range during operation (fixed state): -30°C – +90°C
Temperature range during installation (mobile state): -20°C – +50°C
Minimum bending radius: 7.5 x Overall Diameter

Electrical PROPERTIES

Dielectric test:

2500 V r.m.s. x 5' (core/core)

Insulation resistance

≥300 MΩ x km (at 20°C)

Short circuit temperature

350°C

CONSTRUCTION PARAMETERS

Cable Code

No. of Core X Cross Section

Nominal Insulation Thickness

Nominal Sheath Thickness

Nominal Overall Diameter

Approx.
Weight



mm2

mm

mm

mm

kg/km

2 core

FFX200 07SOZ1-F(PH30/60)

2x0.75

0.7

0.9

7,6

69

FFX200 07SOZ1-F(PH30/60)

2x1.0

0.7

1.0

8,0

78

FFX200 07SOZ1-F(PH30/60)

2x1.5

0.8

1.0

8,3

88

FFX200 07SOZ1-F(PH30/60)

2x2.5

0.9

1.1

9,8

123

3 core

FFX200 07SOZ1-F(PH30/60)

3x0.75

0.7

0.9

8,0

84

FFX200 07SOZ1-F(PH30/60)

3x1.0

0.7

1.0

8,2

86

FFX200 07SOZ1-F(PH30/60)

3x1.5

0.8

1.0

8,8

112

FFX200 07SOZ1-F(PH30/60)

3x2.5

0.9

1.1

10,4

159

4 core

FFX200 07SOZ1-F(PH30/60)

4x0.75

0.7

1.0

8,7

103

FFX200 07SOZ1-F(PH30/60)

4x1.0

0.7

1.1

8,9

110

FFX200 07SOZ1-F(PH30/60)

4x1.5

0.8

1.1

9,8

141

FFX200 07SOZ1-F(PH30/60)

4x2.5

0.9

1.2

11,4

196

7 core

FFX200 07SOZ1-F(PH30/60)

7x1.0

0.7

1.1

10,8

176

FFX200 07SOZ1-F(PH30/60)

7x1.5

0.8

1.2

11,7

218

FFX200 07SOZ1-F(PH30/60)

7x2.5

0.9

1.3

13,4

305

12 core

FFX200 07SOZ1-F(PH30/60)

12x1.0

0.7

1.2

13,9

275

FFX200 07SOZ1-F(PH30/60)

12x1.5

0.8

1.3

15,3

352

FFX200 07SOZ1-F(PH30/60)

12x2.5

0.9

1.5

17,9

505

19 core

FFX200 07SOZ1-F(PH30/60)

19x1.0

0.7

1.4

16,4

408

FFX200 07SOZ1-F(PH30/60)

19x1.5

0.8

1.5

18,2

535

FFX200 07SOZ1-F(PH30/60)

19x2.5

0.9

1.6

21,1

760

Electrical PROPERTIES
Conductor Operating Temperature : 90°C
Ambient Temperature : 30°C

Current-Carrying Capacities (Amp)

Conductor
cross-sectional
area
Reference
Method 4
(enclosed in an conduit
insulated wall etc)
Reference Method 3
(enclosed in conduit on a wall or ceiling, or in trunking)
Reference Method 1 (clipped direct) Reference Method 11
(on a perforated cable tray), or Reference Method
one 3-core
cable or one
4-core cable
3-phase a.c.

one 2-core cable single phase
a.c. or d.c.

one 3-core
cable or one 4-core cable 3-phase a.c.
one 2-core
cable singlephase
a.c. or d.c.
one 3-core cable or one 4-core cable
3-phase a.c.
one 2-core
cable singlephase
a.c. or
d.c.
one 3-core cable or one
4-core cable
3-phase a.c.

1

2

3

4

5

6

7

8

mm2

A

A

A

A

A

A

A

1.5

16.5

22

19.5

24

22

26

23

2.5

22

30

26

33

30

36

32

4 30 40 35 45 40 49 42

Voltage Drop (Per Amp Per Meter)

Nominal Cross Section Area

2-core cable d.c.

2-core cable single- phase a.c

3-core or 4-core cable 3-phase a.c.

1

2

3

4

mm2

mV/A/m

mV/A/m

mV/A/m

1.5

31

31

27

2.5

19

19

16

4 12 12 10
