Fire Resistant Cable

300/500V SR Insulated & LSZH Sheathed Fire Alarm Cables

FFX200P 05SOZ1-U (PH30) (CU/SR/OSCR/LSZH 300/500V Class 1)
FFX200P 05SOZ1-R (PH30) (CU/SR/OSCR/LSZH 300/500V Class 2)

300/500V SR Insulated & LSZH Sheathed Fire Alarm Cables

APPLICATION
The cables are designed, manufactured and tested as data transmission cables for emergency services. These are primarily intended for for indoor instrumentation and control cabling, electrically noisy environments and fire alarm systems in office buildings when high frequency signal transmission has to be assured in the event of a fire.

STANDARDS
Basic design to BS 7629-1

FIRE PERFORMANCE

Circuit Integrity

IEC 60331-21; BS 6387 CWZ; DIN VDE 0472-814(FE180);
BS 8434-1 (30mins); BS 5839-1 Clause 26 2d; CEI 20-36/2-1; SS229-1; NBN C 30-004 (cat. F3); NF C32-070-2.3(CR1)

Circuit Integrity with mechanical shock

EN 50200(PH30); CEI 20-36/4-0

Circuit Integrity with mechanical shock & water spray

EN 50200 annex E

System circuit integrity

DIN 4102-12, E30 depending on lay system

Flame Retardance (Single Vertical
Wire Test)

EN 60332-1-2; IEC 60332-1-2; BS EN 60332-1-2;
VDE 0482-332-1 ; NBN C 30-004 (cat. F1); NF C32-070-2.1(C2); CEI 20-35/1-2; EN 50265-2-1*; DIN VDE 0482-265-2-1*

Reduced Fire Propagation
(Vertically-mounted bundled wires
& cable test)

EN 60332-3-24 (cat. C); IEC 60332-3-24; BS EN 60332-3-24; VDE 0482-332-3; NBN C 30-004 (cat. F2); NF C32-070-2.2(C1); CEI 20-22/3-4; EN 50266-2-4*; DIN VDE 0482-266-2-4

Halogen Free

IEC 60754-1; EN 50267-2-1; DIN VDE 0482-267-2-1; CEI 20-37/2-1 ; BS 6425-1*

No Corrosive Gas Emission

IEC 60754-2; EN 50267-2-2; DIN VDE 0482-267-2-2; CEI 20-37/2-2 ; BS 6425-2*

Minimum Smoke Emission

IEC 61034-1&2; EN 61034 -1&2; DIN VDE 0482-1034-1&2; CEI 20-37/3-1&2; EN 50268-1&2*; BS 7622-1&2*

No Toxic gases

NES 02-713; NF C 20-454

Note: Asterisk * denotes superseded standard.

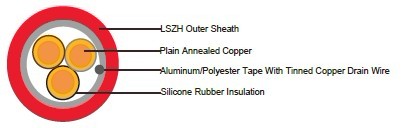

CABLE CONSTRUCTION
Conductors: Plain annealed copper wire, solid according to IEC(EN) 60228 class 1, stranded according to IEC(EN) 60228 class 2.
Insulation: Fire resistant silicone rubber compound type EI2 as per BS 7655-1.1.
Cabling Elements: Insulated cores are twisted to form pairs with varying lay length to minimize
crosstalk. Two-pair cable had four cores laid in quad formation.
Cabling: Pairs are cabled together in concentric layers with suitable non-hygroscopic fillers.
Overall screen: Aluminum/polyester tape with tinned copper drain wire.
Outer Sheath: Thermoplastic LSZH compound type LTS3 as per BS 7655-6.1 (Thermosetting LSZH
compound type SW2-SW4 as per BS 7655-2.6 can be offered.)

COLOUR CODE
Insulation Colour:
Cables up to 6 pairs black-red / black-blue / red-blue / yellow-black /yellow-red / yellow-blue
Cables above 6 pairs all pairs black-red numbered on the wrapping tape.
Sheath Colour: Colour red (other colours on request).

Physical AND THERMAL PROPERTIES
Temperature range during operation (fixed state): -30°C – +90°C
Temperature range during installation (mobile state): -20°C – +50°C
Minimum bending radius: 7.5 x Overall Diameter

CONSTRUCTION PARAMETERS

Cable Code

Nominal Insulation Thickness

Nominal Sheath Thickness

Nominal Overall Diameter

Approx.
Weight

mm2

mm

mm

mm

kg/km

1 Pairs

1x2x1 stranded FFX200P 05SOZ1-R (PH30)

0.6

0.9

7.4

77

1x2x1.5 stranded FFX200P 05SOZ1-R (PH30)

0.7

0.9

8,7

100

2 Pairs

2x2x1 stranded FFX200P 05SOZ1-R (PH30)

0.6

1.0

10.6

130

2x2x1.5 stranded FFX200P 05SOZ1-R (PH30)

0.7

1.0

10.2

188

3 Pairs

3x2x1 stranded FFX200P 05SOZ1-R (PH30)

0.6

1.1

11.2

196

3x2x1.5 stranded FFX200P 05SOZ1-R (PH30)

0.7

1.1

12.9

223

5 Pairs

5x2x1 stranded FFX200P 05SOZ1-R (PH30)

0.6

1.2

13.7

245

5x2x1.5 stranded FFX200P 05SOZ1-R (PH30)

0.7

1.3

16.7

346

6 Pairs

6x2x1 stranded FFX200P 05SOZ1-R (PH30)

0.6

1.2

14.8

300

6x2x1.5 stranded FFX200P 05SOZ1-R (PH30)

0.7

1.3

17.5

426

10 Pairs

10x2x1 stranded FFX200P 05SOZ1-R (PH30)

0.6

1.4

18.9

378

10x2x1.5 stranded FFX200P 05SOZ1-R (PH30)

0.7

1.5

23.4

541

15 Pairs

15x2x1 stranded FFX200P 05SOZ1-R (PH30)

0.6

1.5

23.2

567

15x2x1.5 stranded FFX200P 05SOZ1-R (PH30)

0.7

1.6

28.9

892

20 Pairs

20x2x1 stranded FFX200P 05SOZ1-R (PH30)

0.6

1.6

26.2

831

20x2x1.5stranded FFX200P 05SOZ1-R (PH30)

0.7

1.8

32.5

1182
