225V SR Insulated & LSZH Sheathed Fire Alarm Cables BMK*

JE-SH(St)H…Bd FE180 E30 BMK (CU/Mica+SR/OSCR/LSZH 225V Class 1 )

225V SR Insulated & LSZH Sheathed Fire Alarm Cables BMK*

APPLICATION
The cables are used for the internal wiring of building when the circuit integrity during fire is paramount. The cables are intended for use in fire fighting plants with mica tapes, with and without Aluminum foil and LSZH outer sheath.The fire alarm cables with 30 to 90 minutes circuit integrity should be used for control voltages and data transfer in alarm and fire alarm systems, where a system circuit integrity E30/E60/E90 depending on lay system in accordance with DIN 4102-12 is required. The circuit integrity is guaranteed with a test voltage of 110V.

STANDARDS
Basic design to VDE 0815

FIRE PERFORMANCE

Circuit Integrity

IEC 60331-23; BS 6387 CWZ; DIN VDE 0472-814(FE180);
CEI 20-36/2-1; SS229-1; NBN C 30-004 (cat. F3); NF C32-070-2.3(CR1)

System circuit integrity

DIN 4102-12, E30 depending on lay system

Flame Retardance (Single Vertical
Wire Test)

EN 60332-1-2; IEC 60332-1-2; BS EN 60332-1-2;
VDE 0482-332-1 ; NBN C 30-004 (cat. F1); NF C32-070-
2.1(C2);
CEI 20-35/1-2; EN 50265-2-1*; DIN VDE 0482-265-2-1*

Reduced Fire Propagation
(Vertically-mounted bundled wires
& cable test)

EN 60332-3-24 (cat. C); IEC 60332-3-24; BS EN 60332-3-24; VDE 0482-332-3; NBN C 30-004 (cat. F2); NF C32-070-2.2(C1); CEI 20-22/3-4; EN 50266-2-4*; DIN VDE 0482-266-2-4

Halogen Free

IEC 60754-1; EN 50267-2-1; DIN VDE 0482-267-2-1; CEI 20-37/2-1 ; BS 6425-1*

No Corrosive Gas Emission

IEC 60754-2; EN 50267-2-2; DIN VDE 0482-267-2-2; CEI 20-37/2-2 ; BS 6425-2*

Minimum Smoke Emission

IEC 61034-1&2; EN 61034 -1&2; DIN VDE 0482-1034-1&2; CEI 20-37/3-1&2; EN 50268-1&2*; BS 7622-1&2*

No Toxic gases

NES 02-713; NF C 20-454

Note: Asterisk * denotes superseded standard.

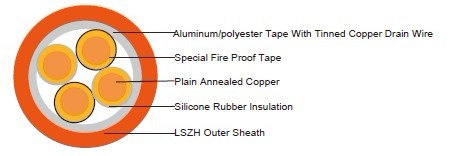

CABLE CONSTRUCTION
Conductors: Plain annealed copper wire, sized 0.8mm solid according to IEC(EN) 60228 class 1.
Flame barrier: Special fire proof tape.
Insulation: Fire resistant silicone rubber type HJ1 as per DIN VDE 0207-23.
Cabling Elements: Insulated cores are twisted to form pairs with varying lay length to minimize
crosstalk. Two-pair cable had four cores laid in quad formation.
Cabling: Pairs are cabled together. In cables with 8 pairs or more, 4 pairs are assembled to form
a bunch, the bunches are then cabled together in concentric layers with suitable non-hygroscopic
fillers.
Overall Screen: Aluminum/polyester tape with tinned copper drain wire.
Outer Sheath: Thermoplastic LSZH compound HM2 as per DIN VDE 0207-24

COLOUR CODE
Insulation Colour:
Each bunch blue - red / grey - yellow / green - brown / white - black
Bunch identication plastic numbered tape
Sheath Colour:
Colour red with printed " BMK - BRANDMELDEKABEL" denoting fire alarms.

TYPE CODE
JE- Fire alarm cable H Halogen free & zero halogen
Bd Unit stranding. (St) Static shield of Aluminum tape
FE180 Insulation integrity (950°C 180 minutes) E30 30 minutes system circuit integrity
STA Corrugated steel tape SWA Steel wire armour
SWB Steel wire braid

Physical AND THERMAL PROPERTIES
Temperature range during operation (fixed state): -30°C – +90°C
Temperature range during installation (mobile state): -20°C – +50°C
Minimum bending radius: 7.5 x Overall Diameter

Electrical PROPERTIES

Conductor Diameter

mm

0.8

Conductor Size

mm2

0.5

Maximum Conductor Resistance @20°C

Ω/km

34.6

Maximum Loop Resistance @20°C

Ω/km

73.2

Minimum Insulation Resistance @500V DC @20°C

MΩ.km

100

Maximum Average Attenuation @0.8KHz

dB/km

1.2

Nominal Mutual Capacitance @0.8KHz

nF/km

120

Maximum Capacitance Unbalance K1 @0.8KHz pair-to-pair

pF/100m

200

Working Voltage

V

225

Nominal Insulation Thickness

mm

0.4

Nominal Insulated Conductor Diameter

mm

1.6

CONSTRUCTION PARAMETERS

Cable Code

Nominal Insulation Thickness

Nominal Sheath Thickness

Nominal Overall Diameter



Approx.
Weight

mm2

mm

mm

mm

kg/km

0.8mm Conductor, Solid 0,5 mm2   Section

JE-SH(St)H...1X2x0.8 FE180/E30 BMK

0.4

1.0

6.1

52

JE-SH(St)H...2X2x0. 8(quad) FE180/E30 BMK

0.4

1.0

7.5

77

JE-SH(St)H...4X2x0. 8 FE180/E30 BMK

0.4

1.0

10.5

133

0.8mm Conductor, Solid 0,5 mm2 Section

JE-SH(St)H...8X2x0.8 Bd FE180/E30 BMK

0.4

1.0

17. 4

296

JE-SH(St)H...12X2x0.8 Bd FE180/E30 BMK

0.4

1.2

18. 9

368

JE-SH(St)H...16X2x0.8 Bd FE180/E30 BMK

0.4

1.2

20. 7

442

JE-SH(St)H...20X2x0.8 Bd FE180/E30 BMK

0.4

1.2

22. 7

508

JE-SH(St)H...32X2x0.8 Bd FE180/E30 BMK

0.4

1.4

24. 5

772

JE-SH(St)H...40X2x0.8 Bd FE180/E30 BMK

0.4

1.4

26. 5

946

JE-SH(St)H...52X2x0.8 Bd FE180/E30 BMK

0.4

1.6

28. 0

1016
