Coaxial Cables |  |
||||||||||
|
||||||||||||
|
||||||||||||

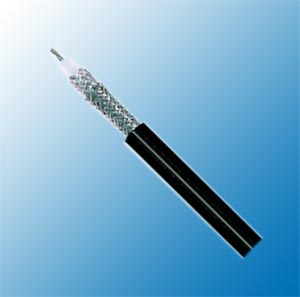

RG 223 TC
Construction
Inner conductor |
Tinned copper |
19 x 0.18 mm |
Dielectric |
Low density PE |
Φ2.95 ± 0.10 mm |
Outer conductor(shield 1) |
Silver plated copper |
112 x 0.13 mm |
Shield coverage |
|
98% |
Outer conductor(shield 2) |
Silver plated copper |
112 x 0.13 mm |
Shield coverage |
|
97% |
Sheath |
PVC or LSZH |
Φ5.40 ± 0.10 mm |
Electrical & Mechanical Characteristics
Impedance |
50±3 Ohm |
Nominal capacitance |
100 pF/m |
Velocity of propagation |
66% |
Insulation resistance |
>2000 Mohm.Km |
Inner conductor resistance |
37.5 Ohm/Km |
Outer conductor resistance |
8 Ohm/Km |
Operating temperature range |
-30 °C - +70 °C |
Copper weight |
32.7 Kg/Km |
Cable weight (approx.) |
54.2 Kg/Km |
Screening effectiveness |
>70 dB |
Attenuation
Frequency(MHz) |
Attenuation (dB/100 m) |
Attenuation (dB/100 ft) |
50 |
9.7 |
2.9 |
100 |
13.9 |
4.24 |
200 |
20.4 |
6.22 |
400 |
30 |
9.15 |
500 |
34.2 |
10.43 |
600 |
37.9 |
11.55 |
860 |
46.9 |
14.3 |
1000 |
51.8 |
15.79 |
Return Loss
30-300 MHz |
>27dB |
300-600 MHz |
>23dB |
600-900 MHz |
>22dB |
