Bus Cables

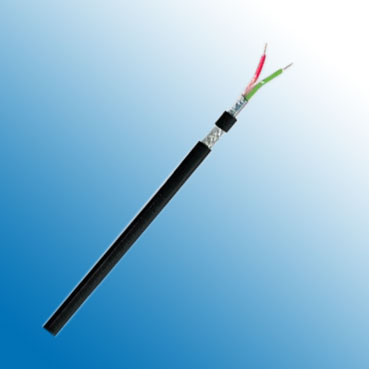

Profibus L2 Outdoor + Industry
Application:
This system cable is used to interconnect L2-BUS components. This cable is an economical solution for the cell and field area. For the information exchange between different automation systems as well as for communication with the connected decentralized field units, serial field bus systems are used. The types mentioned here are suitable for outdoor laying (PE jacket) and industry laying (PUR jacket).
Construction:
| Type/Area of Application | Fixed Installation, Outdoor /Heavy Duty |
| Cable Construction | 1x2x0.64 mm |
| Inner Conductor Diameter | Copper, bare (AWG 22/1) |
| Conductor Insulation | Foam-skin-PE |
| Conductor Colors | Red, green |
| Stranding Element | 2 conductors + 2 fillers stranded together |
| Shielding 1 | Polyester foil over stranded bundle |
| Shielding 2 | Polyester foil, aluminum-lined |
| Total Shielding | Cu braid, tinned |
| Outer Jacket Material | PE/PUR |
| Outer Diameter | 8.0 mm ± 0.4 mm |
| Outer Jacket Color | Black |
Electrical Data:
| Characteristic Impedance @3-20MHz | 150 Ω ± 10 Ω | |||||
| Conductor Resistance | 55.0 Ohm/km max. | |||||
| Insulation Resistance | 1.00 GOhm x km min. | |||||
| Mutual Capacitance @ 1 KHz | 30.0 nF/km nom. | |||||
| Working Voltage | Max: 250 V | |||||
| Test Voltage | 1.5 kV | |||||
| Attenuation | 9.6 |
kHz | < | 2.5 |
dB/km | |
38.4 |
kHz | < | 4.0 |
dB/km | ||
4.0 |
MHz | < | 22.0 |
dB/km | ||
16.0 |
MHz | < | 42.0 |
dB/km | ||
Technical Data：
| Weight: | approximately 66.0 kg/km |
| Min. Bending Radius (Laying) | 15 x OD mm |
| Operating Temp.Range, min. | -40 °C |
| Operating Temp.Range, max. | +70 °C |
