Bus Cables
Application:
Industrial Ethernet ProfiNet cables are designed to provide reliable network communications in the demanding Industrial and Process Control environment where difficult EMC conditions are pervasive. Conforming to the EIA/TIA-568 standard, These Cables support half-duplex high speed communications.It ensures superior transmission properties and can be used even under most severe conditions.

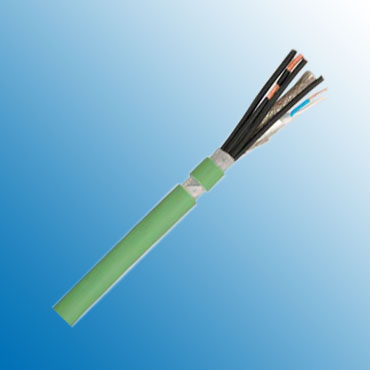

Construction:
Type/Area of Application |
Mobile Use |
Cable Construction |
2x2x0.64 mm (stranded) + 4x1.5 mm2 |
Inner Conductor Diameter 1 |
Copper, tinned (AWG 22/7) |
Inner Conductor Diameter 2 |
Copper, bare (AWG 16/84) |
Conductor Insulation 1 |
Foam-Skin-PE |
Conductor Insulation 2 |
Foam-Skin-PE |
Conductor Colors 1 |
white, yellow, blue, orange |
Conductor Colors 2 |
Black |
Stranding Element |
Double Conductor |
Shielding 1 |
Polyester foil over stranded bundle |
Shielding 2 |
Polyester foil, aluminum lined |
Total Shielding |
Polyester foil |
Outer Jacket Material |
FRNC |
Outer Diameter |
10.3 mm ± 0.3 mm |
Outer Jacket Color |
Green |
Electrical Data:
Characteristic Impedance@1-100 MHz | 100 Ω ± 15 Ω | |
Conductor Resistance | 60.0 Ohm/km max. | |
Insulation Resistance | 0.50 GOhm x km min. | |
Mutual Capacitance | 52.0 nF/km nom. | |
Working Voltage | 300V | |
Test Voltage | 1.5 KV | |
Attenuation | 10 MHz | 6.3 dB/100m |
16 MHz | 8.0 dB/100m | |
62.5 MHz | 16.5 dB/100m | |
100 MHz | 21.3 dB/100m |
Technical Data:
Weight |
approximately 153.0 kg/km |
Min. Bending Radius for Laying |
10 x OD mm |
Operating Temperature Range, min. |
-40 °C |
Operating Temperature Range, max. |
+70 °C |
