Bus Cables

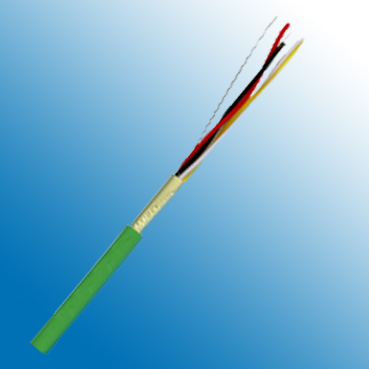

E.I.B Cable(European Installation Bus)
Application:
EIB installation consists of sensors and actuators. The E.I.B. concept allows intergration of Building Management Systems (B.M.S.) over one common system. Lighting, blinds, heating and ventilation can be automatically controlled through the E.I.B cable. This dramatically reduces the cabling required in a modern building. To meet European standards this cable is LSHF throughout. They can be installed over, in, or below the plaster, in pipes and pipe ducts, in dry, moist, and wet areas, as well as outside, provided they are protected against direct exposure to the sun.
Construction:
| Type/Cable Construction | 1 Quad | 2 Pair |
| Inner Conductor | Plain copper conductors 0.8mm | Plain copper conductors 0.8mm |
| Conductor Insulation | Polyethylene | Polyethylene |
| Conductor Colors | White,yellow,red,black | White,yellow,red,black |
| Stranding Element | Cores twisted into a quad | Cores twisted into pairs, pairs laid up |
| Core Wrapping | - | - |
| Shielding | Aluminium/polyester foil screen | Aluminium/polyester foil screen |
| drain wire | Solid copper | Stranded tinned copper |
| Outer Jacket | Low Smoke Halogen Free | Low Smoke Halogen Free |
| Sheath Colour | Green | Green |
Electrical Data:
| Test Voltage | 4KV |
| Working Voltage | Max.150V |
| Conductor resistance | 37.0 Ohm/km @ 20°C |
| Insulation resistance | 1000MΩhms*km @ 20°C |
| Mutual capacitance@800Hz | 100nF/km max |
| Unbalanced capacitance | 300pF/100m max |
Technical Data：
| Weight: | approximately 62.0 kg/km | approximately 57.0 kg/km | |
| Min. Bending Radius (Laying): | 10 x OD mm | 10 x OD mm | |
| Operating temperature, min | -20°C(fixed) | -5°C (installation) | |
| Operating temperature, max | +70°C(fixed) | +50°C(installation) | |
