Multi-core 600/1000 V cables with lead sheath

APPLICATION

These power and control cables are used for electricity supply in low voltage installation system. They are well adapted to underground use in industrial applications, in moist areas, where hydrocarbon and mechanical protections are needed and are protected against solvent penetration and corrosive attacks. The lead cover brings an enhanced resistance to aromatic hydrocarbons.

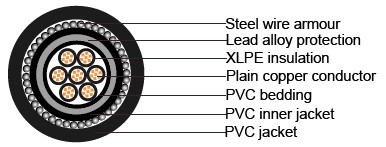

CONSTRUCTION

Conductor Stranded copper conductor, Class 2 to BS 6460, IEC 60228.
Insulation XLPE (Cross-Linked Polyethylene) Type GP 8 or ethylene propylene rubber (GP 6)
Colour Code 1 Core : Brown
2 Cores : Brown or Blue
3 Cores : Brown, Black, Grey
4 Cores : Blue, Brown, Black, Grey
5 Cores : Green/Yellow, Blue, Brown, Black, Grey
Above 5 Cores : White Cores with black numerals
Bedding PVC (Polyvinyl Chloride)
Protection LC (Lead alloy 'E') sheathed
Inner Sheath PVC (Polyvinyl Chloride)
Armour Single Core : AWA (Aluminum Wire Armour)
Multi Core : SWA (Steel Wire Armour)
Outer Sheath PVC(Polyvinyl Chloride), or anti-rodent and anti-termite PVC(optional)

TECHNICAL INFORMATION

Voltage rating 600/1000V
Temperature rating 0°C to +90°C
Bending radius 12 x overall diameter
Flame retardant IEC60332 part 1, BS4066 part 1

CABLE PARAMETER

Nominal Cross-sectional Area Strand Type Nominal Insulation thickness Nominal Lead Sheath thickness Nominal Inner Sheath thickness Nominal Steel Wire Armor dia. Nominal Outer Sheath thickness Approx. Overall Diameter Aprrox. Weight
mm² No./mm mm mm mm mm mm mm kg/km
7x1.5 7/0.53 0.7 1.2 0.8 1.25 1.4 20.5 1290
12x1.5 7/0.53 0.7 1.2 0.8 1.6 1.5 23.5 1395
19x1.5 7/0.53 0.7 1.2 0.8 1.6 1.6 26.5 1720
27x1.5 7/0.53 0.7 1.3 1 1.6 1.7 30.5 1695
37x1.5 7/0.53 0.7 1.5 1 1.6 1.8 34 1960
7x2.5 7/0.67 0.7 1.2 0.8 1.25 1.4 21 2485
12x2.5 7/0.67 0.7 1.2 0.8 1.6 1.6 25.5 2070
19x2.5 7/0.67 0.7 1.3 1 1.6 1.7 29 2545
27x2.5 7/0.67 0.7 1.4 1 1.6 1.8 33.5 3205
37x2.5 7/0.67 0.7 1.5 1 2 1.8 37.5 2660
7x4 7/0.85 0.7 1.2 0.8 1.25 1.5 23.5 3260
12x4 7/0.85 0.7 1.3 1 1.6 1.6 28.5 4430
19x4 7/0.85 0.7 1.4 1 1.6 1.7 32.5 3310
27x4 7/0.85 0.7 1.5 1 2 1.9 38.5 4215
37x4 7/0.85 0.7 1.6 1.2 2 2 42.5 5440
