Multipair Overall Foil & Braid Screened Cables
Multipair Overall Foil & Braid Screened Cables-Belden Equivalent 9855
Application
These cables have pairs laid up in a foil/braid screen. These cables are suitable for EIA RS 232 and CAD/CAM applications, used as computer cables.

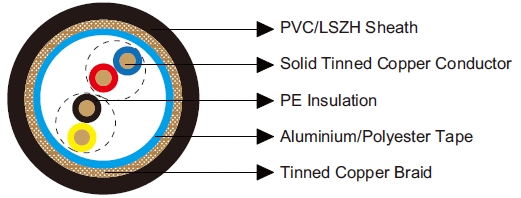

Construction
Conductor: Tinned copper wire.
Insulation: PE.
Overall Screen1: Aluminium/Polyester Tape.
Overall Screen2: Tinned copper braid, 58% coverage.
Sheath: PVC/LSZH.
Insulation Colour: Red & Blue, Black & Yellow.
Electrical & Mechanical Characteristics
AWG | 22 | |
Conductor Construction | Solid | |
UL Style | 2582 | |
Maximum Conductor Resistance | Ω/km | 54.8 |
Voltage Rating | V | 150 |
Nominal Capacitance Conductor to Conductor | pF/m | 51 |
Nominal Capacitance Conductor to Screen | pF/m | 90 |
Bending Radius | 10xOverall Diameter | |
Operating Temperature | ℃ | -20~60 |
Dimensions
Ordering Code | No. of pairs | Insulation Thickness | Sheath Thickness | Overall Diameter |
mm | mm | mm | ||
BE119855V | 2 | 0.4 | 0.813 | 6.9 |
BE119855H | 2 | 0.4 | 0.813 | 6.9 |
