Multipair Overall Foil & Braid Screened Cables
Multipair Overall Foil & Braid Screened Cables-Belden Equivalent 9842
Application
These cables have pairs laid up in a foil/braid screen, suitable for RS 485 applications.

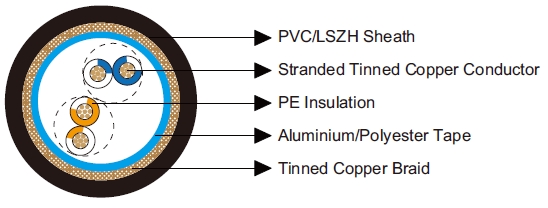

Construction
Conductor: Tinned copper wire.
Insulation: PE.
Overall Screen1: Aluminium/Polyester Tape.
Overall Screen2: Tinned copper braid, 90% coverage.
Sheath: PVC/LSZH.
Insulation Colour: White/Blue & Blue/White, White/Orange & Orange/White.
Electrical & Mechanical Characteristics
AWG | 24 | |
Conductor Construction | 7x0.2 | |
UL Style | 2919 | |
Maximum Conductor Resistance | Ω/km | 85 |
Voltage Rating | V | 30 |
Nominal Capacitance Conductor to Conductor | pF/m | 42 |
Nominal Capacitance Conductor to Screen | pF/m | 76 |
Bending Radius | 10xOverall Diameter | |
Operating Temperature | ℃ | -30~80 |
Dimensions
Ordering Code | No. of pairs | Insulation Thickness | Sheath Thickness | Overall Diameter |
mm | mm | mm | ||
BE119842V | 2 | 0.6 | 0.81 | 8.6 |
BE119842H | 2 | 0.6 | 0.81 | 8.6 |
