Multipair Overall Foil & Braid Screened Cables
Multipair Overall Foil & Braid Screened Cables-Belden Equivalent 9841
Application
These cables have pairs laid up in a foil/braid screen, suitable for RS 485 applications.

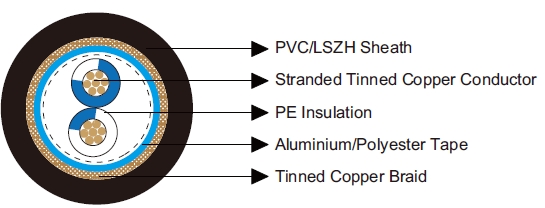

Construction
Conductor: Tinned copper wire.
Insulation: PE.
Overall Screen1: Aluminium/Polyester Tape.
Overall Screen2: Tinned copper braid, 90% coverage.
Sheath: PVC/LSZH.
Insulation Colour: White/Blue & Blue/White.
Electrical & Mechanical Characteristics
| AWG | 24 | |
| Conductor Construction | 7x0.2 | |
| UL Style | 2919 | |
| Maximum Conductor Resistance | Ω/km | 85 |
| Voltage Rating | V | 30 |
| Nominal Capacitance Conductor to Conductor | pF/m | 42 |
| Nominal Capacitance Conductor to Screen | pF/m | 76 |
| Bending Radius | 10xOverall Diameter | |
| Operating Temperature | ℃ | -30~80 |
Dimensions
| Ordering Code | No. of pairs | Insulation Thickness | Sheath Thickness | Overall Diameter |
| mm | mm | mm | ||
| BE119841V | 1 | 0.6 | 0.81 | 5.9 |
| BE119841H | 1 | 0.6 | 0.81 | 5.9 |
