Multipair Individually Screened Cables
Multipair Individually Screened Cables-Belden Equivalent 9774
Application
These cables have individually screened pairs laid up. Each individually screened pair has a 20AWG stranded tinned copper drain wire. These cables are used as computer cables.

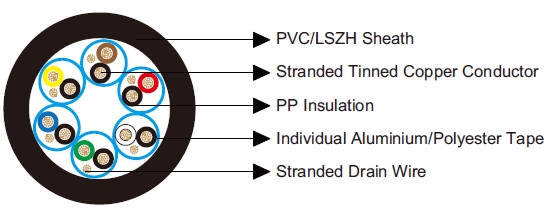

Construction
Conductor: Tinned copper wire.
Insulation: PP.
Individual Screen: Aluminium/Polyester Tape.
Drain Wire: Tinned copper wire.
Sheath: PVC/LSZH.
Insulation Colour: Black & Red, Black & White, Black & Green, Black & Blue, Black & Yellow, Black & Brown.
Electrical & Mechanical Characteristics
AWG | 18 | |
Conductor Construction | 19x0.254 | |
UL Style | 2919 | |
Maximum Conductor Resistance | Ω/km | 21 |
Voltage Rating | V | 30 |
Nominal Capacitance Conductor to Conductor | pF/m | 98 |
Nominal Capacitance Conductor to Screen | pF/m | 180 |
Bending Radius | 10xOverall Diameter | |
Operating Temperature | ℃ | -20~80 |
Dimensions
Ordering Code | No. of pairs | Insulation Thickness | Sheath Thickness | Overall Diameter |
mm | mm | mm | ||
BE119774V | 6 | 0.4 | 1.22 | 14.1 |
BE119774H | 6 | 0.4 | 1.22 | 14.1 |
