Multicore Overall Screened Cables-Belden Equivalent 9770
Application
These multicore overall screened cables have individually insulated cores laid up in an
aluminum/polyester tape with a tinned copper drain wire. These cables are suitable for used as
audio, control and instrumentation cables.
Construction

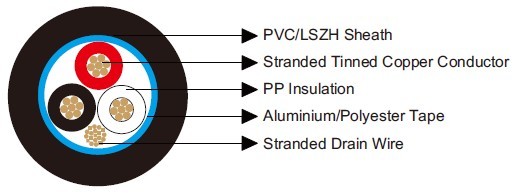

Conductor: Tinned copper wire.
Insulation: PP.
Overall Screen: Aluminium/Polyester
tape.
Drain Wire: Tinned copper wire.
Sheath: PVC (V type)/LSZH (H type).
Insulation Colour: Black, Red, White.
Electrical & Mechanical Characteristics
AWG | 22 | |
Conductor Construction | 7x0.254 | |
Maximum Conductor Resistance | Ω/km | 54.8 |
Voltage Rating | V | 300 |
Nominal Capacitance Conductor to Conductor | pF/m | 105 |
Nominal Capacitance Conductor to Screen | pF/m | 197 |
Bending Radius | 10xOverall Diameter | |
Operating Temperature | ℃ | -20~90 |
Dimensions
Ordering Code | No. of Cores | Insulation Thickness | Sheath Thickness | Overall Diameter |
mm | mm | mm | ||
BE119770V | 3 | 0.20 | 0.51 | 3.7 |
BE119770H | 3 | 0.20 | 0.51 | 3.7 |
