Multipair Individually Screened Cables
Multipair Individually Screened Cables-Belden Equivalent 9737
Application
These cables have individually screened pairs laid up. Each individually screened pair has a 24AWG stranded tinned copper drain wire. These cables are suitable for RS-422 applications, used as computer cables.
Construction

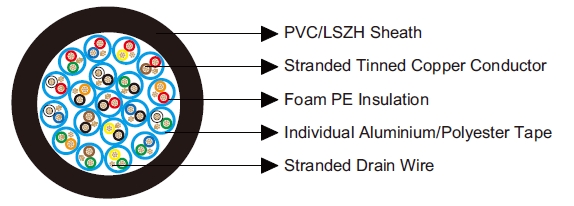

Conductor: Tinned copper wire.
Insulation: FoamPE.
Individual Screen: Aluminium/Polyester Tape.
Drain Wire: Tinned copper wire.
Sheath: PVC/LSZH.
Insulation Colour: Black & Red, Black & White, Black & Green, Black & Blue, Black & Yellow, Black & Brown, Black & Orange, Red & White, Red & Green, Red & Blue, Red & Yellow, Red & Brown, Red & Orange, Green & White, Green & Blue, Green & Yellow, Green & Brown, Green & Orange, White & Blue.
Electrical & Mechanical Characteristics
| AWG | 24 | |
| Conductor Construction | 7x0.2 | |
| UL Style | 2493 | |
| Maximum Conductor Resistance | Ω/km | 85 |
| Voltage Rating | V | 300 |
| Nominal Capacitance Conductor to Conductor | pF/m | 41 |
| Nominal Capacitance Conductor to Screen | pF/m | 76 |
| Bending Radius | 10xOverall Diameter | |
| Operating Temperature | ℃ | -20~60 |
Dimensions
| Ordering Code | No. of pairs | Insulation Thickness | Sheath Thickness | Overall Diameter |
| mm | mm | mm | ||
| BE119737V | 19 | 0.47 | 1.22 | 17.0 |
| BE119737H | 19 | 0.47 | 1.22 | 17.0 |
