Multipair Overall Screened Cables-Belden Equivalent 9681
Application
These multipair overall screened cables have pairs laid up in an aluminum/polyester tape with
a tinned copper drain wire. These cables are used as low capacitance computer cables for EIA
RS-232/422 applications.

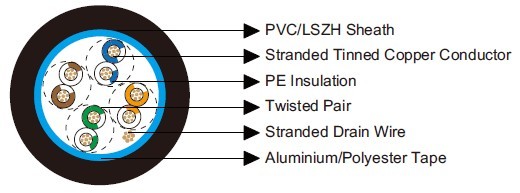

Construction
Conductor: Tinned copper wire.
Insulation: PE.
Overall Screen: Aluminium/Polyester
tape.
Drain Wire: Tinned copper wire.
Sheath: PVC (V type)/LSZH (H type).
Insulation Colour: White/Blue & Blue/White, White/Orange & Orange/White, White/Green& Green/White, White/Brown & Brown/White.
Electrical & Mechanical Characteristics
| AWG | 24 | |
| Conductor Construction | 7x0.2 | |
| UL Style | 2919 | |
| Maximum Conductor Resistance | Ω/km | 85 |
| Voltage Rating | V | 30 |
| Nominal Capacitance Conductor to Conductor | pF/m | 51 |
| Nominal Capacitance Conductor to Screen | pF/m | 90 |
| Bending Radius | 10xOverall Diameter | |
| Operating Temperature | ℃ | -20~80 |
Dimensions
| Ordering Code | No. of Cores | Insulation Thickness | Sheath Thickness | Overall Diameter |
| mm | mm | mm | ||
| BE119681V | 4 | 0.25 | 0.89 | 7.1 |
| BE119681H | 4 | 0.25 | 0.89 | 7.1 |
