Multicore Overall Screened Cables
Multicore Overall Screened Cables-Belden Equivalent 9544
Application
These multicore overall screened cables have individually insulated cores laid up in an
aluminum/polyester tape with a tinned copper drain wire. These cables are suitable for RS232
applications, used as audio, control and instrumentation cables.

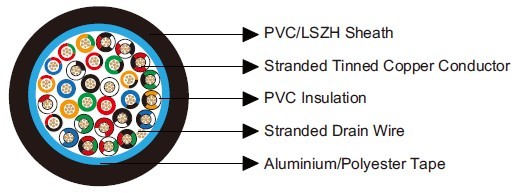

Construction
Conductor: Tinned copper wire.
Insulation: PVC.
Overall Screen: Aluminium/Polyester Tape.
Drain Wire: Stranded Tinned Copper, 7x0.20.
Sheath: PVC (V type)/LSZH (H type).
Insulation Colour:Black, White, Red, Green, Orange, Blue, White/Black, Red/Black, Green/
Black, Orange/Black, Blue/Black, Black/White, Red/White, Green/White, Blue/White, Black/Red,
White/Red, Orange/Red, Blue/Red, Red/Green, Orange/Green, Black/White/Red, White/Black/Red,
Red/Black/White, Green/Black/White, Orange/Black/White, Blue/Black/White, Black/Red/Green,
White/Red/Green, Red/Black/Green.
Electrical & Mechanical Characteristics
| AWG | 24 | |
| Conductor Construction | 7x0.20 | |
| UL Style | 2464 | |
| Maximum Conductor Resistance | Ω/km | 85 |
| Voltage Rating | V | 300 |
| Nominal Capacitance Conductor to Conductor | pF/m | 98 |
| Nominal Capacitance Conductor to Screen | pF/m | 180 |
| Bending Radius | 10xOverall Diameter | |
| Operating Temperature | ℃ | -30~80 |
Dimensions
| Ordering Code | No. of Cores | Insulation Thickness | Sheath Thickness | Overall Diameter |
| mm | mm | mm | ||
| BE119544V | 30 | 0.25 | 1.02 | 9.7 |
| BE119544H | 30 | 0.25 | 1.02 | 9.7 |
