Multicore Overall Screened Cables-Belden Equivalent 9538
Application
These multicore overall screened cables have individually insulated cores laid up in an
aluminum/polyester tape with a tinned copper drain wire. These cables are suitable for RS232
applications, used as audio, control and instrumentation cables.

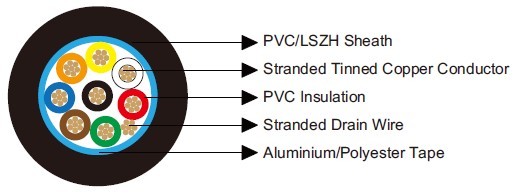

Construction
Conductor: Tinned copper wire.
Insulation: PVC.
Overall Screen: Aluminium/Polyester Tape.
Drain Wire: Stranded Tinned Copper, 7x0.20.
Sheath: PVC (V type)/LSZH (H type).
Insulation Colour:Black, White, Red, Green, Brown, Blue,Orange, Yellow.
Electrical & Mechanical Characteristics
| AWG | 24 | |
| Conductor Construction | 7x0.20 | |
| UL Style | 2464 | |
| Maximum Conductor Resistance | Ω/km | 85 |
| Voltage Rating | V | 300 |
| Nominal Capacitance Conductor to Conductor | pF/m | 108 |
| Nominal Capacitance Conductor to Screen | pF/m | 213 |
| Bending Radius | 10xOverall Diameter | |
| Operating Temperature | ℃ | -30~80 |
Dimensions
| Ordering Code | No. of Cores | Insulation Thickness | Sheath Thickness | Overall Diameter |
| mm | mm | mm | ||
| BE119538V | 8 | 0.25 | 0.81 | 5.7 |
| BE119538H | 8 | 0.25 | 0.81 | 5.7 |
