Multicore Overall Screened Cables
Multipair Overall Screened Cables-Belden Equivalent 9509
Application
These multipair overall screened cables have pairs laid up in an aluminum/polyester tape with a
tinned copper drain wire. These cables are suitable for RS232 applications, used as audio, control
and instrumentation cables.

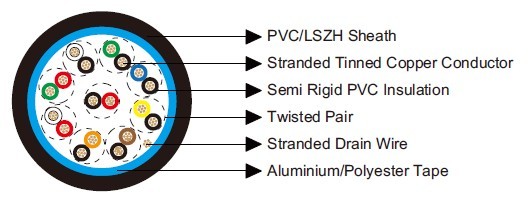

Construction
Conductor: Tinned copper wire.
Insulation: Semi-Rigid PVC.
Overall Screen: Aluminium/Polyester
tape.
Drain Wire: Tinned copper wire.
Sheath: PVC (V type)/LSZH (H type).
Insulation Colour: Black/Red, Black/White, Black/Green, Black/Blue, Black/Yellow, Black/Brown, Black/Orange, Red/White, Red/Green.
Electrical & Mechanical Characteristics
| AWG | 24 | |
| Conductor Construction | 7x0.2 | |
| UL Style | 2464 | |
| Maximum Conductor Resistance | Ω/km | 85 |
| Voltage Rating | V | 300 |
| Nominal Capacitance Conductor to Conductor | pF/m | 98 |
| Nominal Capacitance Conductor to Screen | pF/m | 164 |
| Bending Radius | 10xOverall Diameter | |
| Operating Temperature | ℃ | -30~80 |
Dimensions
| Ordering Code | No. of Cores | Insulation Thickness | Sheath Thickness | Overall Diameter |
| mm | mm | mm | ||
| BE119509V | 9 | 0.25 | 0.89 | 8.5 |
| BE119509H | 9 | 0.25 | 0.89 | 8.5 |
