Belden Equivalent Cables |
 |
||||||||||||
|
||||||||||||||
|
||||||||||||||
Multicore Overall Screened Cables
Multipair Overall Screened Cables-Belden Equivalent 9327
Application

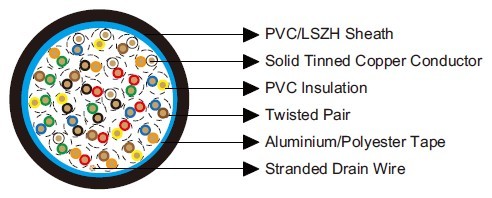

These multipair overall screened cables have pairs laid up in an aluminum/polyester tape with a
tinned copper drain wire. These cables are suitable for used as audio, control and instrumentation
cables.
Construction
Conductor: Tinned copper wire.
Insulation: PVC.
Overall Screen: Aluminium/Polyester
tape.
Drain Wire: Tinned copper wire.
Sheath: PVC (V type)/LSZH (H type).
Insulation Colour: Black/Red, Black/White, Black/Green, Black/Blue, Black/Yellow, Black/Brown, Black/Orange, Red/White, Red/Green, Red/Blue, Red/Yellow, Red/Brown, Red/Orange,
Green/White, Green/Blue, Green/Yellow, Green/Brown, Green/Orange, White/Blue, White/Yellow,
White/Brown, White/Orange, Blue/Yellow, Blue/Brown, Blue/Orange, Brown/Yellow, Brown/Orange.
Electrical & Mechanical Characteristics
| AWG | 22 | |
| Conductor Construction | Solid | |
| UL Style | 2464 | |
| Maximum Conductor Resistance | Ω/km | 54.8 |
| Voltage Rating | V | 300 |
| Nominal Capacitance Conductor to Conductor | pF/m | 115 |
| Nominal Capacitance Conductor to Screen | pF/m | 164 |
| Bending Radius | 10xOverall Diameter | |
| Operating Temperature | ℃ | -20~80 |
Dimensions
| Ordering Code | No. of Cores | Insulation Thickness | Sheath Thickness | Overall Diameter |
| mm | mm | mm | ||
| BE119327V | 27 | 0.33 | 1.14 | 15.6 |
| BE119327H | 27 | 0.33 | 1.14 | 15.6 |
