Multicore Overall Screened Cables
Multicore Overall Screened Cables-Belden Equivalent 9260
Application
These multicore overall screened cables have individually insulated cores laid up in a tinned
copper braid screen, suitable for used as control cables.

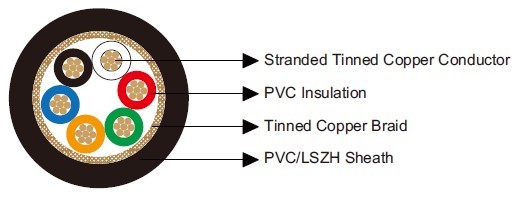

Construction
Conductor: Tinned copper wire.
Insulation: PVC.
Overall Screen: Tinned copper braid,
85% coverage.
Sheath: PVC (V type)/LSZH (H type).
Insulation Colour: Black, White, Red, Green, Orange, Blue.
Electrical & Mechanical Characteristics
| AWG | 20 | |
| Conductor Construction | 7x0.32 | |
| UL Style | 2464 | |
| Maximum Conductor Resistance | Ω/km | 34.1 |
| Voltage Rating | V | 300 |
| Nominal Capacitance Conductor to Conductor | pF/m | 85 |
| Nominal Capacitance Conductor to Screen | pF/m | 164 |
| Bending Radius | 10xOverall Diameter | |
| Operating Temperature | ℃ | -20~80 |
Dimensions
| Ordering Code | No. of Cores | Insulation Thickness | Sheath Thickness | Overall Diameter |
| mm | mm | mm | ||
| BE119260V | 6 | 0.41 | 0.81 | 7.8 |
| BE119260H | 6 | 0.41 | 0.81 | 7.8 |
