Multipair Overall Screened Cables-Belden Equivalent 9154
Application
These multipair overall screened cables have pairs laid up in an aluminum/polyester tape with a
tinned copper drain wire. These cables are suitable for used as audio, control and instrumentation
cables.

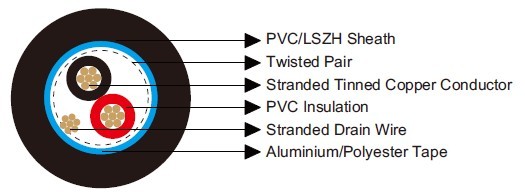

Construction
Conductor: Tinned copper wire.
Insulation: PVC.
Overall Screen: Aluminium/Polyester
tape.
Drain Wire: Tinned copper wire.
Sheath: PVC (V type)/LSZH (H type).
Insulation Colour: Black/Red.
Electrical & Mechanical Characteristics
AWG | 20 | |
Conductor Construction | 7x0.32 | |
UL Style | 2464 | |
Maximum Conductor Resistance | Ω/km | 34.1 |
Voltage Rating | V | 300 |
Nominal Capacitance Conductor to Conductor | pF/m | 197 |
Nominal Capacitance Conductor to Screen | pF/m | 328 |
Bending Radius | 10xOverall Diameter | |
Operating Temperature | ℃ | -20~80 |
Dimensions
Ordering Code | No. of Cores | Insulation Thickness | Sheath Thickness | Overall Diameter |
mm | mm | mm | ||
BE119154V | 1 | 0.36 | 0.79 | 5.0 |
BE119154H | 1 | 0.36 | 0.79 | 5.0 |
