Multipair Individually Screened Cables
Multipair Individually Screened Cables-Belden Equivalent 8766
Application
These cables have individually screened pairs laid up. Each individually screened pair has a 22AWG solid tinned copper drain wire. These cables are suitable for used as audio, control and instrumentation cables.

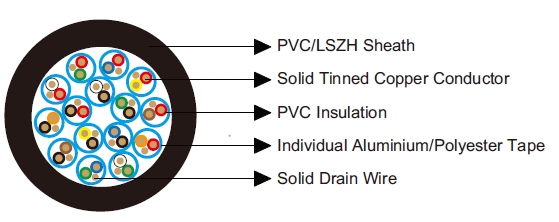

Construction
Conductor: Tinned copper wire.
Insulation: PVC.
Individual Screen: Aluminium/Polyester Tape.
Drain Wire: Solid tinned copper wire.
Sheath: PVC/LSZH.
Insulation Colour: Black & Red, Black & White, Black & Green, Black & Blue, Black & Yellow, Black & Brown, Black & Orange, Red & White, Red & Green, Red & Blue, Red & Yellow, Red & Brown, Red & Orange, Green & White, Green & Blue.
Electrical & Mechanical Characteristics
| AWG | 22 | |
| Conductor Construction | Solid | |
| UL Style | 2464 | |
| Maximum Conductor Resistance | Ω/km | 54.8 |
| Voltage Rating | V | 300 |
| Nominal Capacitance Conductor to Conductor | pF/m | 131 |
| Nominal Capacitance Conductor to Screen | pF/m | 253 |
| Bending Radius | 10xOverall Diameter | |
| Operating Temperature | ℃ | -20~80 |
Dimensions
| Ordering Code | No. of pairs | Insulation Thickness | Sheath Thickness | Overall Diameter |
| mm | mm | mm | ||
| BE118766V | 15 | 0.33 | 1.14 | 13.3 |
| BE118766H | 15 | 0.33 | 1.14 | 13.3 |
