Multipair Overall Screened Cables-Belden Equivalent 8760
Application
These multipair overall screened cables have pairs laid up in an aluminum/polyester tape with a
tinned copper drain wire. These cables are suitable for used as audio, control and instrumentation
cables.

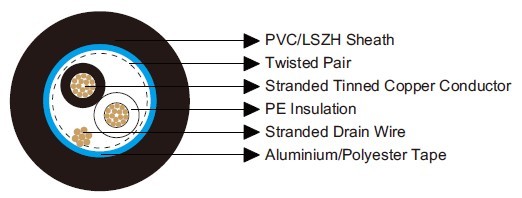

Construction
Conductor: Tinned copper wire.
Insulation: PE.
Overall Screen: Aluminium/Polyester
tape.
Drain Wire: Tinned copper wire.
Sheath: PVC (V type)/LSZH (H type).
Insulation Colour: Black, Clear.
Electrical & Mechanical Characteristics
| AWG | 18 | |
| Conductor Construction | 16x0.25 | |
| UL Style | 2092 | |
| Maximum Conductor Resistance | Ω/km | 23 |
| Voltage Rating | V | 300 |
| Nominal Capacitance Conductor to Conductor | pF/m | 98 |
| Nominal Capacitance Conductor to Screen | pF/m | 176 |
| Bending Radius | 10xOverall Diameter | |
| Operating Temperature | ℃ | -20~60 |
Dimensions
| Ordering Code | No. of Cores | Insulation Thickness | Sheath Thickness | Overall Diameter |
| mm | mm | mm | ||
| BE118760V | 1 | 0.46 | 0.71 | 5.6 |
| BE118760H | 1 | 0.46 | 0.71 | 5.6 |
