Multicore Overall Screened Cables-Belden Equivalent 8735
Application
These multicore overall screened cables have individually insulated cores laid up in a tinned
copper braid screen, suitable for used as communication and instrumentation cables.

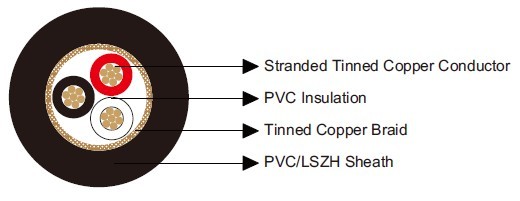

Construction
Conductor: Tinned copper wire.
Insulation: PVC.
Overall Screen: Tinned copper braid,
70% coverage.
Drain Wire: Stranded Tinned Copper.
Sheath: PVC (V type)/LSZH (H type).
Insulation Colour: Black, Red, White.
Electrical & Mechanical Characteristics
| AWG | 22 | |
| Conductor Construction | 7x0.254 | |
| UL Style | 2095 | |
| Maximum Conductor Resistance | Ω/km | 54.8 |
| Voltage Rating | V | 300 |
| Nominal Capacitance Conductor to Conductor | pF/m | 112 |
| Nominal Capacitance Conductor to Screen | pF/m | 197 |
| Bending Radius | 10xOverall Diameter | |
| Operating Temperature | ℃ | -20~80 |
Dimensions
| Ordering Code | No. of Cores | Insulation Thickness | Sheath Thickness | Overall Diameter |
| mm | mm | mm | ||
| BE118735V | 3 | 0.38 | 0.64 | 5.1 |
| BE118735H | 3 | 0.38 | 0.64 | 5.1 |
