Multicore Overall Screened Cables
Multicore Overall Screened Cables-Belden Equivalent 8729
Application
These multicore overall screened cables have individually insulated cores laid up in an
aluminum/polyester tape with a drain wire. These cables are suitable for used as audio, control and
instrumentation cables.

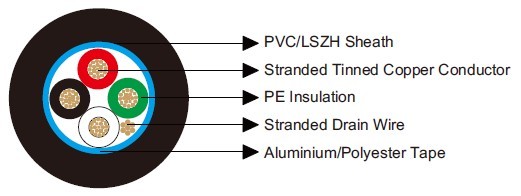

Construction
Conductor: Tinned copper wire.
Insulation: PE.
Overall Screen: Aluminium/Polyester
tape.
Drain Wire: Tinned copper covered steel.
Sheath: PVC (V type)/LSZH (H type).
Insulation Colour: Black, Red, Green, Clear.
Electrical & Mechanical Characteristics
| AWG | 22 | |
| Conductor Construction | 19x0.16 | |
| UL Style | 2094 | |
| Maximum Conductor Resistance | Ω/km | 54.8 |
| Voltage Rating | V | 300 |
| Nominal Capacitance Conductor to Conductor | pF/m | 72 |
| Nominal Capacitance Conductor to Screen | pF/m | 138 |
| Bending Radius | 10xOverall Diameter | |
| Operating Temperature | ℃ | -40~75 |
Dimensions
| Ordering Code | No. of Cores | Insulation Thickness | Sheath Thickness | Overall Diameter |
| mm | mm | mm | ||
| BE118729V | 4 | 0.41 | 1.30 | 6.5 |
| BE118729H | 4 | 0.41 | 1.30 | 6.5 |
