Multipair Individually Screened Cables-Belden Equivalent 8723

Application

These cables have individually screened pairs laid up and a tinned copper drain wire. These cables are suitable for used as audio, control and computer cables.

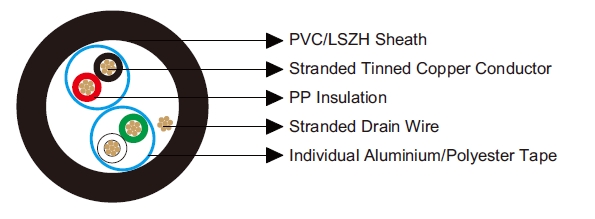

Construction

Conductor: Tinned copper wire.

Insulation: PP.

Individual Screen: Aluminium/Polyester Tape.

Drain Wire: Tinned copper wire.

Sheath: PVC/LSZH.

Insulation Colour: Red & Black, Green & White.

Electrical & Mechanical Characteristics

AWG		22
Conductor Construction		7x0.254
Maximum Conductor Resistance	Ω/km	54.8
Voltage Rating	V	300
Nominal Capacitance Conductor to Conductor	pF/m	108
Nominal Capacitance Conductor to Screen	pF/m	203
Bending Radius		10xOverall Diameter
Operating Temperature	℃	-20~60

Dimensions

Ordering Code	No. of pairs	Insulation Thickness	Sheath Thickness	Overall Diameter
		mm	mm	mm
BE118723V	2	0.2	0.5	4.3
BE118723H	2	0.2	0.5	4.3
