Belden Equivalent Cables
Multipair Overall Screened Cables
Multipair Overall Screened Cables-Belden Equivalent 8718
Application
These multipair overall screened cables have pairs laid up in an aluminum/polyester tape with a tinned copper drain wire. These cables are suitable for used as audio, control and instrumentation cables.

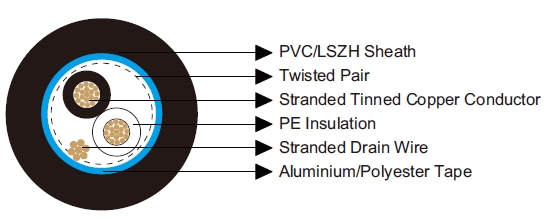

Construction
Conductor: Tinned copper wire.
Insulation: PE.
Overall Screen: Aluminium/Polyester Tape.
Drain Wire: Tinned copper wire.
Sheath: PVC/LSZH.
Insulation Colour: Black, Clear.
Electrical & Mechanical Characteristics
AWG | 12 | |
Conductor Construction | 19x0.46 | |
UL Style | 20253 | |
Maximum Conductor Resistance | Ω/km | 8 |
Voltage Rating | V | 600 |
Nominal Capacitance Conductor to Conductor | pF/m | 82 |
Nominal Capacitance Conductor to Screen | pF/m | 161 |
Bending Radius | 10xOverall Diameter | |
Operating Temperature | ℃ | -20~80 |
Dimensions
Ordering Code | No. of pairs | Insulation Thickness | Sheath Thickness | Overall Diameter |
mm | mm | mm | ||
BE118718V | 1 | 0.94 | 0.86 | 10.2 |
BE118718H | 1 | 0.94 | 0.86 | 10.2 |
