Multicore Overall Screened Cables
Multipair Overall Screened Cables-Belden Equivalent 8441
Application
These multipair overall screened cables have pairs laid up in a braid screen. These cables are
suitable for used as audio, control and instrumentation cables.

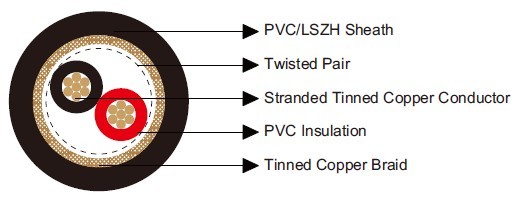

Construction
Conductor: Tinned copper wire.
Insulation: PVC.
Separator: Polyester Tape.
Overall Screen: Tinned copper braid,
86% coverage.
Sheath: PVC (V type)/LSZH (H type).
Insulation Colour: Black/Red.
Electrical & Mechanical Characteristics
| AWG | 22 | |
| Conductor Construction | 7x0.254 | |
| UL Style | 2095 | |
| Maximum Conductor Resistance | Ω/km | 54.8 |
| Voltage Rating | V | 300 |
| Nominal Capacitance Conductor to Conductor | pF/m | 161 |
| Nominal Capacitance Conductor to Screen | pF/m | 282 |
| Bending Radius | 10xOverall Diameter | |
| Operating Temperature | ℃ | -20~80 |
Dimensions
| Ordering Code | No. of Cores | Insulation Thickness | Sheath Thickness | Overall Diameter |
| mm | mm | mm | ||
| BE118441V | 1 | 0.38 | 0.64 | 4.9 |
| BE118441H | 1 | 0.38 | 0.64 | 4.9 |
