Belden Equivalent Cables
Multipair Overall Foil & Braid Screened Cables
Multipair Overall Foil & Braid Screened Cables-Belden Equivalent 8342
Application
These cables have pairs laid up in a foil/braid screen. These cables are suitable for EIA RS-232 and CAD/CAM applications, used as computer cables.

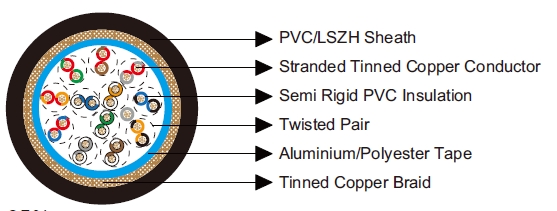

Construction
Conductor: Tinned copper wire.
Insulation: Semi Rigid PVC.
Overall Screen1: Aluminium/Polyester Tape.
Overall Screen2: Tinned copper braid, 65% coverage.
Sheath: PVC/LSZH.
Insulation Colour: White/Blue & Blue/White, White/Orange & Orange/White, White/Green & Green/White, White/Brown & Brown/White, White/Gray & Gray/White, Red/Blue & Blue/Red, Red/Orange & Orange/Red, Red/ Green & Green/Red, Red/Brown & Brown/Red, Red/Gray & Gray/Red, Black/Blue & Blue/Black, Black/Orange & Orange/Black, Gray (single conductor).
Electrical & Mechanical Characteristics
| AWG | 24 | |
| Conductor Construction | 7x0.2 | |
| UL Style | 2464 | |
| Maximum Conductor Resistance | Ω/km | 85 |
| Voltage Rating | V | 300 |
| Nominal Capacitance Conductor to Conductor | pF/m | 98 |
| Nominal Capacitance Conductor to Screen | pF/m | 164 |
| Bending Radius | 10xOverall Diameter | |
| Operating Temperature | ℃ | -30~80 |
Dimensions
| Ordering Code | No. of pairs | Insulation Thickness | Sheath Thickness | Overall Diameter |
| mm | mm | mm | ||
| BE118342V | 12 | 0.25 | 0.81 | 10.3 |
| BE118342H | 12 | 0.25 | 0.81 | 10.3 |
