Multicore Unscreened Armoured Cables-Belden Equivalent 28538
Application
These multicore unscreened armoured cables are Type MC Metal Clad cables.

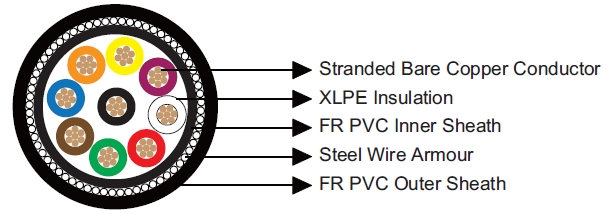

Construction
Conductor: Bare copper wire.
Insulation: XLPE.
Inner Sheath: FR PVC.
Armour: Steel wire armour
Outer Sheath: FR PVC
Insulation Colour: Black, White, Red, Green, Brown, Blue, Orange, Yellow, Purple. Other
colours are available upon your request.
Electrical & Mechanical Characteristics
AWG | 12 | |
Conductor Construction | 7x20 | |
Nominal Conductor DC Resistance @20℃ | Ω/km | 5 |
Voltage Rating | V | 600 |
Bending Radius | 13xOverall Diameter | |
Operating Temperature | ℃ | -40~90 |
Dimensions
Ordering Code | No. of pairs | Insulation Thickness | Sheath Thickness | Overall Diameter |
mm | mm | mm | ||
BE1128538V SWA | 9 | 0.8 | 1.7 | 24.82 |
