Multipair Overall Foil & Braid Screened Cables
Multipair Overall Screened Armoured Cables-Belden Equivalent 26503
Application
These multipair overall screened armoured cables provide excellent protections. They are ACIC armoured cables, used as instrumentation cables.

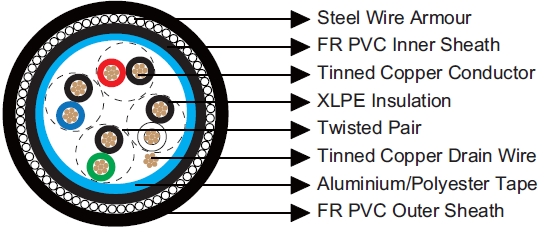

Construction
Conductor: Tinned copper wire.
Insulation: XLPE.
Overall Screen: Aluminium/Polyester tape.
Drain Wire: 18 AWG (7X26) tinned copper wire.
Inner Sheath: FR PVC.
Armour: Steel wire armour
Outer Sheath: FR PVC
Insulation Colour: Black/Red and Numbered 1, Black/White and Number 2, Black/Green and
Number 3, Black/Blue and Number 4. Other colours are available upon your request.
Electrical & Mechanical Characteristics
AWG | 6 | |
Conductor Construction | 7x24 | |
Nominal Conductor DC Resistance @20℃ | Ω/km | 14 |
Nominal Outer Shield DC Resistance @ 20℃ | Ω/km | 13 |
Voltage Rating | V | 300 |
Bending Radius | 11xOverall Diameter | |
Operating Temperature | ℃ | -40~90 |
Dimensions
Ordering Code | No. of pairs | Insulation Thickness | Sheath Thickness | Overall Diameter |
mm | mm | mm | ||
BE1126503V SWA | 4 | 0.7 | 1.7 | 21.8 |
